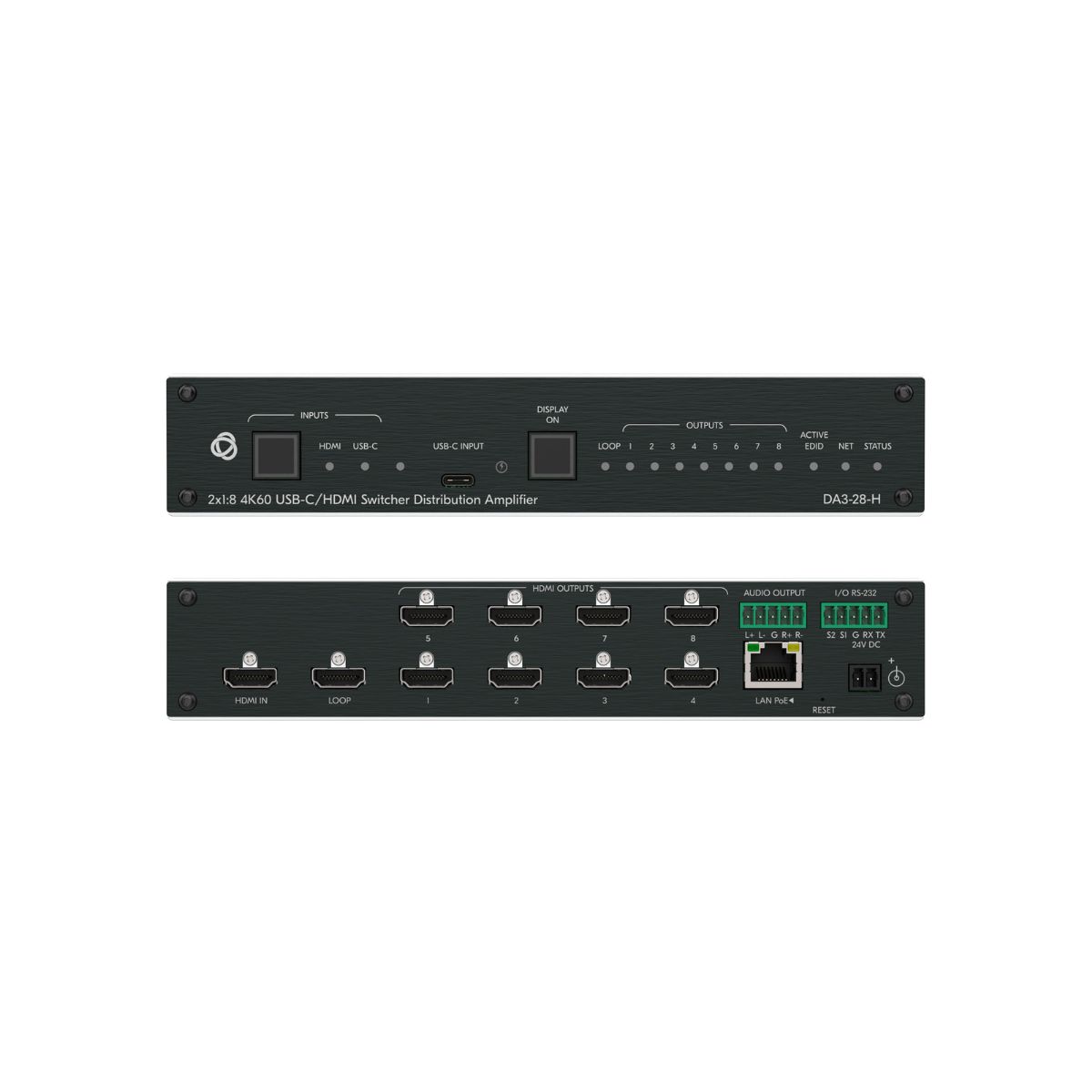

DA3-28-H

DA3−28−H is a premium 2x1:8 switcher and distribution amplifier for up to 4K HDR video signals that comply with the HDCP 2.2 content protection standard. The unit switches between one of two inputs, HDMI or USB−C, equalizes and re−clocks the selected signal, and distributes it to eight identical outputs.

Contact to Seller
  • Combined 2:1 switcher and 1:8 distributor amplifier
  • HDMI and USB–C video inputs
  • Automatic downscaling capability
  • Fully managed (WEB GUI/P3K protocol)
  • Resolution — Up to 4K@60Hz (4:4:4)
  • Analog audio extraction
  • Compliance — HDR10, HDCP 2.2
  • Simple, intelligent EDID operation
  • Force RGB
  • HDCP authorization control
  • PoE powered
Download Product catalog

Inputs
  • 1 HDMI: On an RJ–45 female connector

  • 1 USB-C: On a USB type–C female connector

Outputs
  • 8 HDMI: On female HDMI connectors


Ports
  • 1 1000BaseT Ethernet: On an RJ–45 female connector for LAN connection & extension

  • Analog Audio: On a 5–pin R–L analog audio output

Video
  • Max Bandwidth: 18Gbps (6Gbps per graphic channel)

  • Max Resolution: 4K@60Hz 4:4:4 24bpp resolution

  • Content Protection: HDCP 2.3

  • Compliance: HDMI 2.0b

Security
  • Web-UI Communication: HTTPS

  • User Access: Multiple roles and credentials

  • IT LAN Authentication: 802.1x

  • Penetration Protection Certification: OWASP–10

Power
  • Source: 24 VDC

  • Max Consumption: 79W

  • Max Power Providing Per HDMI Port: 2.5W (5V@0.5A)

Environmental Conditions
  • Operating Temperature: 0° to +40°C (32° to 104°F)

  • Storage Temperature: –40° to +70°C (–40° to 158°F)

  • Humidity: 10% to 90%, RHL non–condensing

Regulatory Compliance (Standards Compliance)
  • Safety: CE, FCC, UL

  • Environmental: RoHS, WEEE

Enclosure
  • Type: Half–U 19"

  • Type: Aluminum

  • Cooling: Low-noise fan
