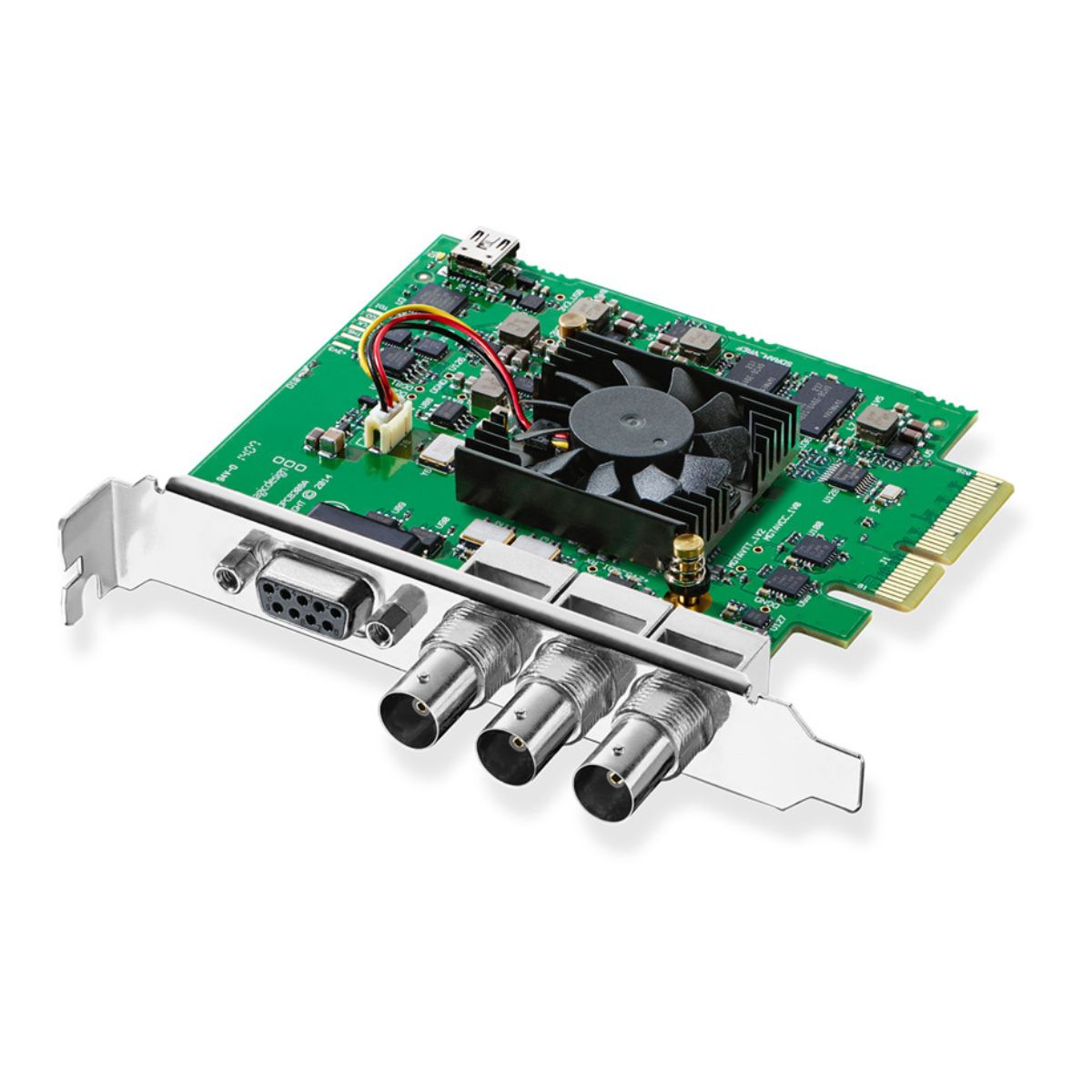

DeckLink SDI 4K
DeckLink SDI 4K is perfect when you need an SDI-only solution but demand the highest quality SDI capture and playback. You get incredible quality 6G-SDI on any PCI Express Mac, Windows, or Linux computer. DeckLink SDI 4K is the world’s lowest and most affordable multi-rate SD/HD and Ultra HD SDI video card that lets you connect to any SD, HD-SDI, 2K, and Ultra HD equipment. You also get RS-422 deck control, internal keying, and reference input for a complete solution for editing, painting, designing, and more.

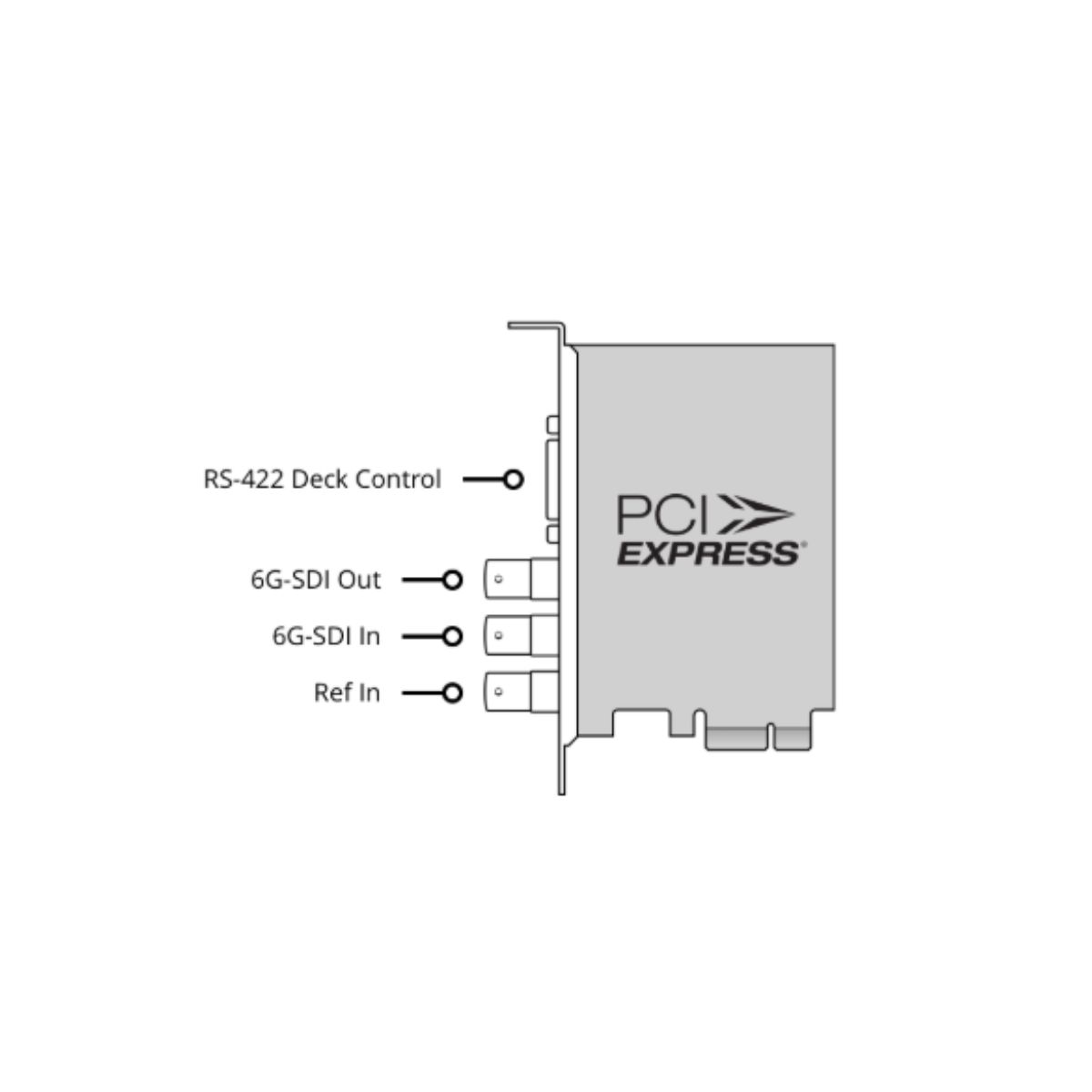

Connections
|
SDI Video Inputs |
1 x 10-bit SD/HD/2K/4K. Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4. |
|
SDI Video Outputs |
1 x 10-bit SD/HD/2K/4K. Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4. |
|
SDI Audio Inputs |
16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD. |
|
SDI Audio Outputs |
16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD. |
|
Sync Input |
Tri-Sync or Black Burst. |
|
Device Control |
Sony™ compatible RS422 deck control ports. Serial ports are TxRx direction-reversible under software control. |
Processing
|
HD Down Conversion |
Built-in, high-quality hardware down converter outputs HD or SD on SDI output. Selectable between letterbox, anamorphic 16:9, and center cut 4:3 styles. |
|
HD Up Conversion |
Built-in, high-quality software up converter from SD to HD on input. Selectable between 16:9 Zoom and anamorphic. |
|
Cross Conversion |
Software-based cross conversion from 720HD to 1080HD and 1080HD to 720HD on playback. |
|
Real Time Effects |
DaVinci Resolve, Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. |
