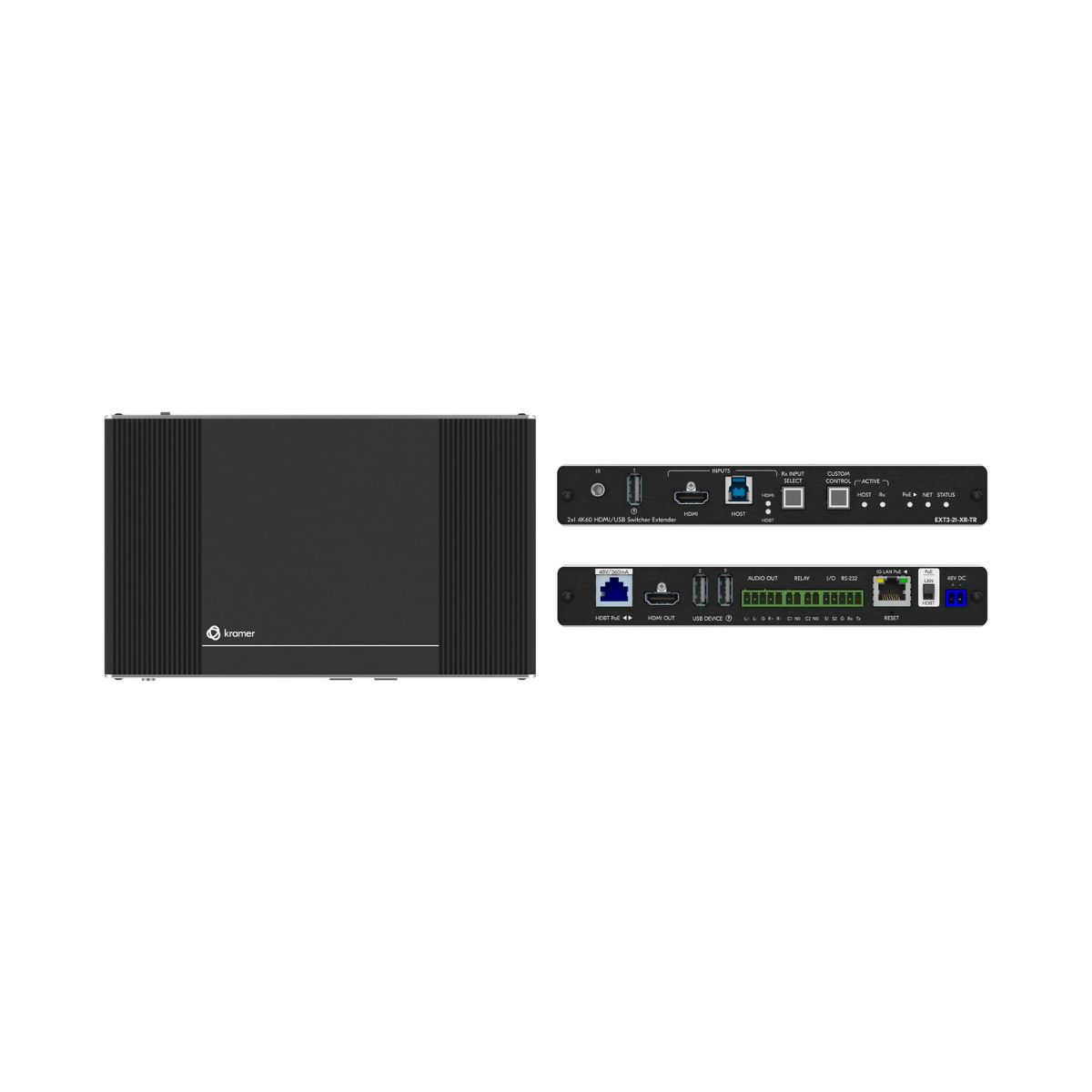

EXT3-21-XR-TR

EXT3−21−XR−TR is a high−performance, extended−reach HDBaseT 3.0 extender for 4K60Hz (4:4:4) HDMI, USB, Ethernet, RS−232, and IR signals over twisted pair, flexibly set as transmitter−side or receiver−side device. EXT3−21−XR−TR transmitter−side converts all input signals into the transmitted HDBaseT 3.0 signal, and extends uncompressed video signals to up 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:4:4) video resolution.

Contact to Seller
  • 4K60 4:4:4 AV and USB coupled–signals switching and extension
  • K–Pair Auto–Switching Capability
  • Flexible — transmitter or Switcher Receiver
  • 2–way PoE powering
  • Built–in intelligent control gateway
  • Secured remote control and management
Download Product catalog

Inputs
  • Receiver Side:
    1 HDBT: On an RJ–45 connector
  • 1 HDMI: On an HDMI Connector

Outputs
  • Transmitter Side:
    1 HDBT: On an RJ–45 connector
  • Transmitter Side:
    1 HDMI Loop: On an HDMI connector
  • Receiver Side:
    1 HDMI: On an HDMI connector
  • Transmitter or Receiver Side:
    1 Balanced Stereo Audio Line: On a 5–pin terminal block connector

Ports
  • 1 USB 3.2 (Host): On a USB–B female connector
  • 3 USB 3.2 (Device): On USB type–A female connectors
  • 1 LAN PoE 1000BaseT Ethernet: On an RJ–45 female connector, for LAN connection

Extension Line
  • Reach: Up to 100m (330ft), using Kramer HDBaseT cables
  • Reach: Up to 100m (330ft) for 1080p@60hz, using Kramer HDBaseT cables
  • Standards Compliance: HDBaseT 3.0

Video
  • Max Data Rate: 18Gbps bandwidth (6Gbps per graphic channel)
  • Max Resolution: 4K@60Hz (4:4:4) 24bpp resolution
  • Content Protection: HDCP 2.3
  • HDMI Support: 4K, as specified in HDMI 2.0b
  • Receiver-side Max Inputs Switching Time: HDMI to HDBT: 5sec, HDBT to HDMI: 8 sec

USB Features
  • USB 3.2 Data Rate: Up to 10Gbps
  • Integrated USB Hubs: 1
  • Standards Compliance: USB 3.2 GEN 2, 2.0, and 1.1
