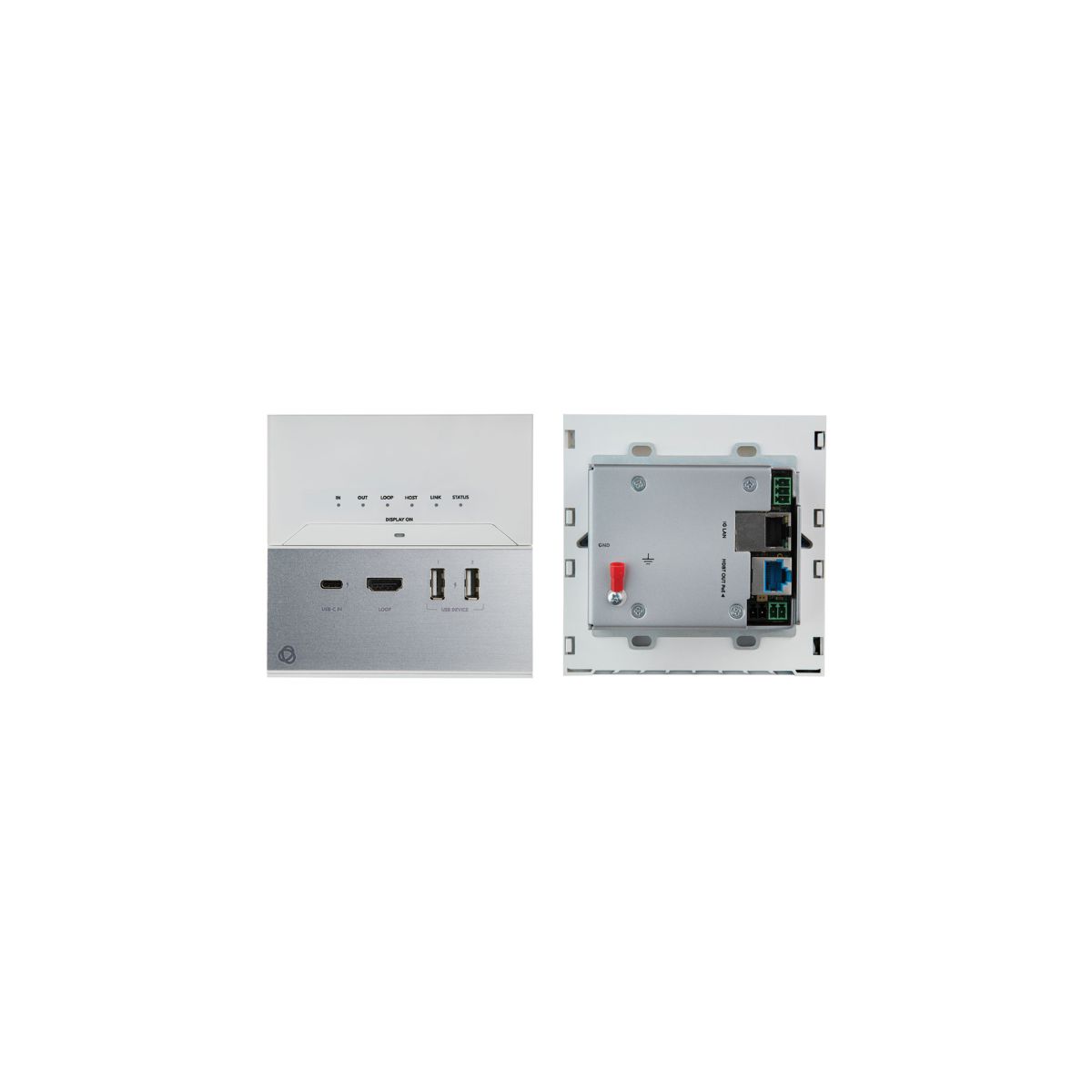

EXT3-C-WP-XR-T

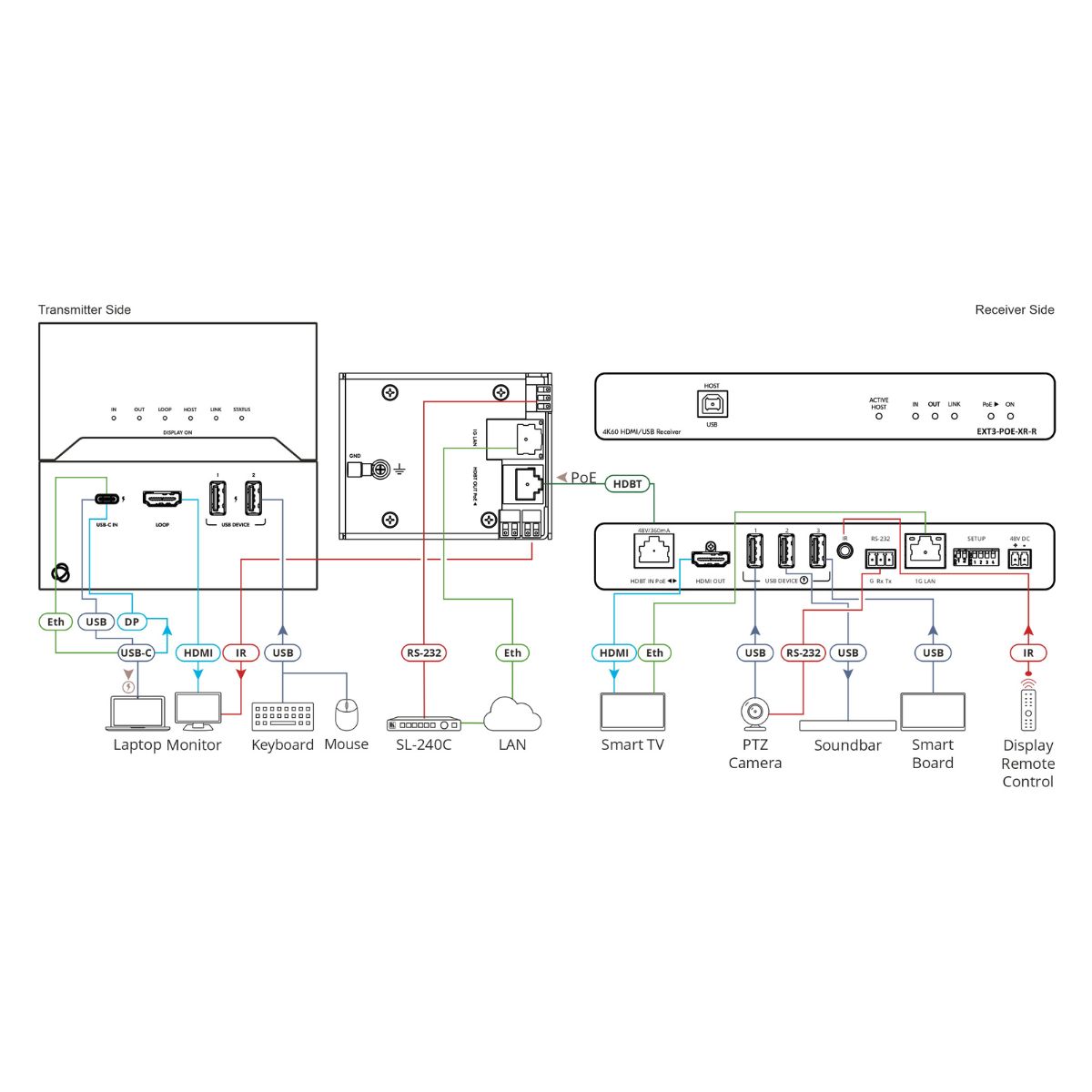

EXT3−C−WP−XR−T USB−C transmitter is a high−performance, extended−reach HDBaseT 3.0 transmitter for 4K60Hz (4:4:4) HDMI, USB, Ethernet, RS−232, and IR signals over twisted pair. The EXT3−C−WP−XR−T transmitter converts all input signals into the transmitted HDBaseT 3.0 signal and extends it over HDBT to a compatible receiver. The EXT3−C−WP−XR−T transmitter accepts power over the copper extension cable from a PoE provider remote device.

Contact to Seller
  • Uncompressed 4K@60Hz (4:4:4) HDMI & USB 2.0 extension
  • Full USB–C docking with up to 60W charging
  • WW wall–plate offering
  • Up to 100m (330ft) reach
  • PoE acceptor

Inputs

  • 1 DP Alt Mode & PD 3.0 USB-C: On a USB Type–C female connector

Outputs

  • 1 HDBT: On a female RJ–45 connector
  • 1 LOOP HDMI: On a female HDMI connector
  • 1 IR: On a 2–pin Terminal Block Connector

Ports

  • 2 USB 2.0: On USB device type–A female connectors
  • 1 Gbps LAN: On an RJ–45 female connector
  • 1 RS–232: On a 3–pin terminal block for serial extension

USB Features

  • Integrated USB Hubs: 1

Extension Line

  • Reach: Up to 90m (295ft)
  • Note: When using Kramer HDBaseT cables
  • Standards Compliance: HDBaseT 3.0

Video

  • Max Data Rate: 18Gbps bandwidth (6Gbps per graphic channel)
  • Max Resolution: 4K@60Hz (4:4:4) 24bpp resolution
  • Content Protection: HDCP 2.3
  • HDMI Support: 4K as specified in HDMI 2.0b
