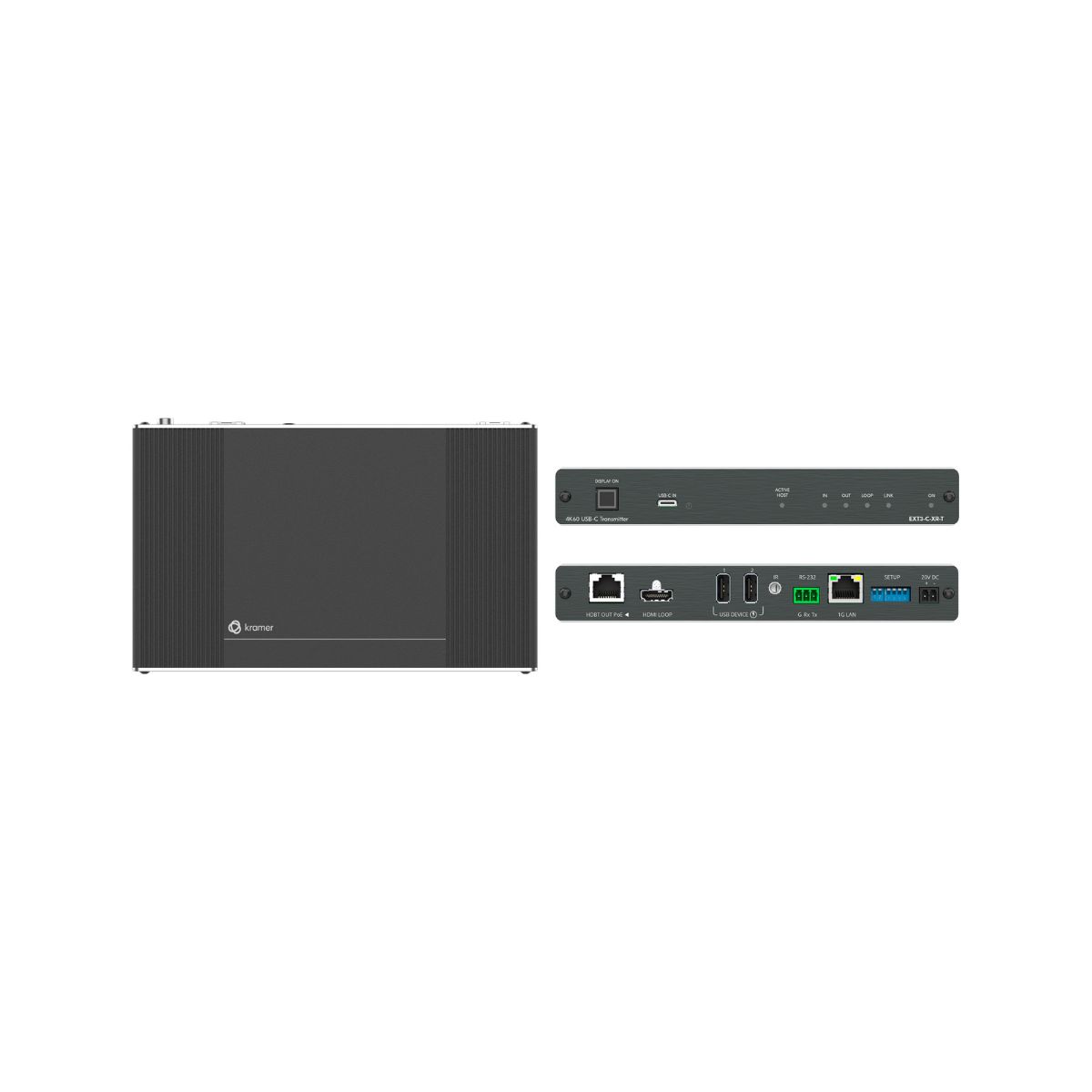

EXT3-C-XR-T

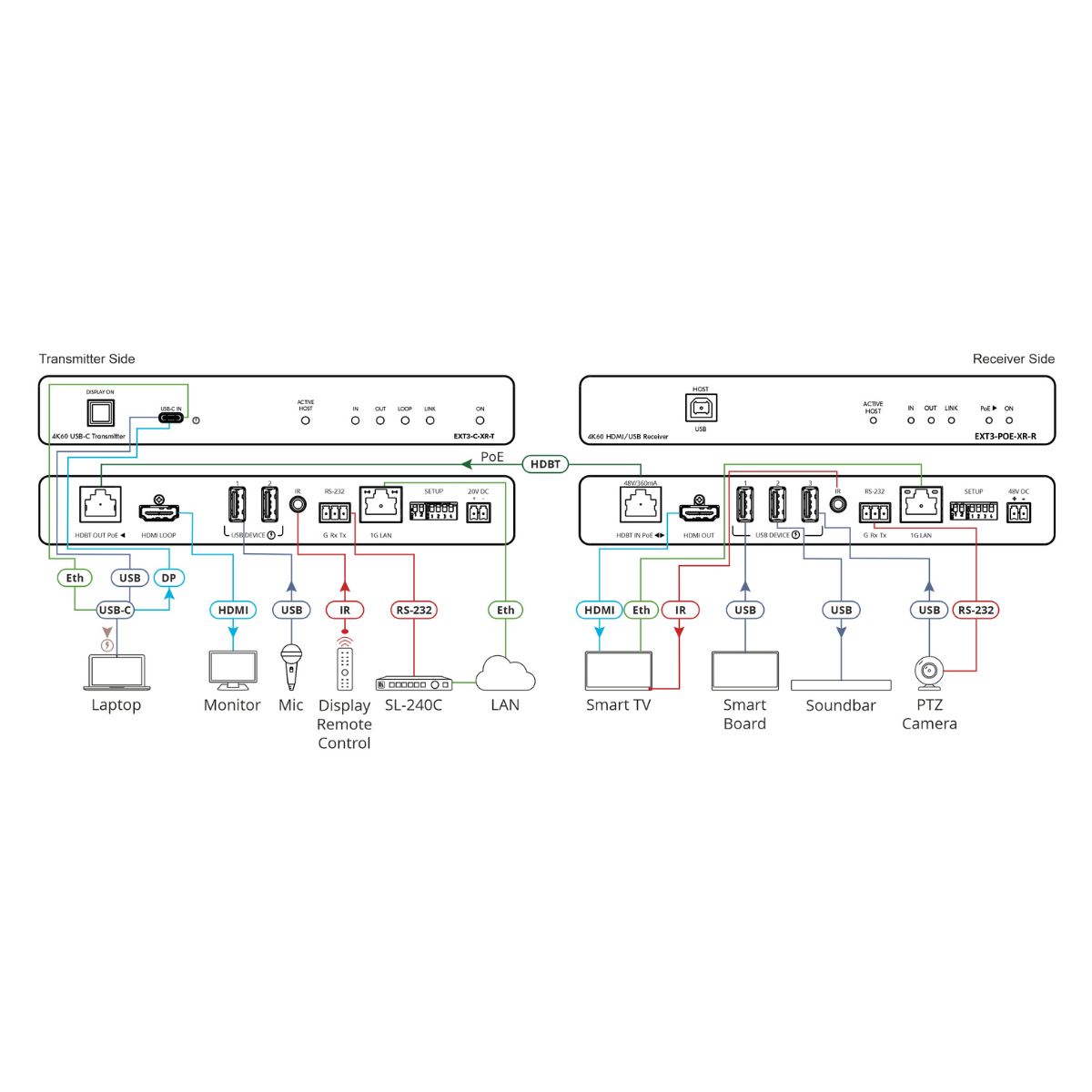

EXT3−C−XR−T is a high−performance, extended−reach HDBaseT 3.0 transmitter, with a USB−C input, for 4K60Hz (4:4:4) HDMI, USB, Ethernet, RS−232, and IR signals over twisted pair. The EXT3−C−XR−T transmitter converts all input signals into the transmitted HDBaseT 3.0 signal. It extends video signals to up to 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:4:4) video resolution.

Contact to Seller
  • Uncompressed 4K@60Hz (4:4:4) HDMI & USB 2.0 extension
  • USB–C input with up to 60W charging
  • 1Gbps Ethernet extension
  • Up to 100m (330ft) reach
  • PoE acceptor

Inputs
  • 1 DP Alt Mode & PD 3.0 USB-C: On a USB Type–C female connector

Outputs
  • 1 HDBT: On an RJ–45 female connector
  • 1 LOOP: On an HDMI female connector

Ports
  • 2 USB 2.0 Device: On USB type–A female connectors
  • 1 1000BaseT Ethernet: On an RJ–45 female connector for LAN extension
  • 1 IR: On a 3.5mm mini jack for IR extension
  • 1 RS–232: On a 3–pin terminal block for serial extension

USB Features
  • Integrated USB Hubs: 1

Extension Line
  • Reach: Up to 100m (330ft)
  • Reach: Note: When using Kramer HDBaseT cables
  • Standards Compliance: HDBaseT 3.0

Video
  • Max Data Rate: 18Gbps bandwidth (6Gbps per graphic channel)
  • Max Resolution: 4K@60Hz (4:4:4) 24bpp resolution
  • Content Protection: HDCP 2.3
