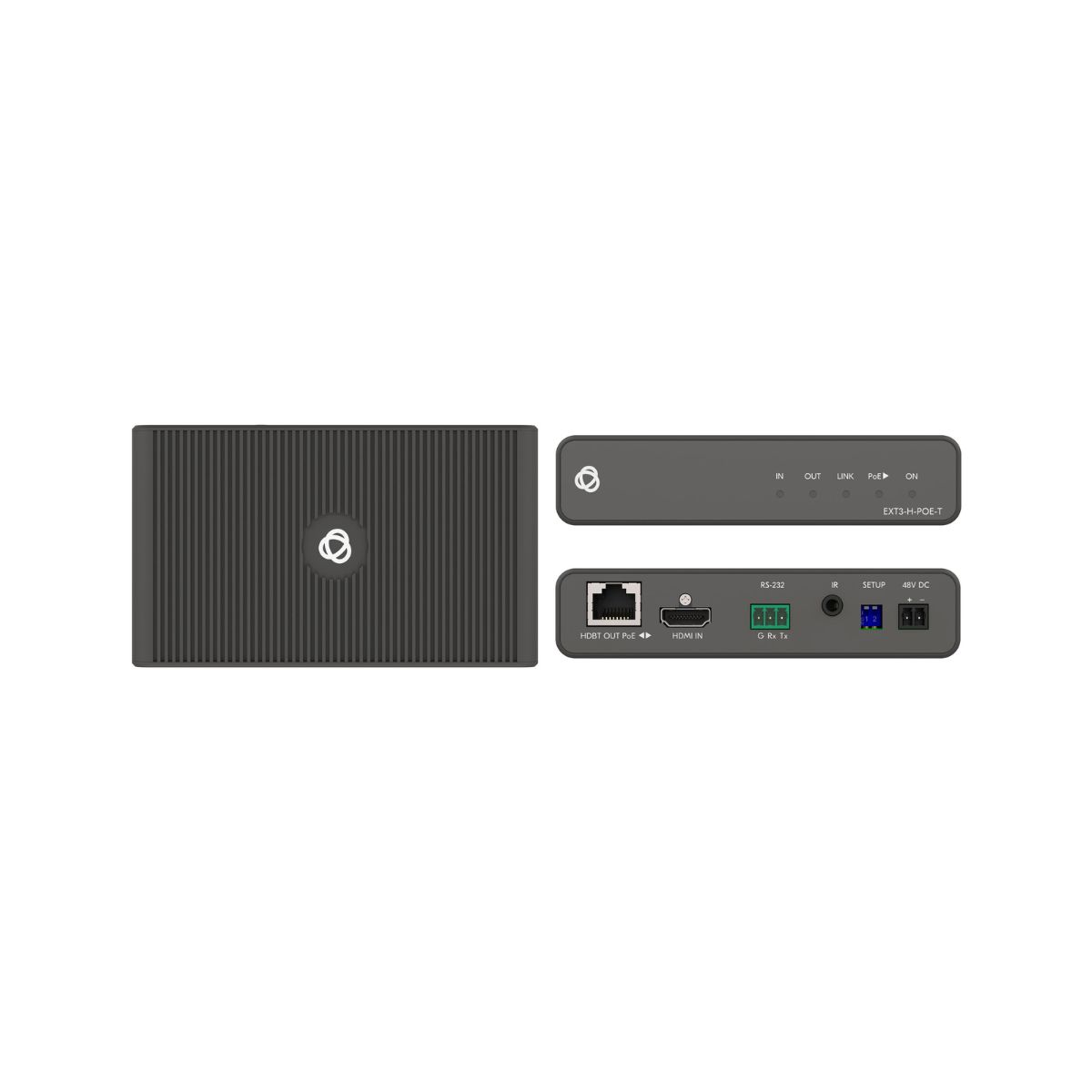

EXT3-H-POE-T

EXT3−H−POE−T is a high−performance, long−reach HDBaseT 3.0 transmitter for 4K60 4:4:4 HDR HDMI, RS−232 and IR signals over twisted pair. EXT3−H−T converts the HDBaseT 3.0 signal and outputs it to its HDMI and control ports. It enables extending video signals to up to 40m (230ft) over Kramer copper cables at up to 4K@60Hz (4:4:4) video resolutions. It is compatible with standard HDBaseT−compliant extenders at up to 4K@60Hz 4:4:4 video resolutions.

Contact to Seller
  • HDBaseT 3.0 transmitter
  • Up to 40m (130ft) at 4K@60Hz (4:4:4)
  • Up to 70m (230ft) at up to 4K@30Hz (4:4:4) or 1080P
  • Symmetrical PoE
  • Bidirectional RS–232 & IR control extension

Inputs
  • 1 HDMI: On a female HDMI connector

Ports
  • HDBaseT 3.0: Output port
  • 1 RS-232: On a 3–pin terminal block connector for serial link extension
  • 1 IR: On a 3.5mm mini jack connector

Extension Line
  • Standard Compression: Up to 40m (130ft) at 4K@60Hz (4:4:4)
  • High Compression: Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)
  • Standards Compliance: HDBaseT 3.0
  • Note: When using the recommended Kramer cables

Video
  • Max Data Rate: Up to 18Gbps (6Gbps per graphic channel)
  • Compliance: HDCP 2.3, HDR 10
  • HDMI Support: Deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0b

EXTENDED BIDIRECTIONAL RS-232
  • 300 to 115200 baud rate

EXTENDED BIDIRECTIONAL IR
  • 20kHz to 100kHz frequency
