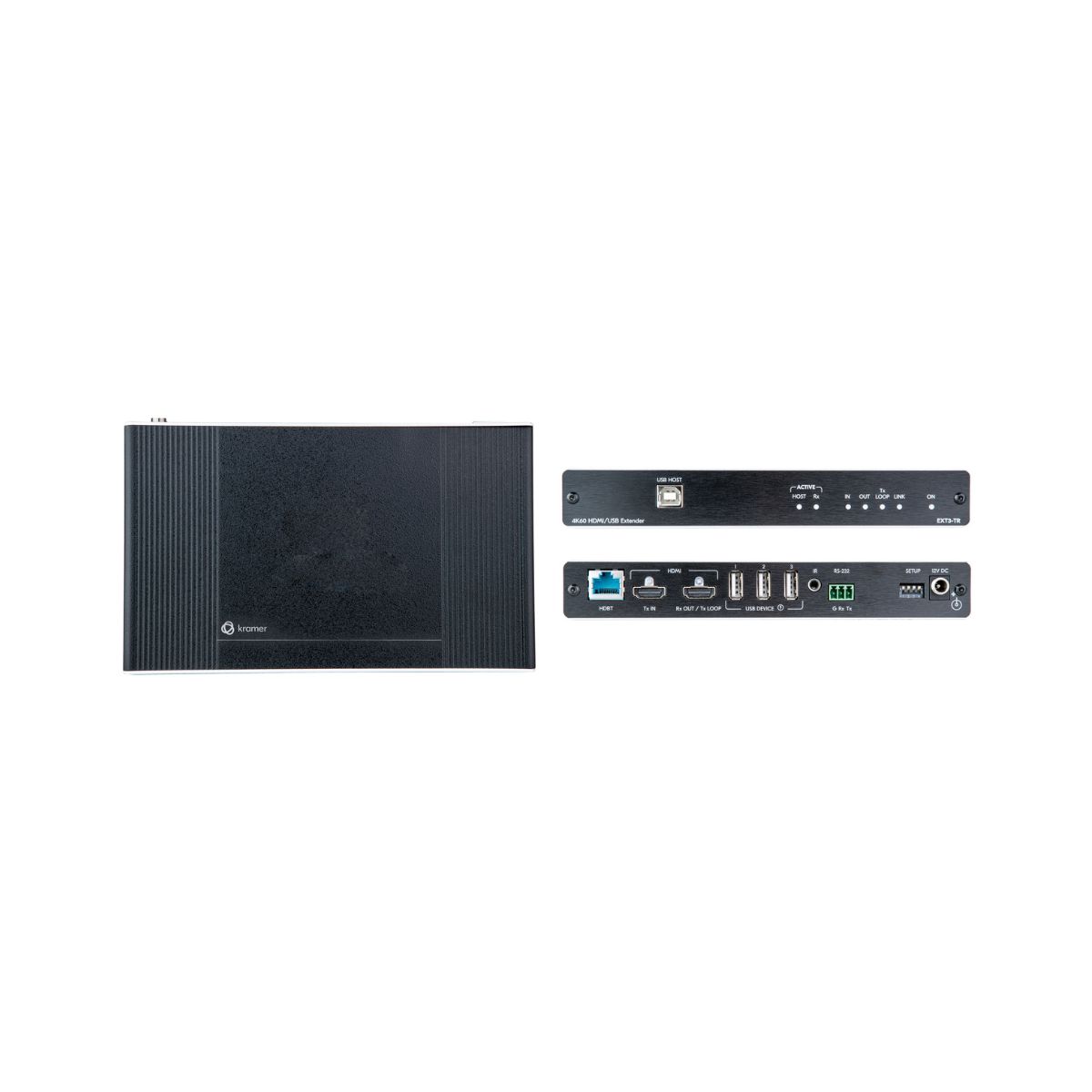

EXT3-TR

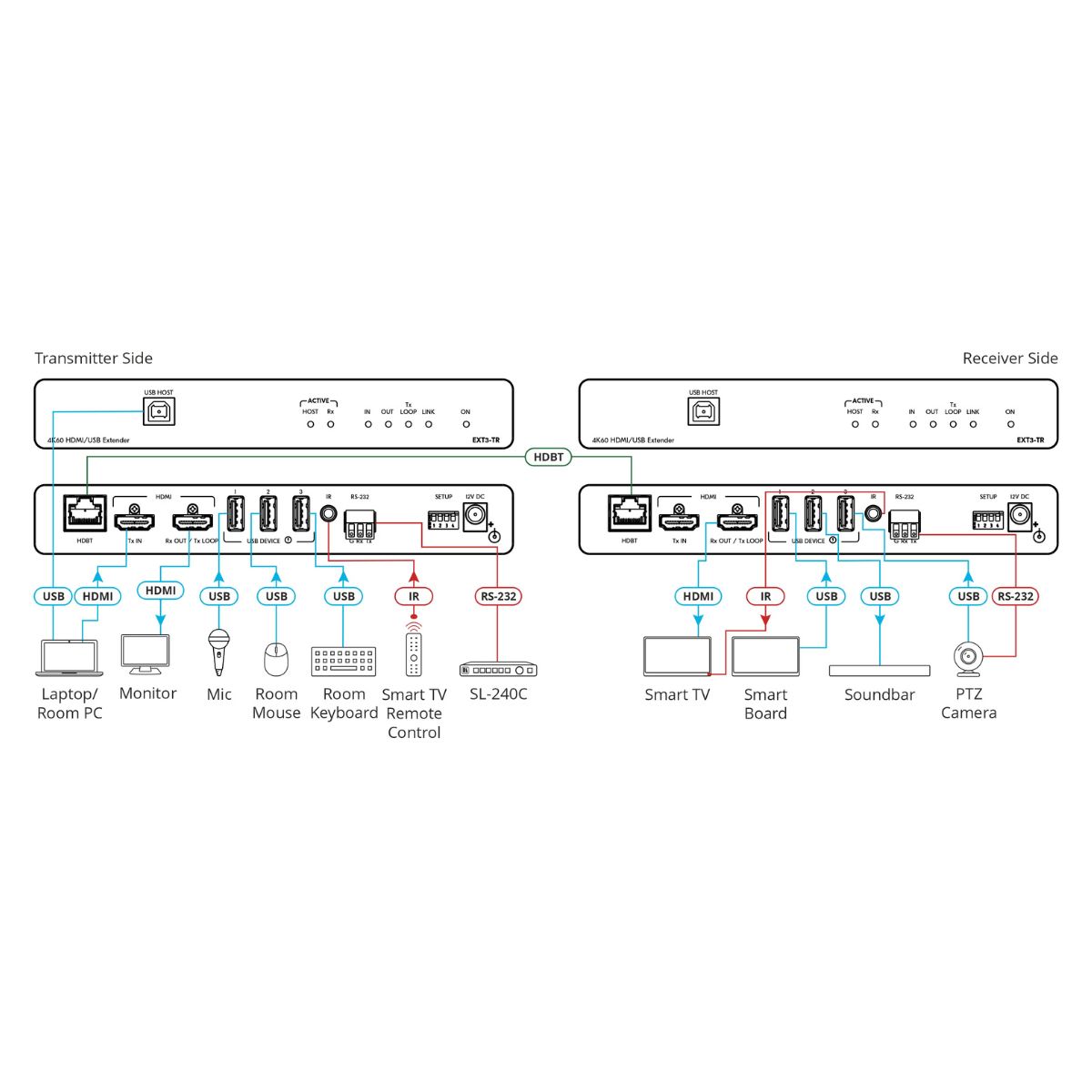

EXT3−TR is a high−performance, long−reach HDBaseT 3.0 extender for 4K60Hz (4:4:4) HDMI, USB, RS−232, and IR signals over twisted pair, flexibly set as a transmitter−side or receiver−side device. The EXT3−TR transmitter−side converts all input signals into the transmitted HDBaseT 3.0 signal. EXT3−TR receiver−side receives the HDBaseT 3.0 signal and converts it back into the original input signals. It extends video signals up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:4:4) video resolution.

Contact to Seller
  • Uncompressed 4K@60Hz (4:4:4) HDMI extension
  • Flexible USB 2.0 host & devices extension
  • Up to 40m (130ft) at 4K@60Hz (4:4:4)
  • Up to 70m (230ft) at 4K@30Hz (4:4:4)

Inputs
  • TRANSMITTER–SIDE INPUTS
  • 1 HDMI: On a HDMI female connector
  • RECEIVER–SIDE INPUTS
  • 1 HDBT: On an RJ–45 female connector

Outputs
  • TRANSMITTER–SIDE OUTPUTS
  • 1 HDBT: On an RJ–45 female connector
  • 1 LOOP: On a HDMI female connector
  • RECEIVER–SIDE OUTPUTS
  • 1 HDMI: On a HDMI female connector

Ports
  • 1 USB 2.0 Host: On a USB–B female connector
  • 3 USB 2.0 Device: On USB type–A female connectors
  • 1 IR: On a 3.5mm mini jack for IR link extension
  • 1 RS–232: On a 3–pin terminal block for serial link extension

USB Features
  • Integrated USB Hubs: 1

Extension Line
  • Up to 40m (130ft): At 4K@60Hz (4:4:4)
  • Up to 70m (230ft): At up to 4K@30Hz (4:4:4)
  • Up to 70m (230ft): At 1080p@60hz
  • Note: When using Kramer HDBaseT cables
  • Standards Compliance: HDBaseT 3.0

Video
  • Max Data Rate: 18Gbps bandwidth (6Gbps per graphic channel)
  • Max Resolution: 4K@60Hz (4:4:4) 24bpp resolution
  • Content Protection: HDCP 2.3
  • HDMI Support: 4K as specified in HDMI 2.0b
