EXT3-U-KIT

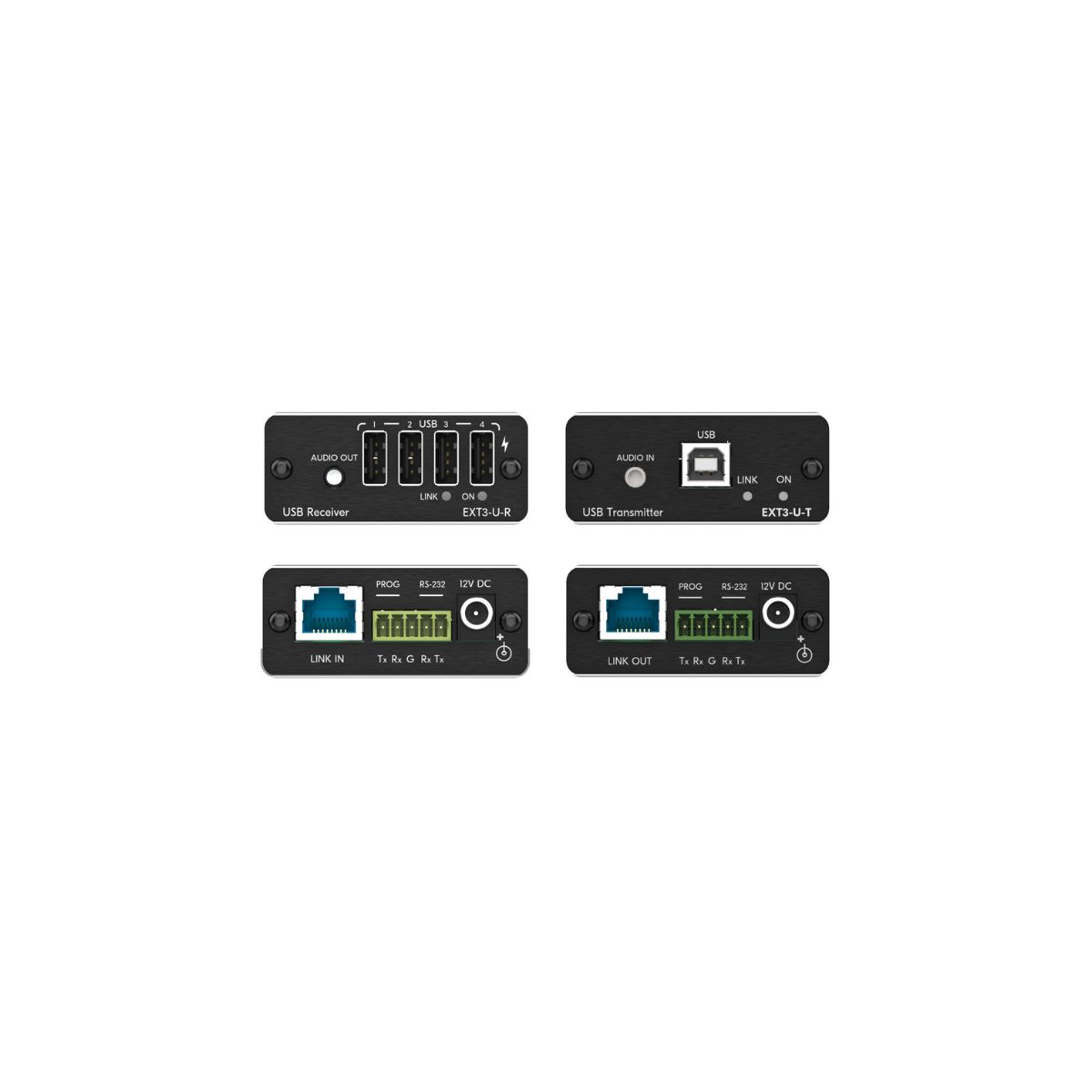

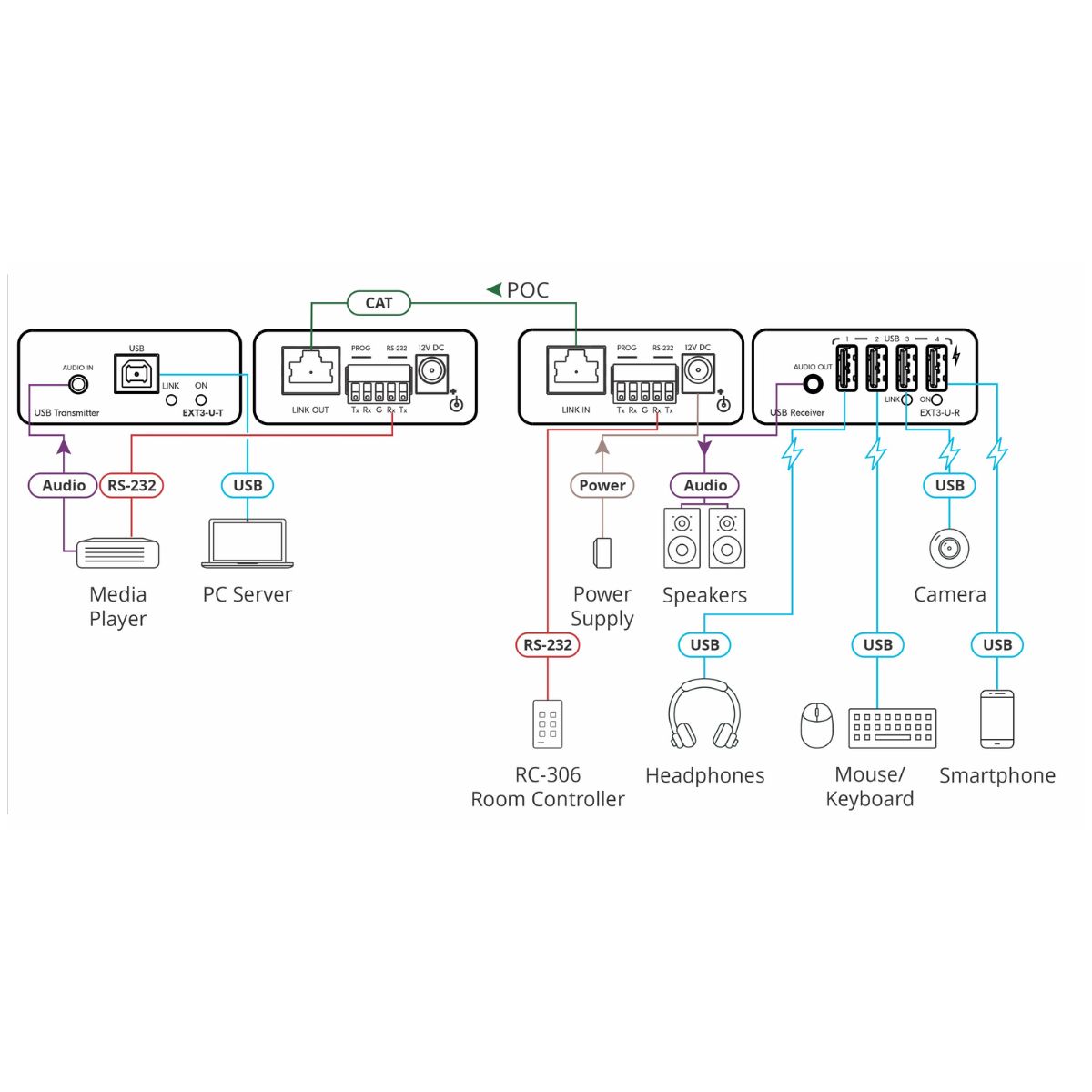

EXT3−U−KIT is a comprehensive, extended−reach CAT extender kit for USB 2.0, RS−232 and audio signals and 2−way powering over twisted pair. The EXT3−U−T transmitter converts the USB input signal into a CAT signal. The EXT3−U−R receiver converts the transmitted CAT signal into a USB signal

Contact to Seller
  • 4–port USB 2.0 100m (330ft) extender kit
  • Fast remote device charging
  • Two–way powering
  • Compact

Inputs
  • 1 CAT: On an RJ–45 female connector for extension line (EXT3–U–R)
  • 1 Stereo Analog Unbalanced Audio: On a 3.5mm mini jack connector for audio extension (EXT3–U–T)

Outputs
  • 1 CAT: On an RJ–45 female connector for extension line (EXT3–U–T)
  • 1 Stereo Analog Unbalanced Audio: On a 3.5mm mini jack connector for audio extension (EXT3–U–R)

Ports
  • 1 USB: On a USB–B female connector for USB host extension (EXT3–U–T)
  • 4 USB: On USB–A female connectors for USB devices extension (EXT3–U–R)
  • 1 RS–232: On a 3–pin terminal block connector for serial link extension

USB Features
  • Integrated USB Hubs: Rx: 1
  • Includes: 1 12V power–supply, 1 C–USB/AB–6 USB type–A male to USB type–B male 2m cable

Extended USB
  • Data Rate: Up to 480Mbps
  • Transmitted Data Bandwidth: Up to 300Mbps
  • Standards Compliance: 1.1 and 2.0 USB

Extension Line
  • Integrated USB Hubs: Rx: 1
  • Reach Using Shielded UNIKAT Cables: Up to 100m (330ft)
