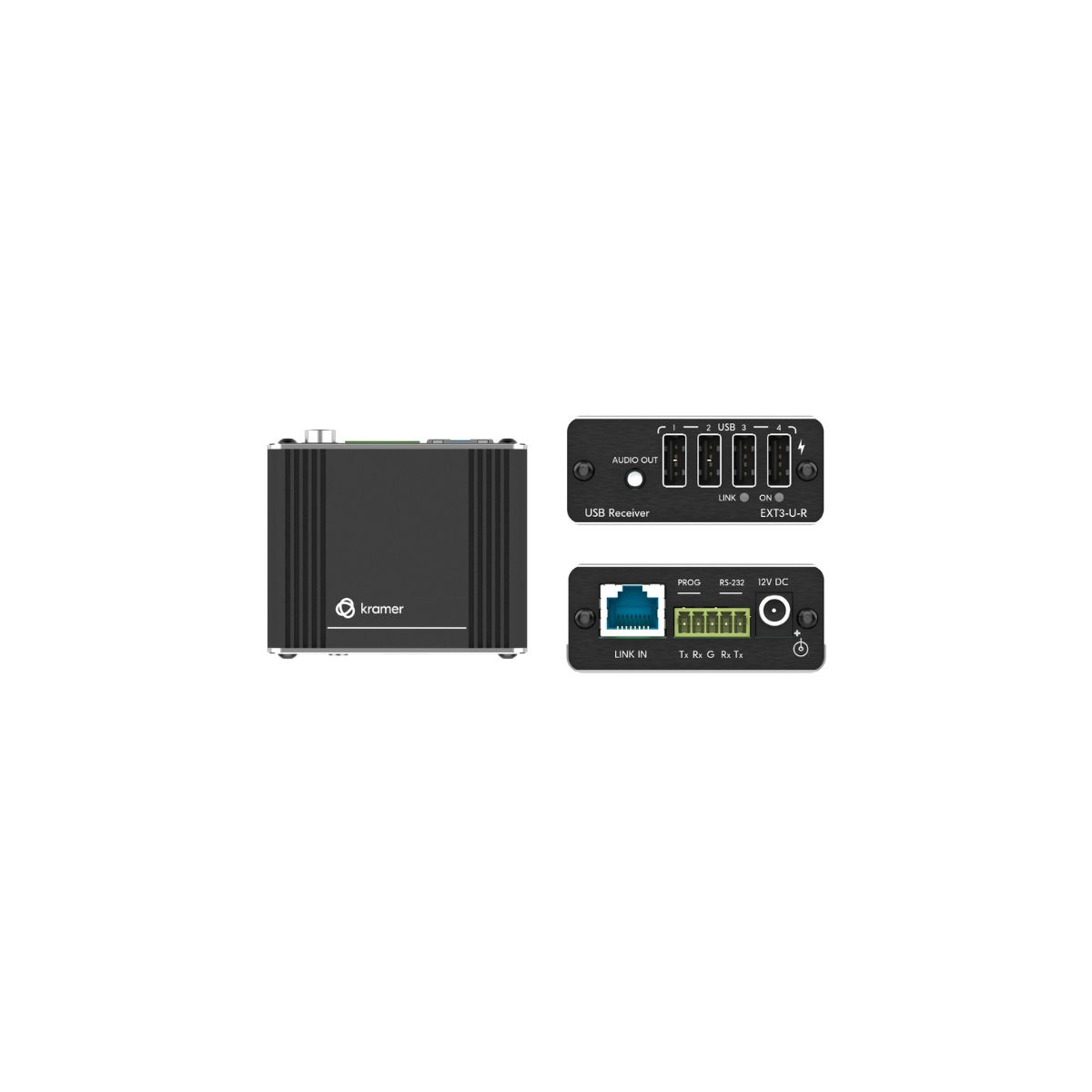

EXT3-U-R

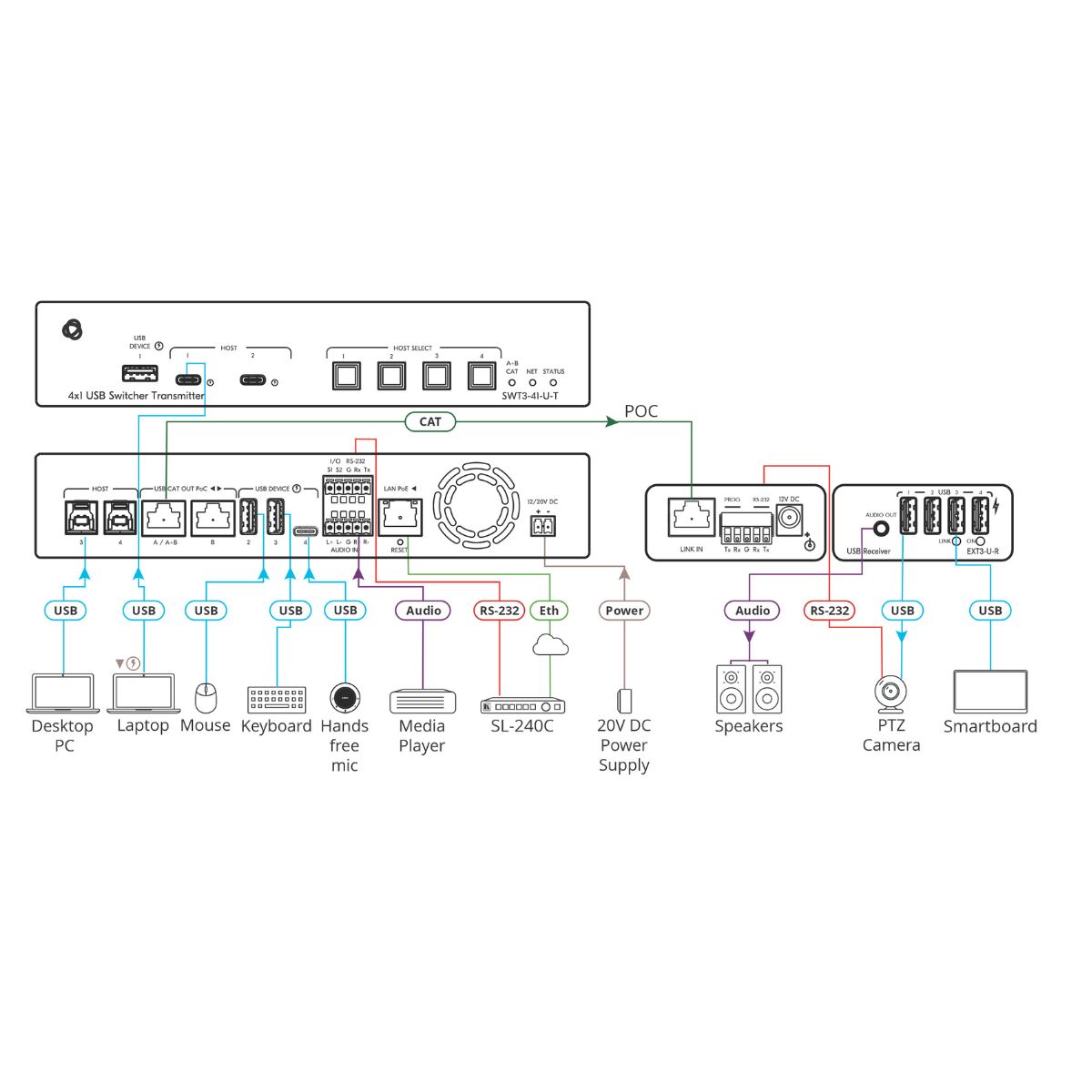

EXT3−U−R is a comprehensive 2−way powering USB 2.0 receiver over an extended−reach twisted pair CAT cable. The receiver converts the transmitted CAT signal into USB 2.0, RS−232, and audio signals.

Contact to Seller
  • 4–port remote USB devices
  • USB 2.0 100m (330ft) receiver
  • Two–way PoC powering
  • Compact
Download Product catalog

Inputs
  • 1 CAT: On an RJ–45 female connector for extension line

Outputs
  • 1 Stereo Analog Unbalanced Audio: On a 3.5mm mini jack connector for audio extension

Ports
  • 4 USB 2.0 Devices: On USB–A female connectors
  • 1 RS–232: On a 3–pin terminal block

Extension Line
  • Reach: Up to 100m (330ft)
  • Note: Using Kramer cables

Extended USB
  • Data Rate: Up to 480Mbps
  • Integrated USB Hubs: 1
  • Transmitted Data Bandwidth: Up to 300Mbps
  • Standards Compliance: USB 2.0 and 1.1

Power
  • Power Adapter:
    Source: 12V DC, 2A
  • Consumption: 12V DC, 1500mA
  • USB Device Charging
    Max. Total Current: 2A
