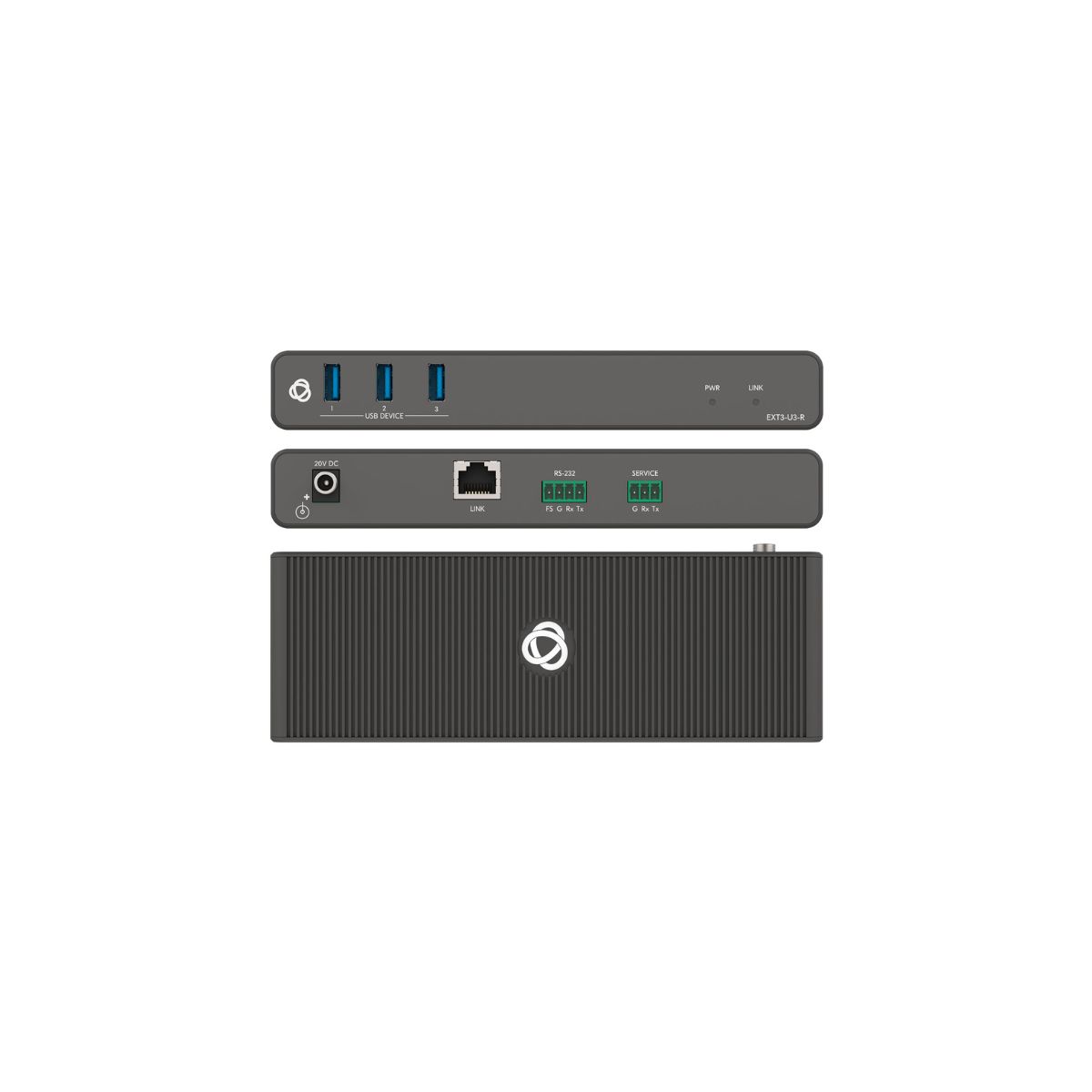

EXT3-U3-T/R

EXT3−U3−T/EXT3−U3−R is a comprehensive, extended−reach CAT extender solution for USB 3.2 Gen1 (5 GBps) communication. The extender supports both USB3.2 Gen1 devices and legacy USB2.0/1.1 devices. In addition to USB3, RS232 signals and FSYNC video signal (for camera frame synchronization) are extended.

Contact to Seller
  • Extra reach (100 m) Extender for USB3.2 Gen1 device side
  • USB Hub functionality
  • Three device ports at the receiver unit
  • RS232 and FSYNC signals passthrough extension
  • PoE+ powered device
  • Demi Tool form factor

Inputs
  • 1 CAT: On an RJ–45 female connector for extension line (EXT3–U–R)

Outputs
  • 1 CAT: On an RJ–45 female connector for extension line (EXT3–U–T)

Ports
  • 1 USB: On a USB–B female connector for USB host extension (EXT3–U–T)
  • 3 USB: On USB–A female connectors for USB devices extension (EXT3–U–R)
  • 1 RS–232: On a 3–pin terminal block connector for serial link extension

USB Features
  • Integrated USB Hubs: Rx: 1

Traffic Rate
  • 5 GBps

Extension Link
  • HDBaseT USB over CATx
