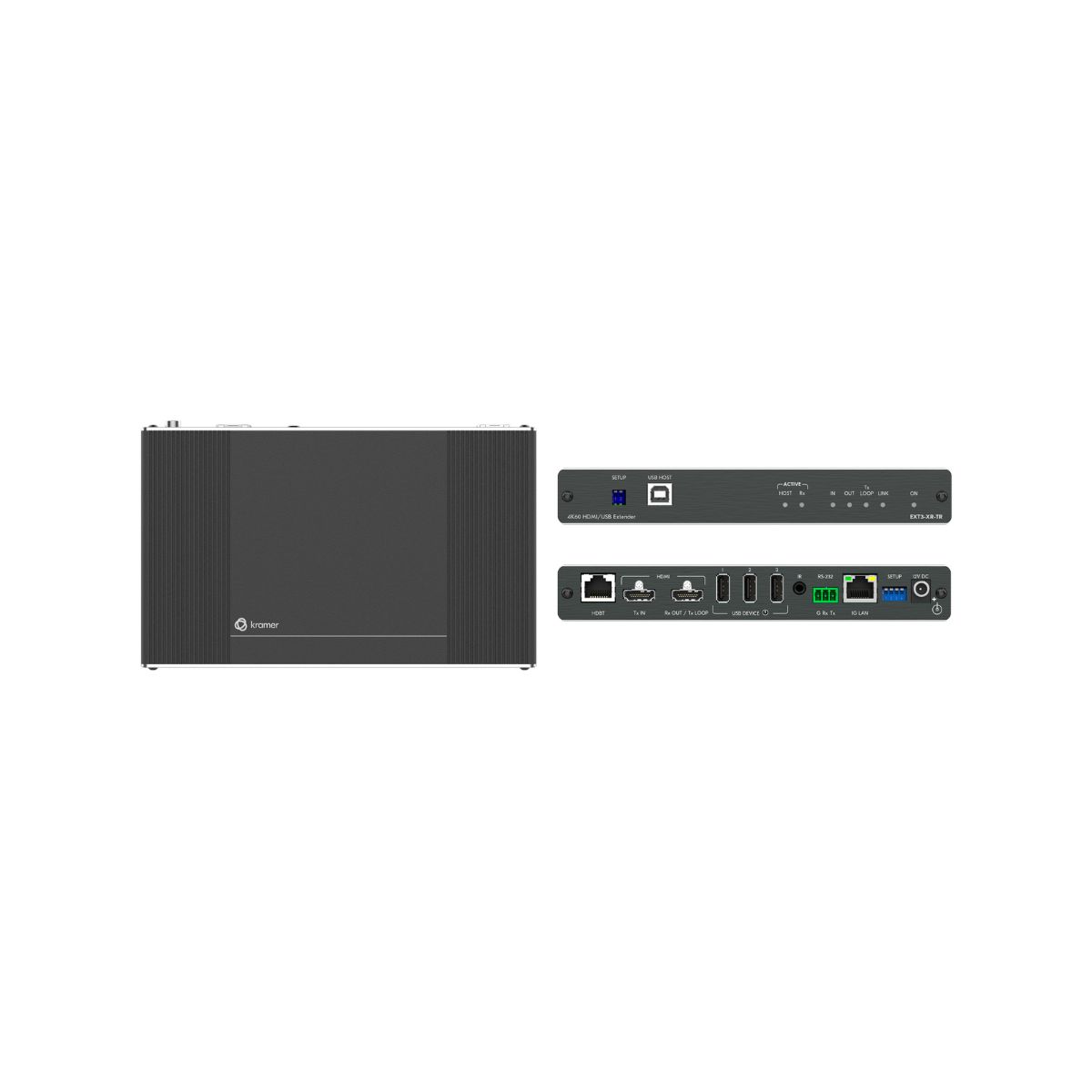

EXT3-XR-TR

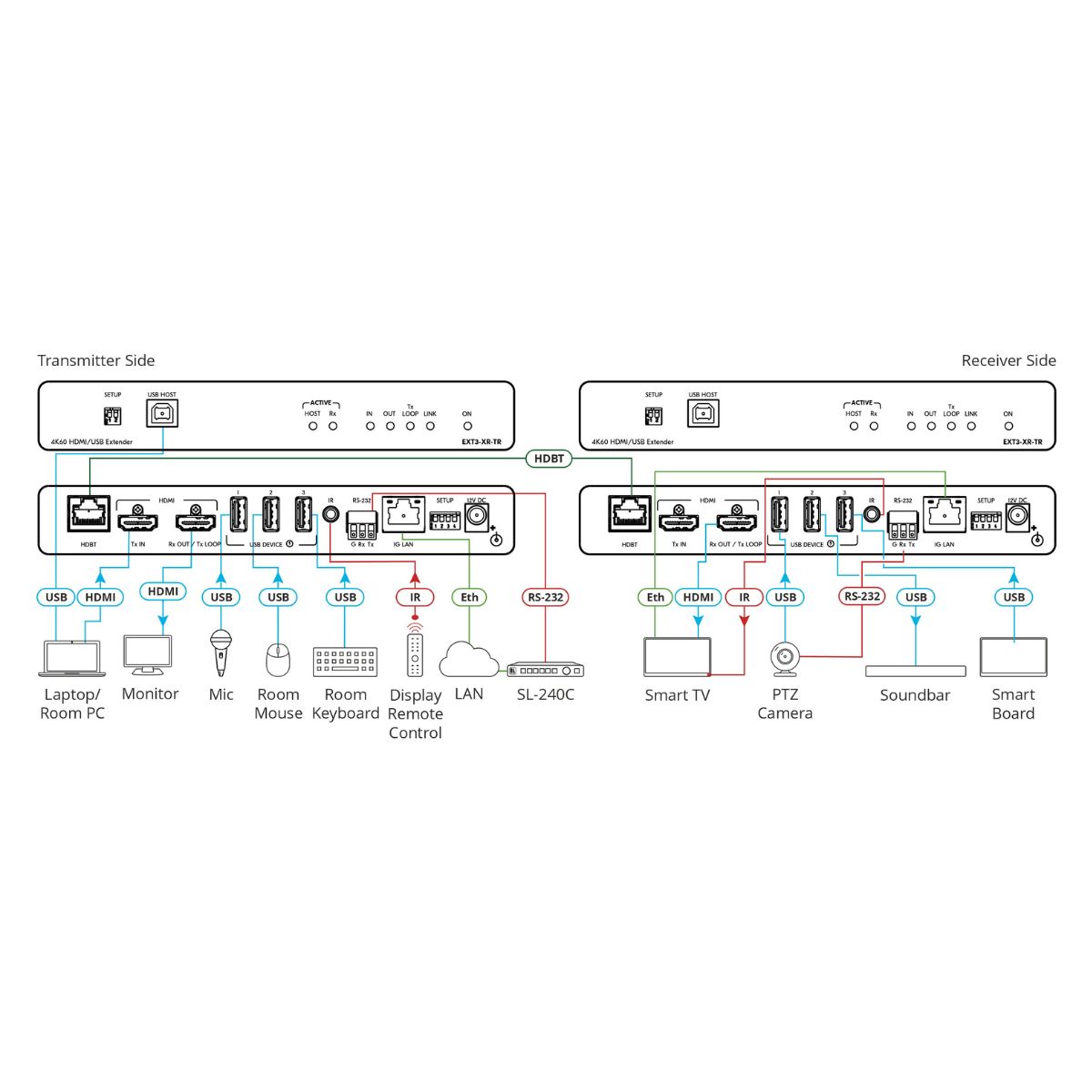

EXT3−XR−TR is a high−performance, extended−reach HDBaseT 3.0 extender for 4K60Hz (4:4:4) HDMI, USB, Ethernet, RS−232, and IR signals over twisted pair, flexibly set as a transmitter−side or receiver−side device. EXT3−XR−TR transmitter−side converts all input signals into the transmitted HDBaseT 3.0 signal. EXT3−XR−TR receiver−side receives

Contact to Seller
  • Uncompressed 4K@60Hz (4:4:4) HDMI extension
  • Flexible USB 2.0 host & devices extension
  • 1Gbps Ethernet extension
  • Up to 100m (330ft) reach

Inputs
  • TRANSMITTER–SIDE INPUTS
  • 1 HDMI: On a HDMI female connector
  • RECEIVER–SIDE INPUTS
  • 1 HDBT: On an RJ–45 female connector

Outputs
  • TRANSMITTER–SIDE OUTPUTS
  • 1 HDBT: On an RJ–45 female connector
  • 1 LOOP: On a HDMI female connector
  • RECEIVER–SIDE OUTPUTS
  • 1 HDMI: On a HDMI female connector

Ports
  • 1 USB 2.0 Host: On a USB–B female connector
  • 3 USB 2.0 Device: On USB type–A female connectors
  • 1 1000BaseT Ethernet: On an RJ–45 female connector for LAN extension
  • 1 IR: On a 3.5mm mini jack for IR link extension
  • 1 RS–232: On a 3–pin terminal block for serial link extension

USB Features
  • Integrated USB Hubs: 1

Extension Line
  • Up to 100m (330ft): At 4k@60hz (4:4:4)
  • Up to 100m (330ft): At 1080p@60hz
  • Note: When using Kramer HDBaseT cables
  • Standards Compliance: HDBaseT 3.0

Video
  • Max Data Rate: 18Gbps bandwidth (6Gbps per graphic channel)
  • Max Resolution: 4K@60Hz (4:4:4) 24bpp resolution
  • Content Protection: HDCP 2.3
  • HDMI Support: 4K as specified in HDMI 2.0b
