F676-IN2-F16

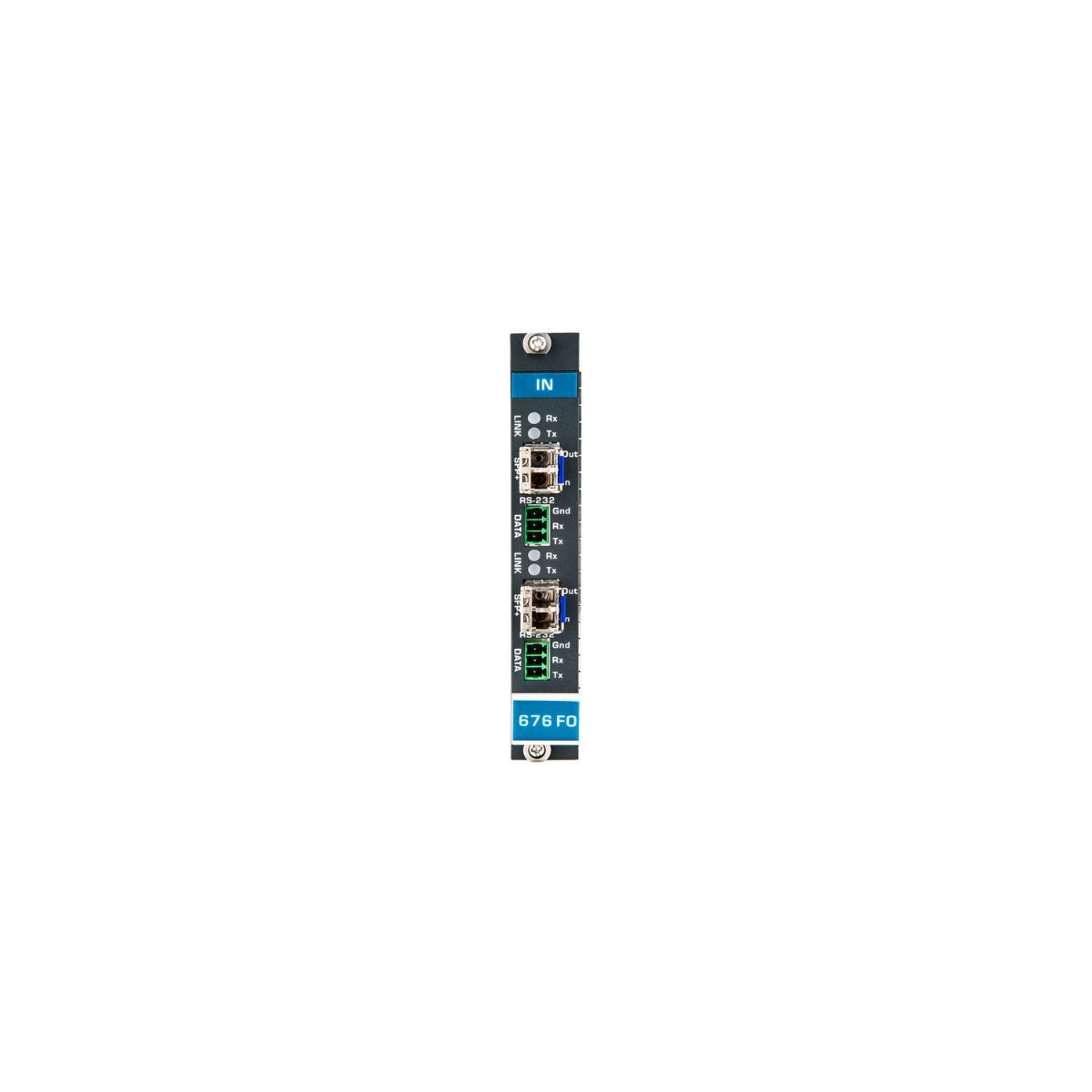

F676−IN2−F16 is a high−performance HDMI fiber optic modular matrix input card for ultra−reach extension of 4K@60Hz (4:2:0) HDMI signals. Designed for the VS−1616DN−EM modular matrix, F676−IN2−F16 receives the transmitted optical signal from a compatible transmitter and converts it to an HDMI and RS−232 signals. F676−IN2−F16 includes 2 multi−mode SFP+ transceivers, but can be used with any Kramer certified SFP+ transceivers, such as single−mode SFP+ transceivers.

Contact to Seller

4K60 4:2:0 HDMI over Ultra–Reach MM/SM Fiber Optic Input Card

  • Multi–mode or single–mode fiber
  • Video resolution — Up to 4K@60 (4:2:0)
  • Control extension
  • Up to 33km ultra–reach extension
Download Product catalog

Inputs
  • 2 Fiber Optic: On LC connectors

Ports
  • 2 RS-232: On a 3–pin terminal block connector

Video
  • Max Bandwidth: 10.2Gbps
  • Max Resolution: 4096x2160@60Hz 4K@60 (4:2:0)
  • HDMI Support: 10.2G (3.4G per channel) data rate, LPCM 7.1, Dolby True HD, and DTS–HD
  • Content Protection: HDCP 2.2

Extension Line
  • Optical Fiber: Multi–mode (MM) or single–mode (SM)
  • Optical Module: Kramer 10Gbps SFP+ IEEE 802.3ae compliant modules (MM is included)

Multi-mode Line
  • Compliance: G.651.1 OFNR fiber
  • Max Reach over OM3 MM Fiber: 3km (1.8 miles)

Single-mode Line
  • Compliance: G.652D OFNR fiber
  • Max Reach over OS1 SM Fiber: 33km (20.5 miles)
