Fairlight Live Audio Panel 20

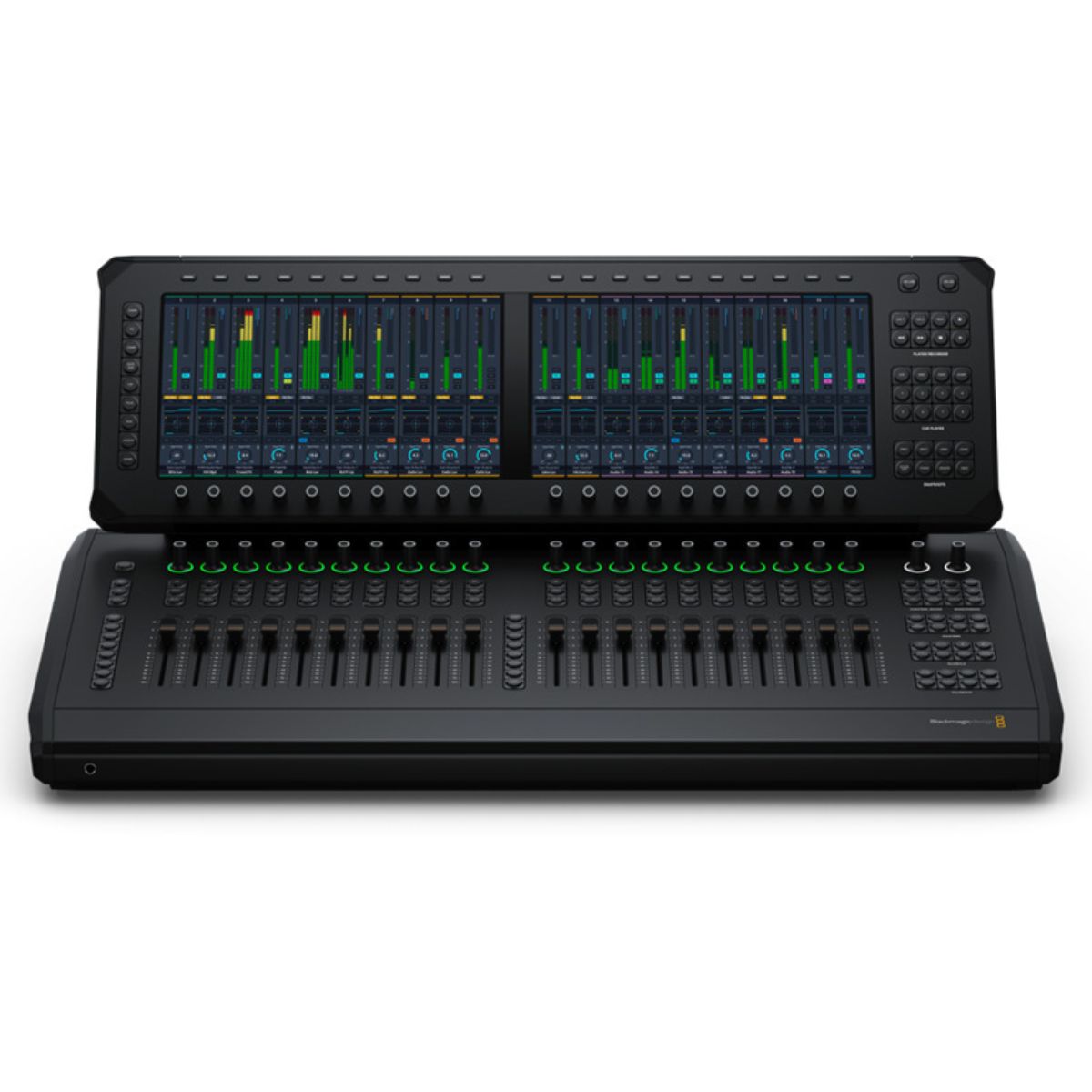

Fairlight Live Audio Panel 20 is a desktop control surface with 20 motorized faders and two large touchscreen displays, designed for professional live audio mixing with Fairlight Live. Controls include layers, bus, matrix, aux, VCA, sub-masters and talkback for fast hands-on access to your mix. The touchscreens display channel strip information, levels, EQ, dynamics processing and plug-in interfaces. Ideal for home studios and mid-sized productions. Fully integrated with Fairlight Live.

Contact to Seller

Connections

  • 2110 IP Video and Audio Networks
  • 2 x 10G RJ45 Ethernet connections.
  • Senders and Receivers per 10G Pair
  • Supports 2110 IP video and audio, plus analog audio in and out of the panel.
  • 1G Control Network
  • 1 x 1G RJ45 for computer connection, configuration, and software updates.
  • HDMI Monitor Outputs
  • 1
  • Analog Audio Inputs
  • 1 x 3-pin XLR for mic-level analog audio.
  • 1 x 5-pin XLR for talkback headset.

Operating Temperature

0° to 40°C (32° to 104°F)

Storage Temperature

-20° to 60°C (-4° to 140°F)

Relative Humidity

0% to 90% non-condensing
