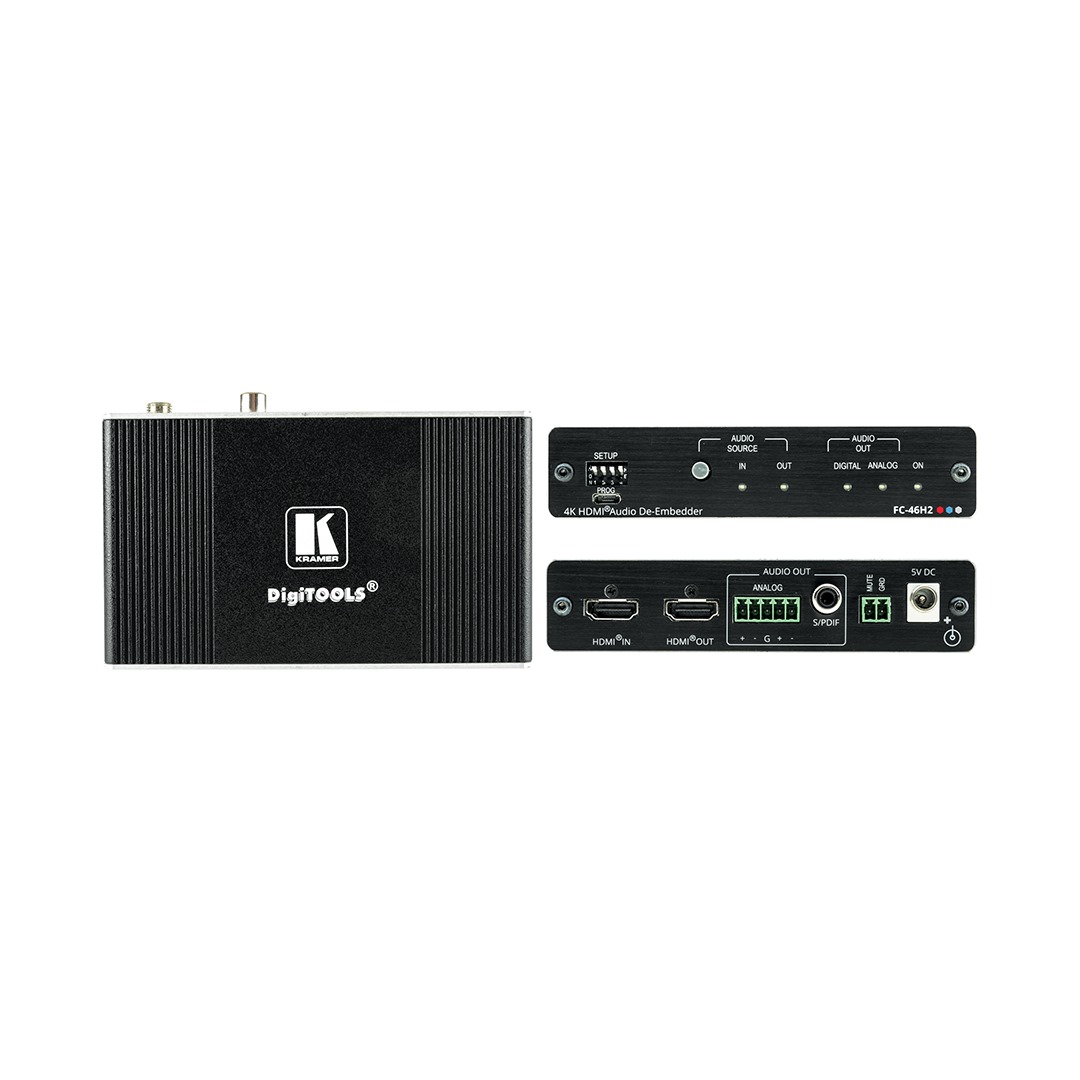

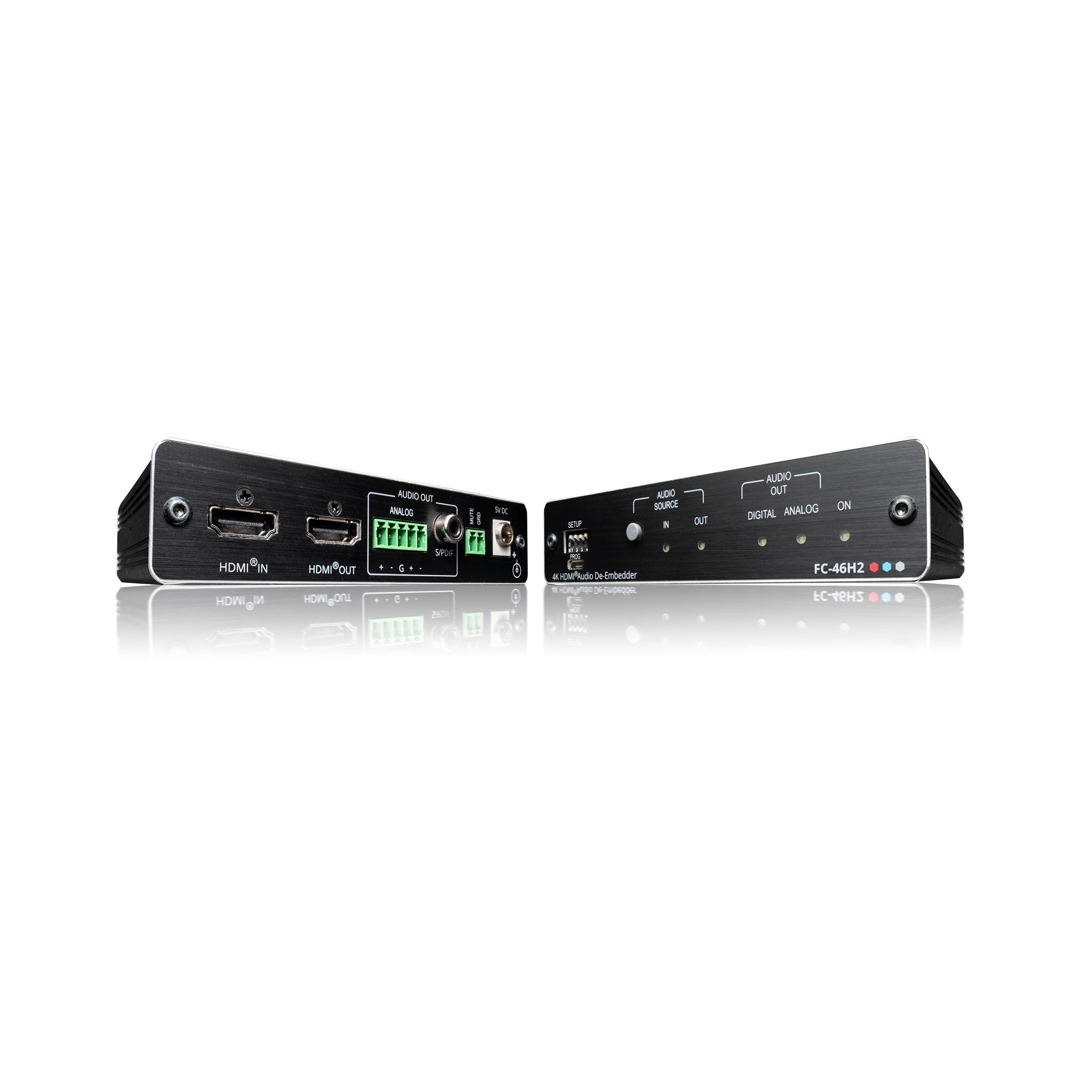

The FC-46H2 is a professional HDMI audio de-embedder that supports resolutions up to 4K@60Hz (4:4:4). It extracts audio from the HDMI input or ARC output and simultaneously delivers it through S/PDIF and 5-pin balanced audio outputs for flexible audio integration.
- Max. Data Rate — 18 Gbps
- Deep Color up to 12–bit
- De–embed from the HDMI output or ARC
- Output to digital or analog Audio
- Smart EDID Management
| Inputs | HDMI: On a female HDMI connector |
| Outputs |

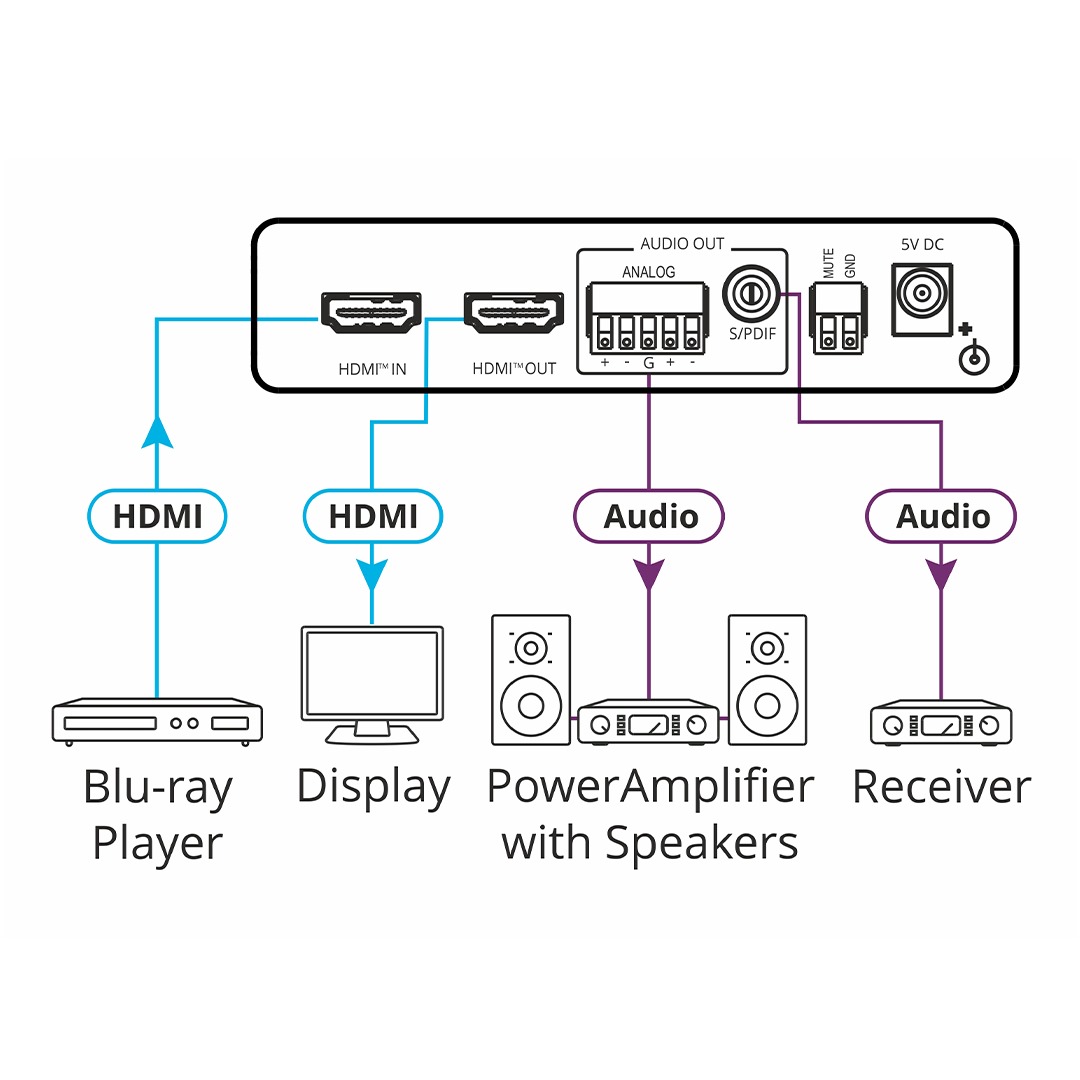

HDMI: On a female HDMI connector S/PDIF Digital Audio: On an RCA connector Balanced Stereo Analog Audio: On a 5−pin terminal block connector |
| Video |
Bandwidth: Up to 18Gbps (6Gbps per graphic channel) Color Depth Up to 12−bit Max. Resolution: Up to 4K@60 (4:4:4) HDMI Support: 4K@60Hz and ARC as specified in HDMI 2.0 |
| Audio | Frequency Response: 20Hz to 20kHz @ +/–0.1dB |
| User Interface |
Control: Setup DIP switches for EDID mode, audio settings, analog audio amplification. Contact closure switch for: output mute Indicators: Audio sources (IN and OUT), Audio output (DIG and ANALOG), and ON LEDs |
| Power | Consumption: 5V DC, 370mA Source: 5.2V DC, 4A |
| Environmental Conditions | Operating Temperature: 0° to +40°C (32° to 104°F) Storage Temperature: −40° to +70°C (−40° to 158°F) Humidity: 10% to 90%, RHL non−condensing |
