FC-69 Embedder/De–Embedder

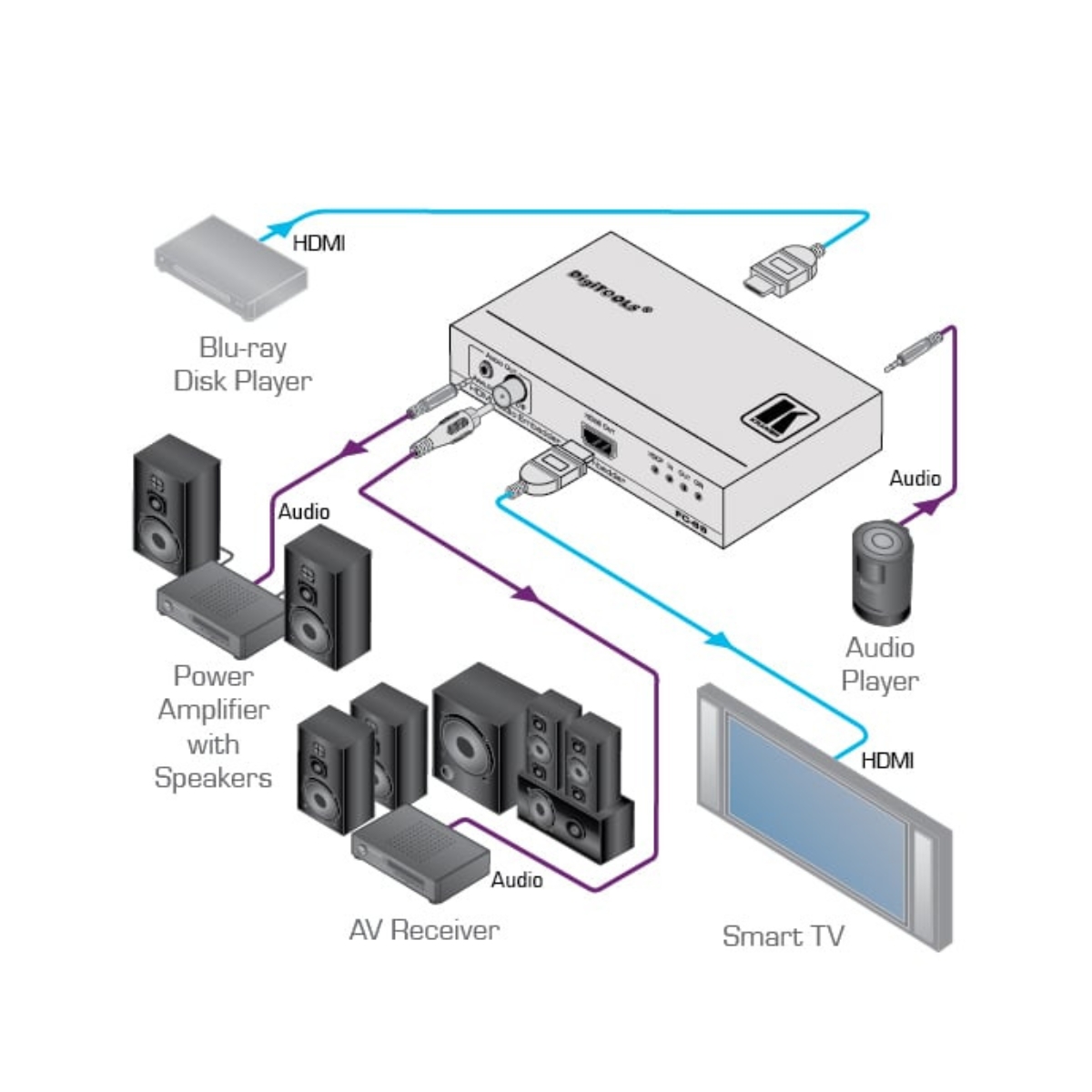

The FC-69 is a high-performance HDMI audio embedder and de-embedder supporting resolutions up to 4K@60Hz (4:2:0). It embeds analog audio into the HDMI output or extracts audio from the HDMI input or ARC channel, delivering it simultaneously through S/PDIF and unbalanced stereo audio outputs for flexible audio integration.
- Max. Resolution — 4K@60Hz (4:2:0), 4Kx2K.
- Max. Data Rate — 8.91Gbps (2.97Gbps per data channel).
- HDTV Compatible.
- HDCP Compliant.
- HDMI Support — ARC, 7.1 PCM, deep color.
- Audio Embedding — Even without an HDMI source.

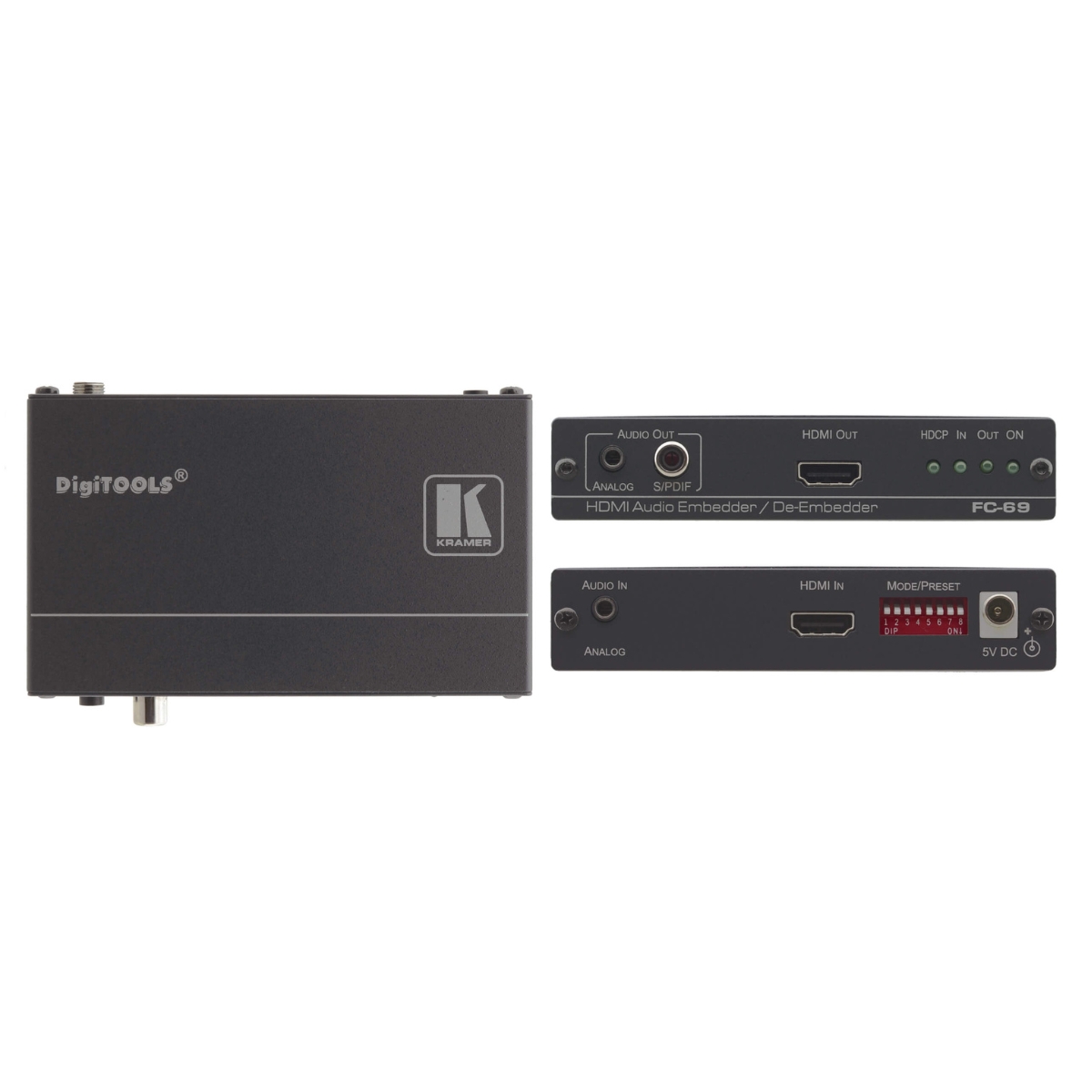

| INPUT | 1 HDMI on an HDMI connector, 1 analog stereo audio on a 3.5mm mini jack |
| OUTPUTS | 1 HDMI on an HDMI connector, 1 S/PDIF digital audio on an RCA connector, 1 analog stereo audio on a 3.5 mm mini jack |
| MAX DATA RATE | 8.91Gbps (2.97Gbps per graphic channel), 1080p @60Hz, 36−bit Deep Color, supports 4K@60 UHD (4:2:0), 4Kx2K |
| AUDIO THD+N | –75dB |
| COMPLIANCE WITH HDMI STANDARD | Supports HDMI, HDCP |
| CONTROLS | 8−way DIP−switch |
| INDICATOR LEDS | ON, IN, OUT, HDCP |
| POWER SOURCE | 5V DC, 500mA |
