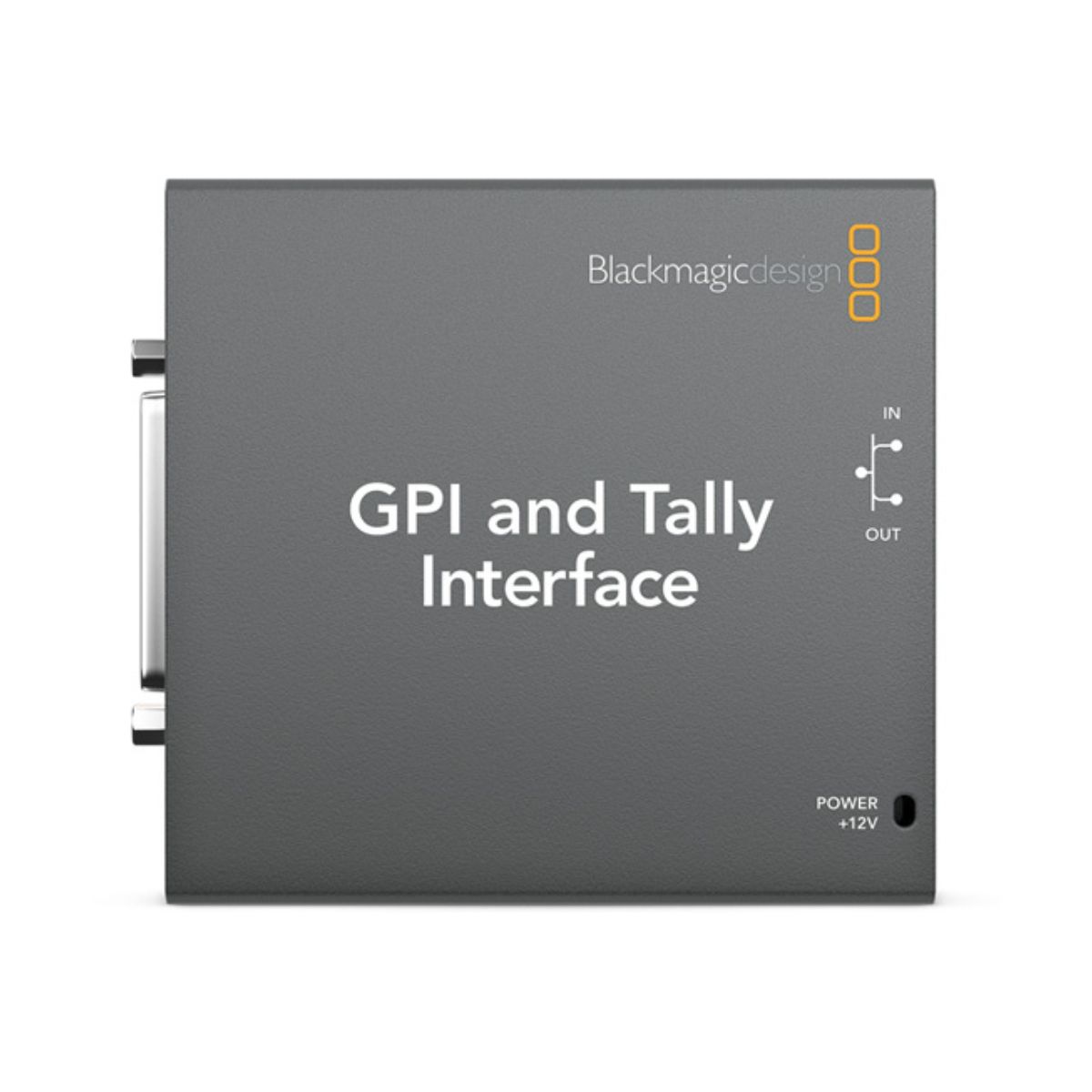

GPI and Tally Interface

Add tally to your ATEM switcher with Blackmagic Design's GPI and Tally Interface! With 8 contact closure tally outputs, you can send a tally signal to your cameras, replay machines, and monitors so everyone knows which camera is 'on-air'! If you need more tally outputs, simply connect multiple GPI and Tally Interfaces together because it connects via Ethernet to your ATEM production switcher

Contact to Seller

Connections

  • Contact Closure
  • 25-pin D-type connector providing 8 opto-isolated inputs and 8 relay contact closure outputs.
  • Computer Interface
  • 1 x USB 2.0 high-speed interface for configuration and firmware updates.
  • Inputs
  • Optical isolators triggered by connection to ground. Max 5V at 14mA.
