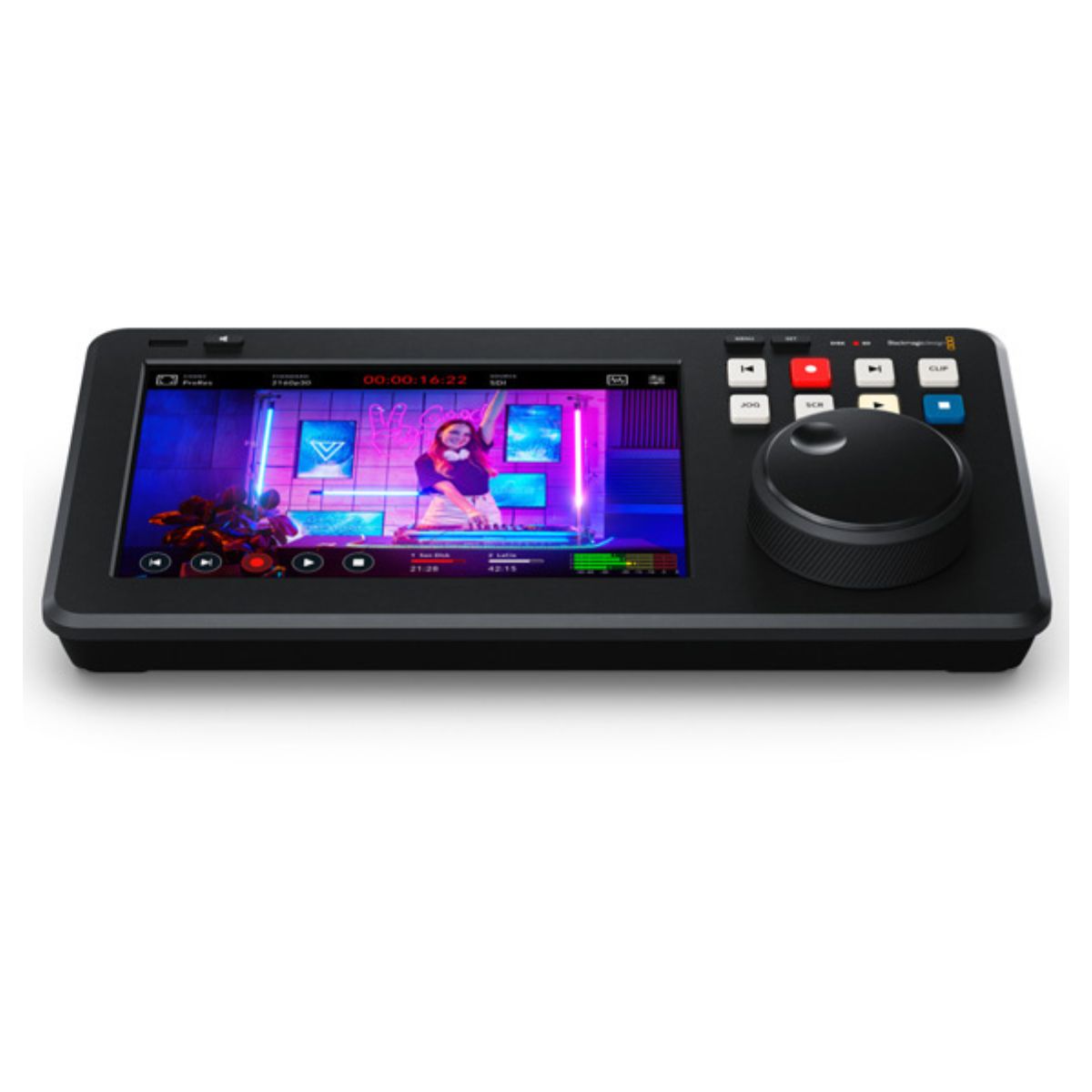

HyperDeck Shuttle 4K Pro is an advanced recorder and player with a large 7" LCD touchscreen for monitoring and scopes. The large search dial and broadcast controls are perfect for scrolling through media to find the media you want to play. 12G-SDI connections allow you to connect to professional broadcast equipment. Supports HDMI 4K, H.264, H.265, ProRes or DNx files, HD proxies, scopes, 3D LUT, and network recording via fast 10G Ethernet.
Connections
|
SDI Video Inputs |
1 |
|
SDI Loop Outputs |
1 |
|
SDI Video Outputs |
2 |
|
SDI Monitor Outputs |
1 |
|
SDI Rates |
270Mb, 1.5G, 3G, 6G, 12G. |
|
HDMI 2.0 Video Inputs |
1 |
|
HDMI 2.0 Video Outputs |
1 |
Media
|
Cache or Internal Recording |
2TB M.2 PCIe NVMe card included for cache recording or internal recording. Slot supports 60mm 80mm and 110mm cards up to 16Gb/s. |
|
Media |
1 x SD card slot 1 x USB‑C 3.1 Gen 1 expansion port for external recording of SD, HD, Ultra HD, and 4K DCI. |
|
Media Type |
UHS-I and UHS-II SD cards. |
|
Media Format |
Can format media to ExFAT (Windows/Mac)or HFS+ (Mac) file systems. |
