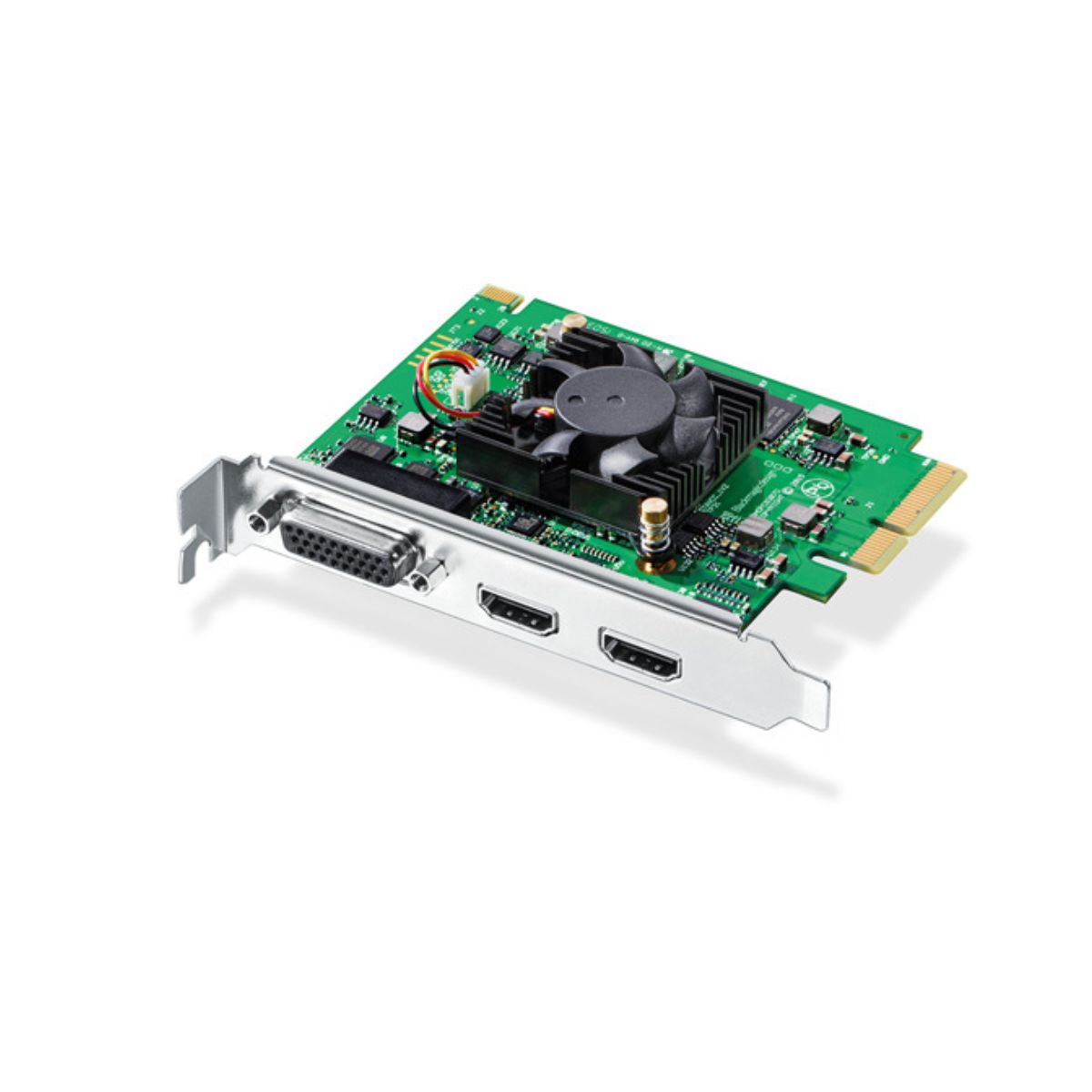

Intensity Pro 4K lets you capture and playback on PCI Express Mac, Windows, and Linux computers. Featuring HDMI and analog breakout connections, Intensity Pro 4K works with NTSC/PAL, HD, and Ultra HD video with or without compression and is compatible with all popular video editing, audio, and streaming software. DaVinci Resolve and Media Express software are included free, so you get professional editing, grading, and media management without having to buy extra software!

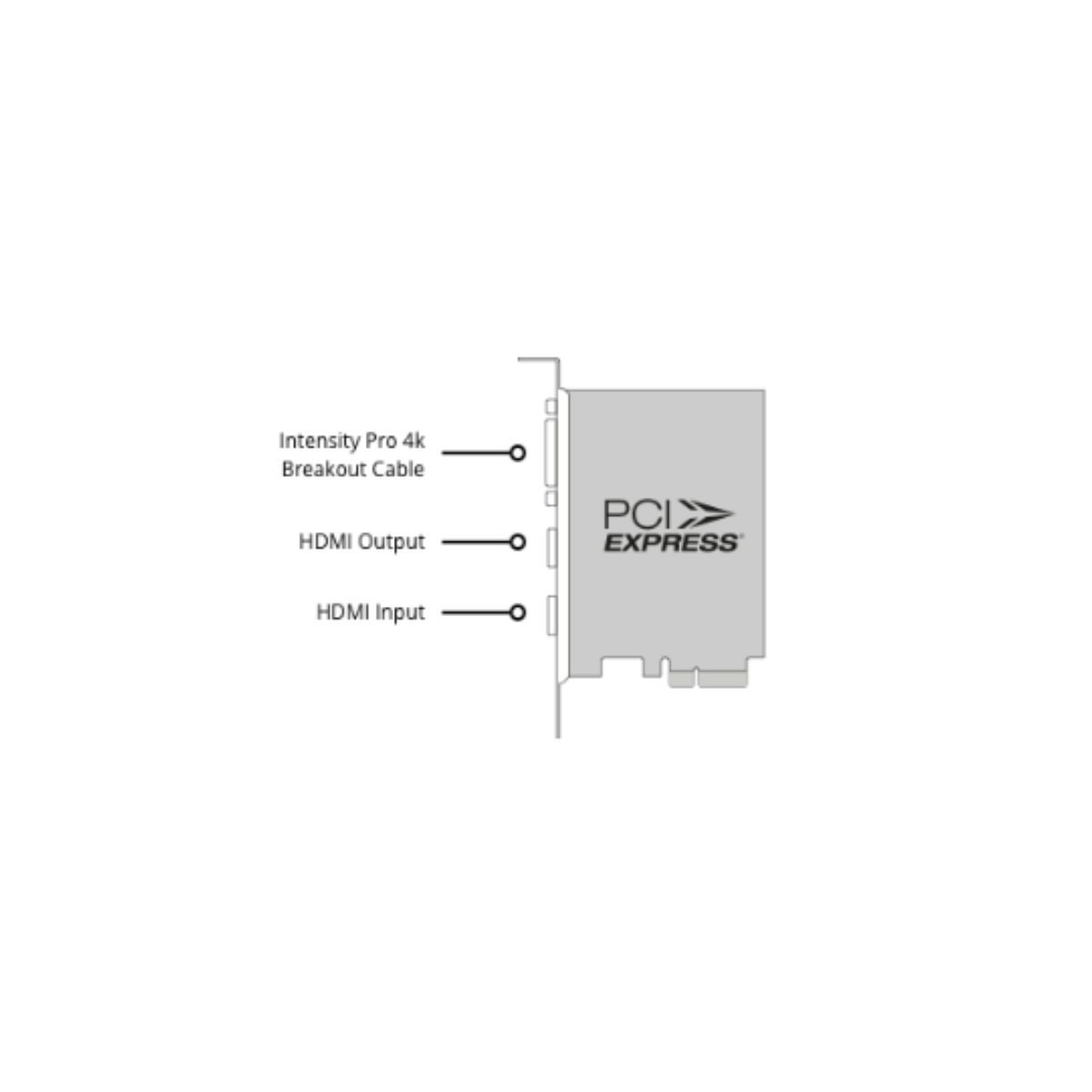

Connections
|
HDMI Video Inputs |
1 x HDMI type A connector. |
|
HDMI Video Outputs |
1 x HDMI type A connector. |
|
HDMI Audio Inputs |
8 Channels embedded in SD, HD, and Ultra HD. |
|
HDMI Audio Outputs |
8 Channels embedded in SD, HD, and Ultra HD. |
|
Analog Video Inputs |
Component, Composite, or S-Video. |
|
Analog Video Outputs |
Component, Composite, or S-Video. |
Video Standards
|
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
|
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
|
Audio Sampling |
The television standard sample rate is 48 kHz and 24-bit. |
|
Color Space |
REC 601, REC 709. |
|
HDMI Video Sampling |
4:4:4, 4:2:2 & 4:2:0. |
|
HDMI Color Precision |
8, 10-bit (Deep Color) RGB 4:4:4 in all modes up to 1080p60, 8, 10-bit YUV 4:2:2 in all modes. |
