KC-BRAINware-25 Hardware Platform

KC-BRAINware-25 is a hardware platform with 25 pre-installed BRAINware instances, enabling software-based control of up to 25 standard spaces without physical controllers. It supports Ethernet-connected AV devices, lighting, and other equipment, with easy, programming-free setup and configuration through Kramer Control’s drag-and-drop builder.

Contact to Seller
  • Fully customizable UI
  • Replaces physical Brains
  • Enables controlling almost any device
  • Scalable & flexible control
  • No programming required
Download Product catalog

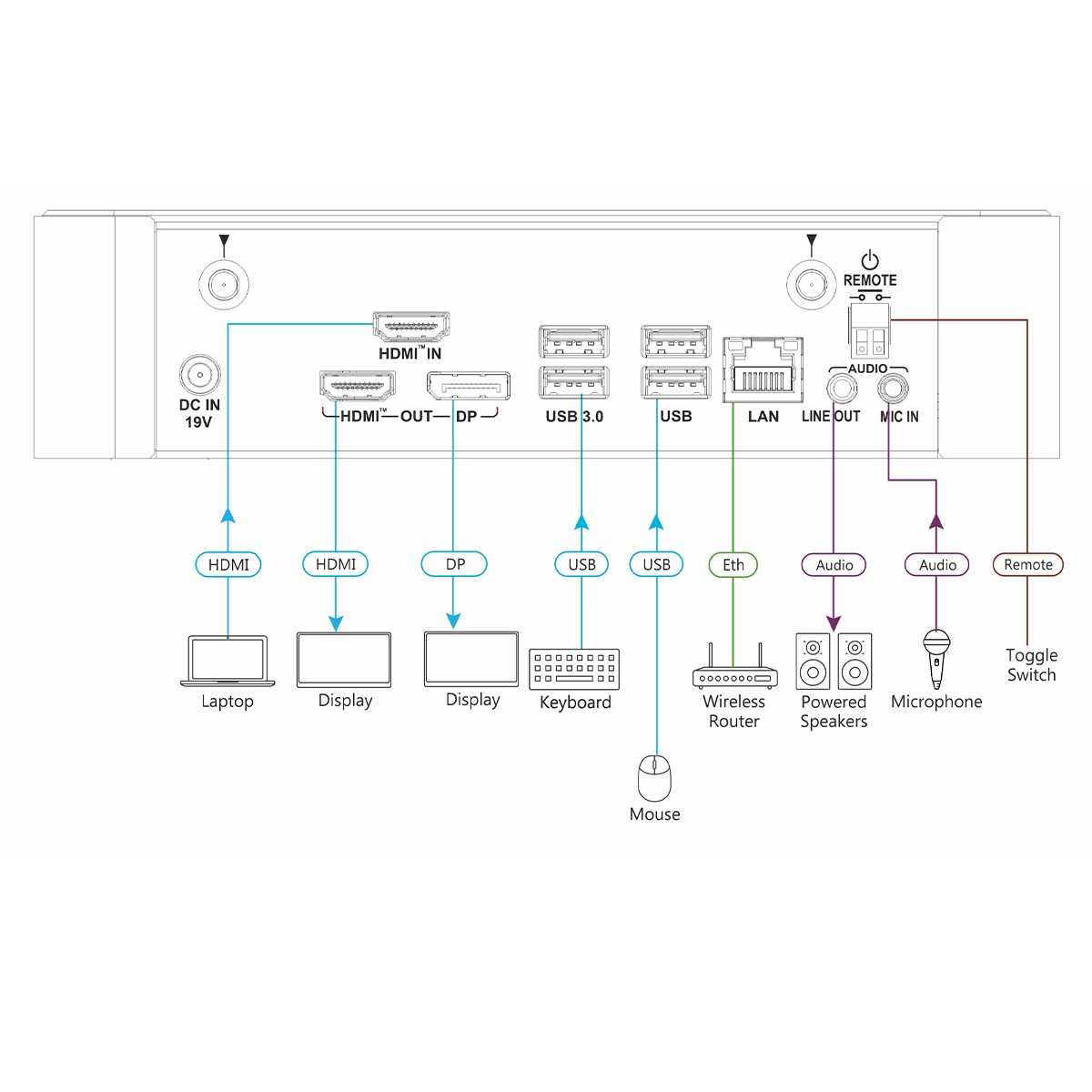

Ports

2 USB 3.1 Gen 1 (blue): On female USB Type-A connectors

3 USB 2.0 (black): On female USB Type-A connectors

1 LAN: On an RJ−45 connector
Inputs 1 Microphone: On a 3.5mm jack
Outputs

1 HDMI: On a female HDMI connector

1 DisplayPort: On a female DisplayPort connector

1 Unbalanced Stereo Audio Line Out: On a 3.5mm jack
Video

Max. Resolution HDMI Input: 4K@60

Max. Resolution DisplayPort Output: 4K@60

Max. Resolution HDMI Output: 4K@30 (RGB)
Audio

Integrated High Definition Audio: 5.1 channel

Processor: 3.60 GHz quad-core (8th Generation)
General

Main Memory: 8GB (2 x 4GB DDR4 SDRAM modules)

Storage: 128GB solid-state drive

LAN: Gigabit LAN
Power Source: 19V
