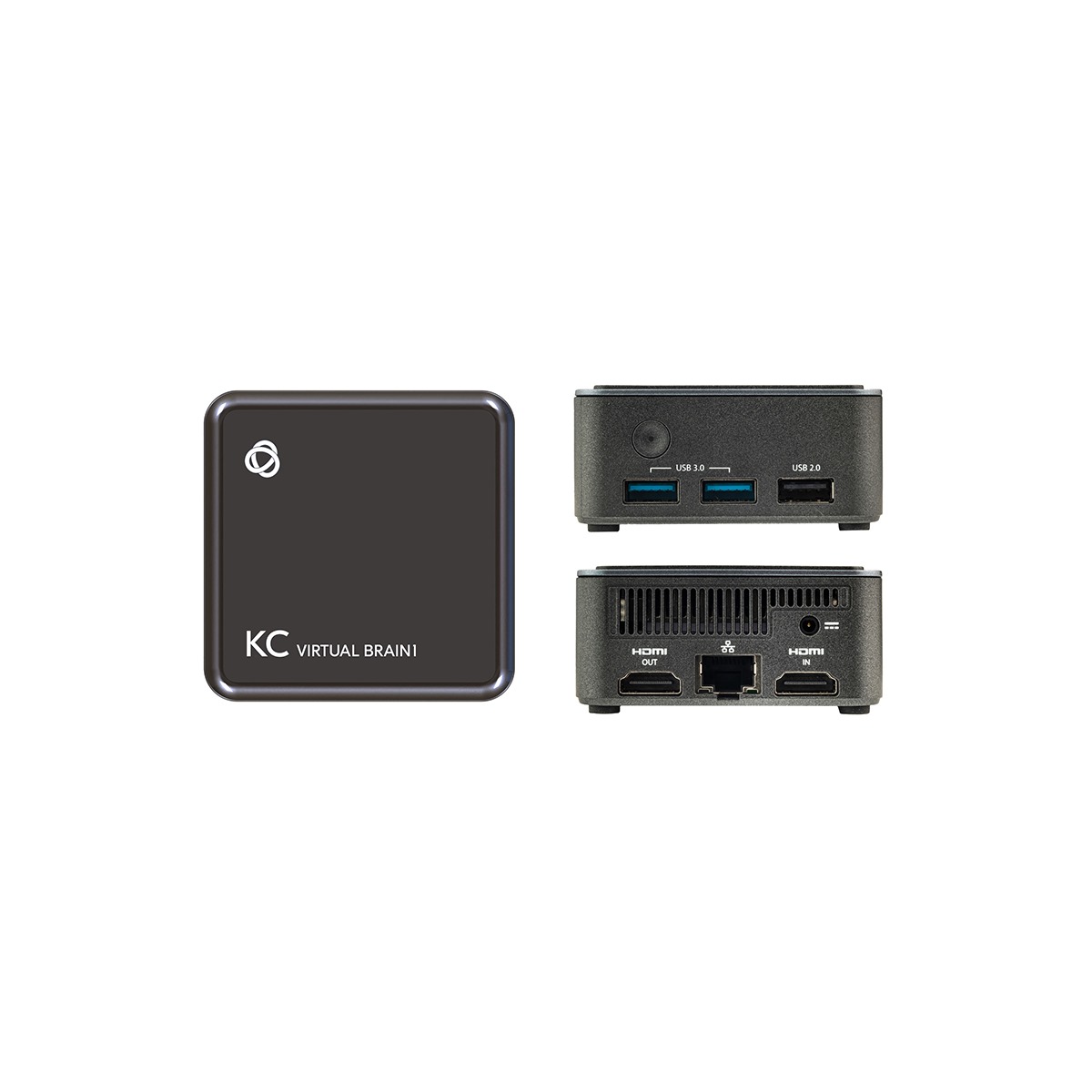

KC-Virtual Brain1 Hardware Platform with 1 Instance

KC-Virtual Brain1 is a hardware platform with one pre-installed BRAINware software instance for controlling a single space. It enables computer-based control of AV equipment, lighting, and other Ethernet-connected devices without a physical controller, using Kramer Control’s intuitive drag-and-drop builder with no programming knowledge required.

Contact to Seller
  • Fully customizable UI
  • Replaces physical Brains
  • Enables controlling almost any device
  • Scalable & flexible control
  • Simple configuration
Download Product catalog
Ports

3 USB: 2 USB 3.0 connectors and 1 USB connector

1 LAN: On an RJ−45 connector
Inputs 1 HDMI: On a female HDMI connector
Outputs 1 HDMI: On a female HDMI connector
General

Processor: Intel® Gemini Lake QC SOC

Main Memory: 4GB LPDDR4 (2400)

Storage: 32GB eMMC

Networking: 1 x Gigabit LAN Wi–Fi 802.11 ac/b/g/n dual band
Power Source: 12V DC
Environmental Conditions Operating Temperature 0° to +40°C (32° to 104°F)
Extended USB Safety: CE
Enclosure Type: Aluminum
Accessories Included: Power adapter, Video Switching control cable, VESA mount
