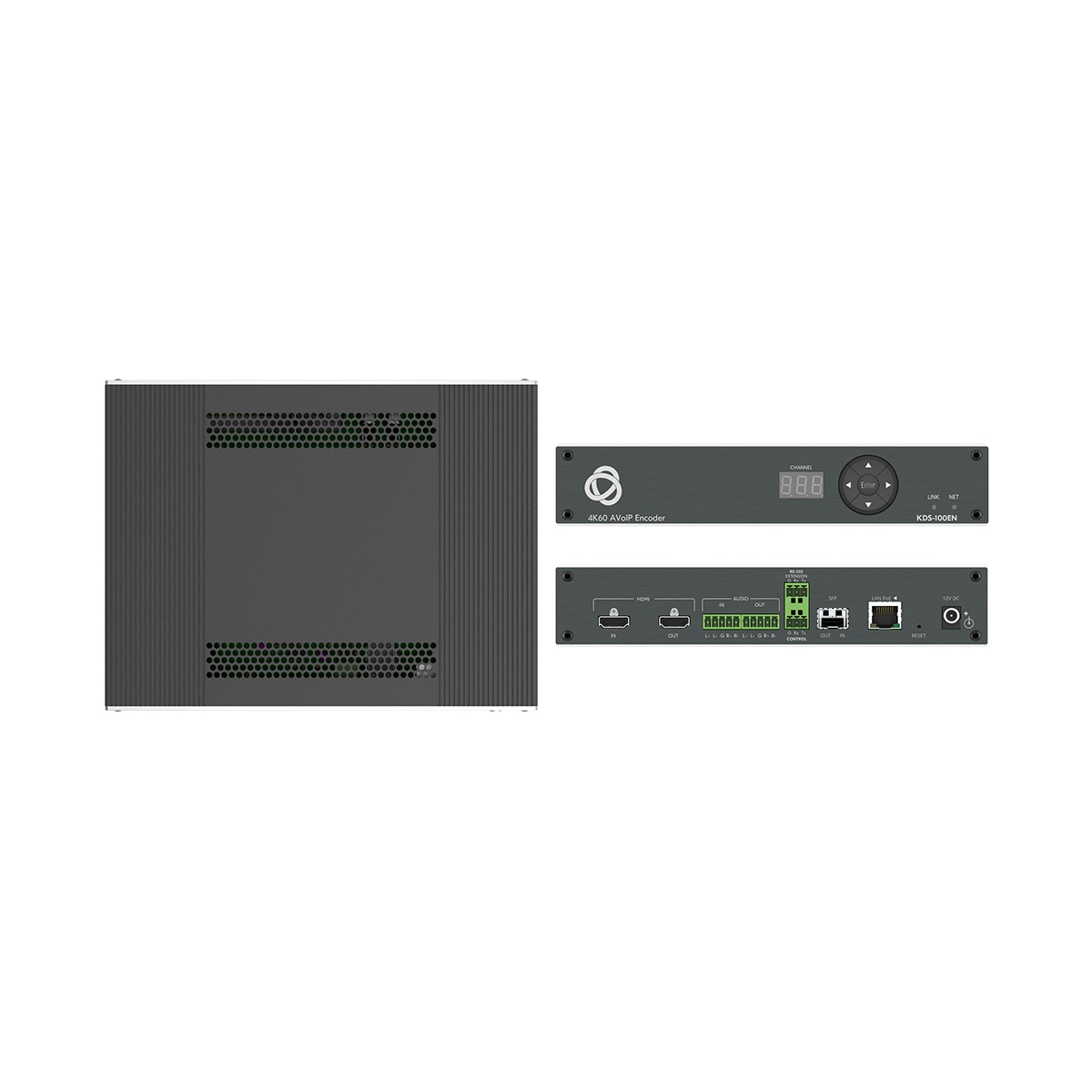

KDS-100EN 4K@60Hz streaming encoder with audio

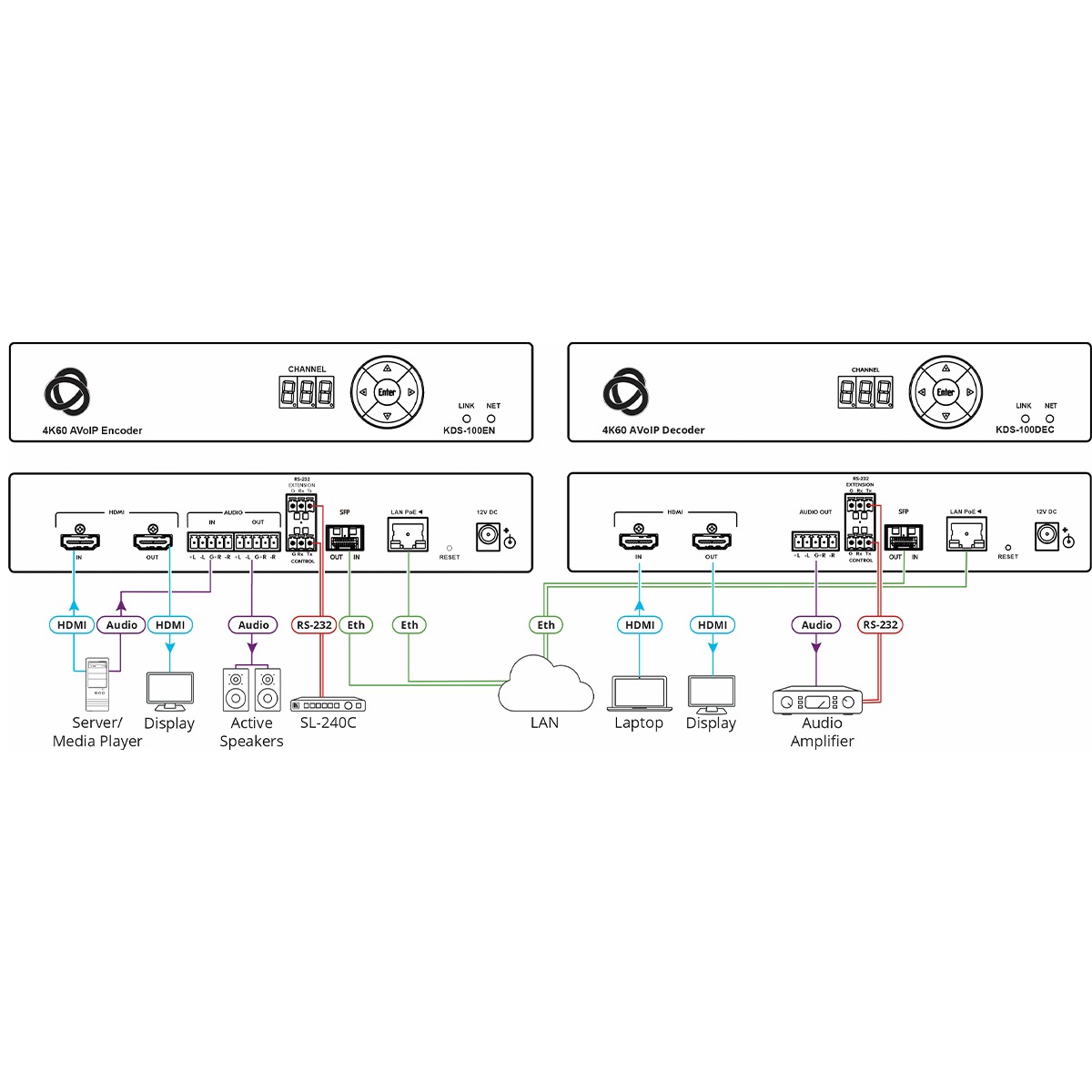

The KDS-100EN is an advanced 4K@60Hz video encoder designed to transmit HDMI signals over IP networks via copper or fiber Ethernet cables. It also supports IR, RS-232, and CEC signal transmission for flexible control and seamless integration into professional AV systems.

Contact to Seller
  • Outstanding end–user experience
  • Ideal for large–scale deployments
  • Low latency
  • Open standard streaming to connect 3rd party
  • Simple planning and rollout
Download Product catalog
Inputs

1 HDMI: On a female HDMI connector

1 Balanced Audio: On a 5−pin terminal block connector
Outputs

1 HDMI: On a female HDMI connector

1 Balanced Audio: On a 5−pin terminal block connector
Ports

1 Media / Control LAN PoE: On an RJ−45 female connector

1 RS-232: On a 3−pin terminal block connector for control

1 RS-232: On a 3−pin terminal block connector for extension

1 Fiber on an LC Connector: Standard: 1000BASE−SX, 1000BASE−LX
Network 1 GE IPv4 Multicast IGMPv2 RTP/RTCP Over UDP MPEG-TS
Video Max Input/Output Resolution: 3840x2160@60Hz 4:4:4
