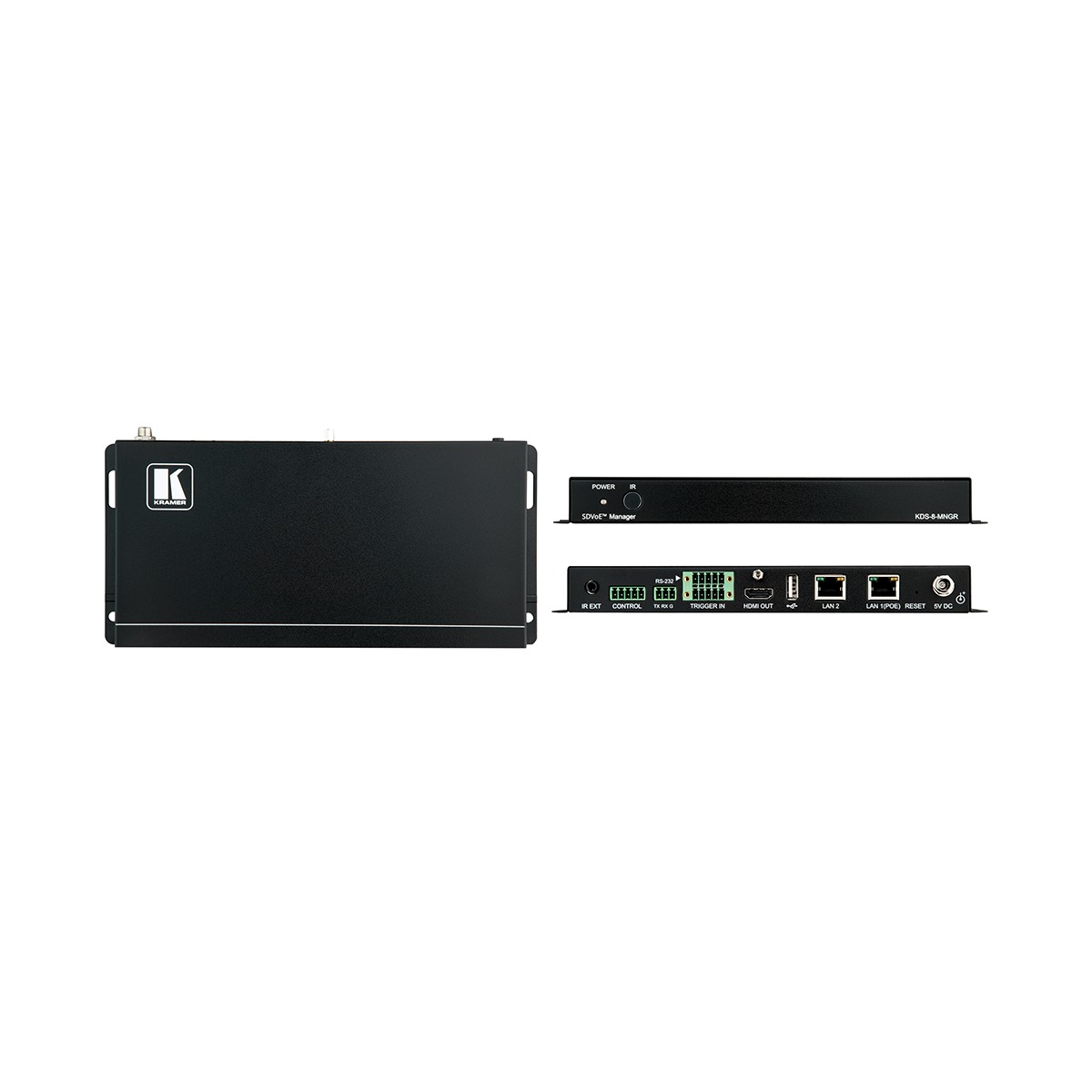

KDS-8-MNGR Management Solution for KDS–8 Streaming Products
The KDS-8-MNGR is an SDVoE manager designed to configure and manage KDS-8 and KDS-8F encoders and decoders on the same network. Its built-in web interface enables centralized channel routing for video, audio, and control signals, while supporting matrix switching, video wall, and multiviewer modes. It also simplifies IP configuration, compatibility settings, and device status monitoring for efficient AV system management.
- Centralized Management — Manage and configure multiple compatible KDS–8 devices through a single web interface. Control the independent routing of video, audio and control signals.
- Configure matrix, video wall, and multiviewer modes.
- Customizable — Create macros to further streamline and customize operation of the connected devices.
- Status at–a–Glance — Displays the status of all connected Transmitters and Receivers, including IP addresses, channel selections, and more.
- Serial Control — Generates serial commands to directly control an external serial–controlled device

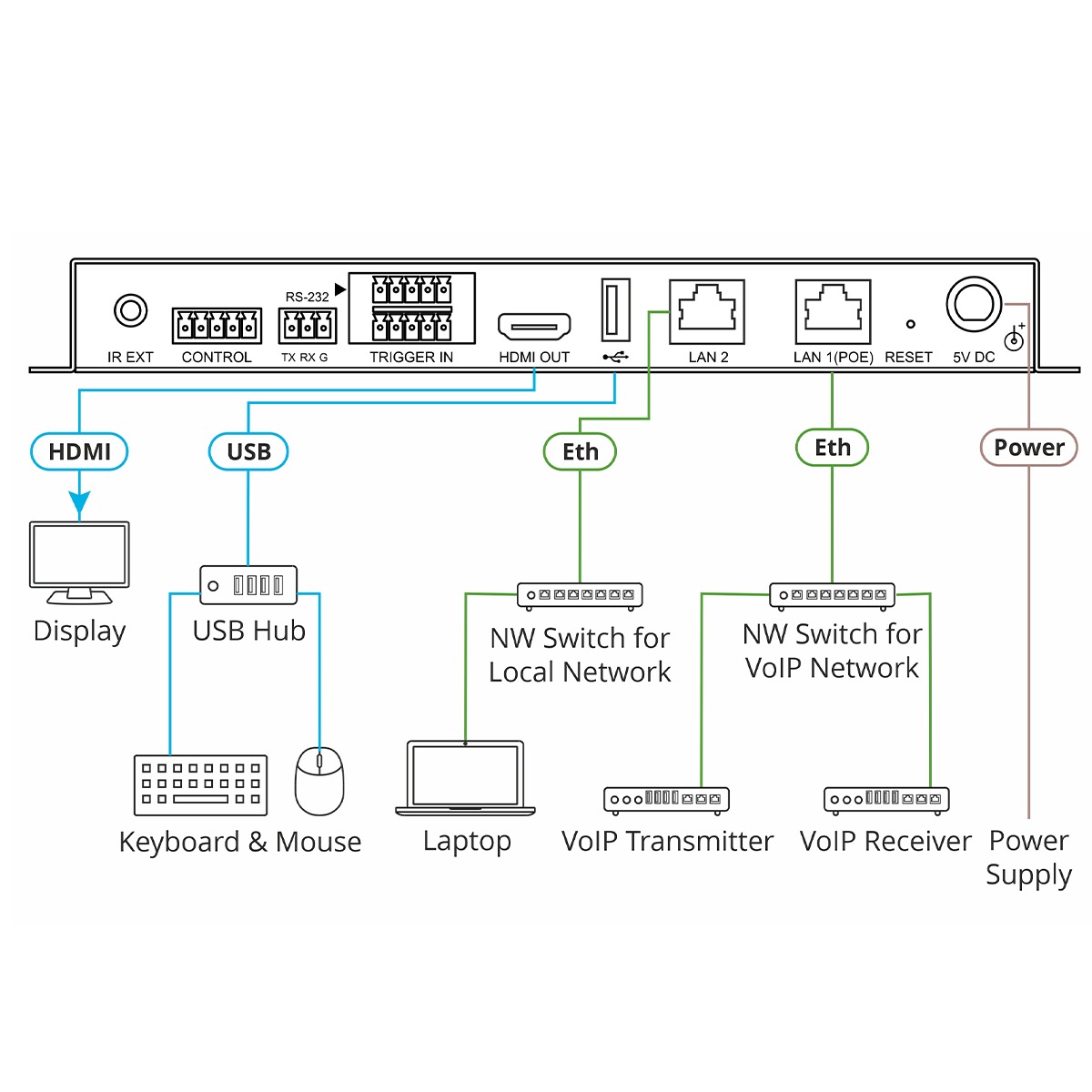

| Outputs | 1 HDMI: An HDMI connector to view current status information and access the embedded web pages without a PC |
| Ports |
1 RS-232: On a 3-pin terminal block for device control 1 RS-232: 5-pin terminal block for control extension 8 Triggers on a 10−pin terminal block 2 LAN (RJ-45) 1 USB 2.0 (Type A) |
| Power | Source: 5V/4A DC |
| Enclosure |
Material: Steel Color: Black |
| Environmental Conditions |
Operating Temperature: 0˚C – 40˚C/32˚F – 104˚F Storage Temperature: −20˚C – 60˚C/−4˚F – 140˚F |
| Product Dimensions | 10.80cm x 23.10cm x 2.50cm (4.25" x 9.09" x 0.98" ) W, D, H |
