KDS-DEC7 Decoder for 4K over 1G network (KDS–7)

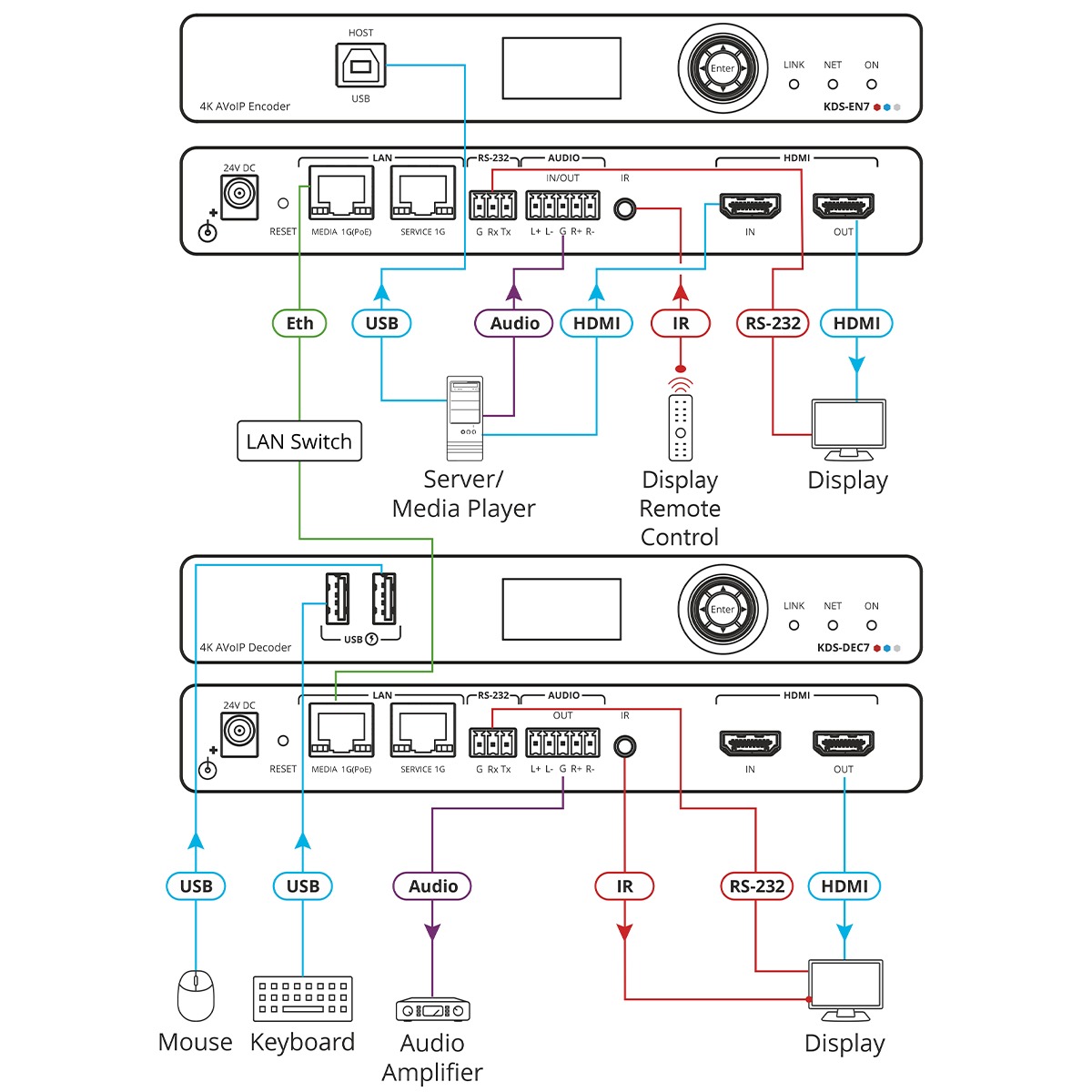

The KDS-DEC7 is an advanced 4K video decoder designed to receive and decode video streams over an IP network and deliver them through an HDMI output. It also supports USB, IR, RS-232, and CEC signal transmission over the network for seamless AV system integration.

Contact to Seller
  • Outstanding end–user experience
  • Ideal for large–scale deployments
  • Robust security
  • Simple planning and rollout
Download Product catalog
Inputs 1 HDMI: On a female HDMI connector
Outputs 1 HDMI: On a female HDMI connector
Ports

2 Ethernet: On RJ–45 connectors

1 Balanced Audio: On a 5–pin terminal block connector

1 RS-232: On a 3−pin terminal block connector

1 IR: On a 3.5mm TRS connector

2 USB: On USB−A connectors
USB Features Integrated USB Hubs: 1-layer when connecting to KDS−EN7
Network

Multicast through RTSP (Real Time Streaming Protocol): IGMP snooping, non–blocking, Layer 2

Unicast Through RTSP (Real Time Streaming Protocol)

Bitrate Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps
Video Compression Standard: JPEG-based, private stream. Max Resolution: 4K@30Hz 4:4:4
Video Streaming

Compression Standard: JPEG2K-based, proprietary stream

Max Input Resolution: 4K@60hz (4:2:0)

Max Output Resolution: 4K@30hz (4:4:4)

Max End-to-End Resolution: 4K@30hz (4:4:4)
