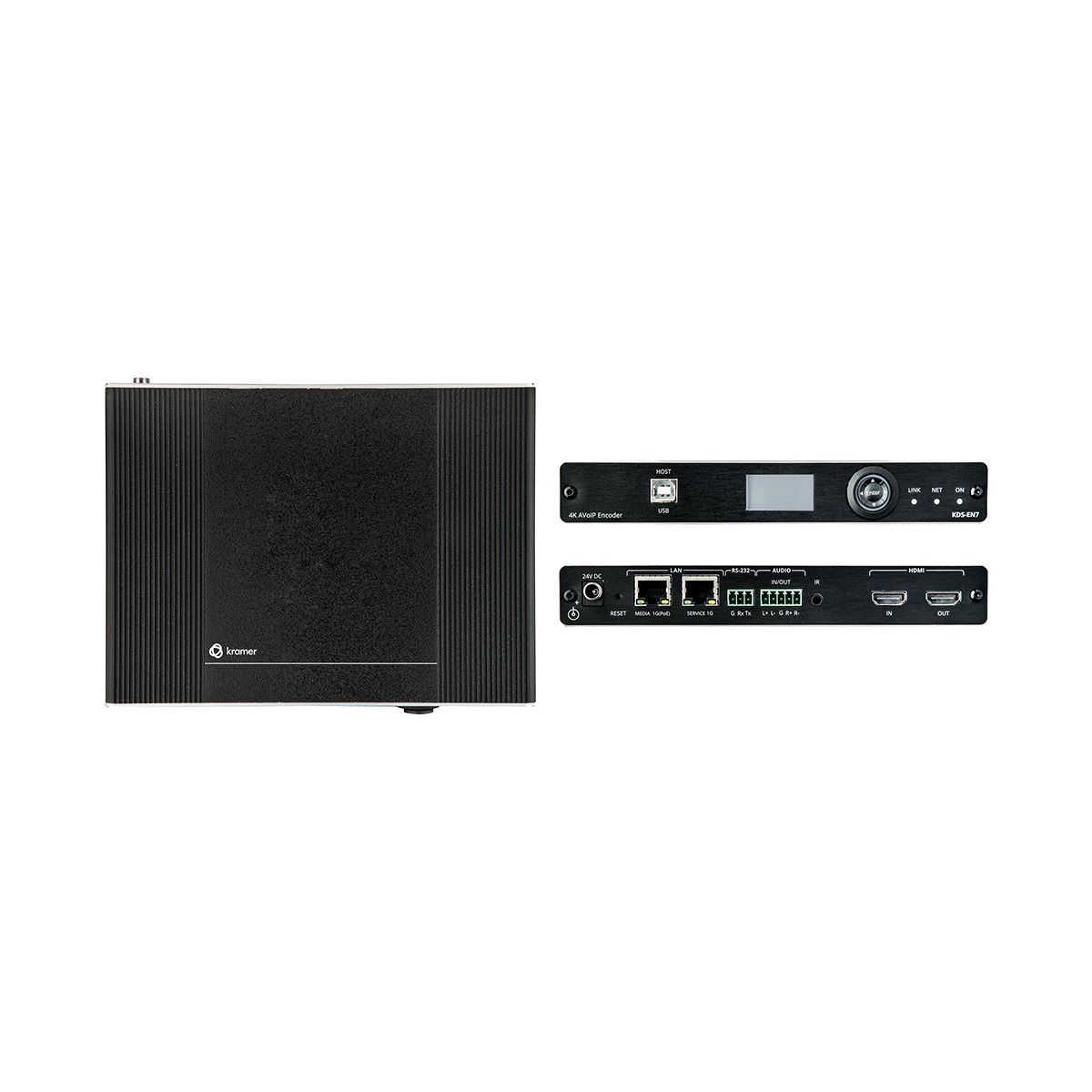

The KDS-EN7 is an advanced 4K video encoder designed to transmit HDMI video signals over Ethernet via an IP network. It also supports USB, IR, RS-232, and CEC signal transmission, providing reliable connectivity for professional AV applications.
- Outstanding end–user experience
- Ideal for large–scale deployments
- Robust security
- Simple planning and rollout
| Inputs | 1 HDMI: On a female HDMI connector |
| Outputs | 1 HDMI: On a female HDMI connector |
| Ports |
2 Ethernet: On RJ−45 connectors 1 Balanced Audio: On a 5–pin terminal block connector 1 RS-232: On a 3−pin terminal block connector 1 IR: On a 3.5mm TRS connector 1 USB Host: On a USB−B connector |
| USB Features | Integrated USB Hubs: 1-layer USB Hub when connecting to KDS−DEC7 |
| Network |
Multicast: Through RTSP (Real-Time Streaming Protocol): IGMP snooping, non–blocking, Layer 2 Unicast: Through RTSP (Real-Time Streaming Protocol) Bitrate: Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps |
| Video |
Compression Standard: JPEG-based, private stream Max Resolution: 4K@30Hz 4:4:4 |
| Video Streaming |
Compression Standard: JPEG2K-based, proprietary stream Max Input Resolution: 4K@60hz (4:2:0) Max Output Resolution: 4K@30hz (4:4:4) Max End-to-End Resolution: 4K@30hz (4:4:4) Scaler: Yes |
| Audio |
Supported Formats: LPCM, Dolby, DTS LPCM LPCM upto 7.1/24−bit/192kHz Dolby Dolby Atmos™, Dolby TrueHD, Dolby Digital Plus™, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0 DTS DTS−HD Master Audio™, DTS−HD, DTS−ES Discrete 6.1, DTS−ES Matrix 6.1, DTS Digital Surround 5.1 |
