KIT-400

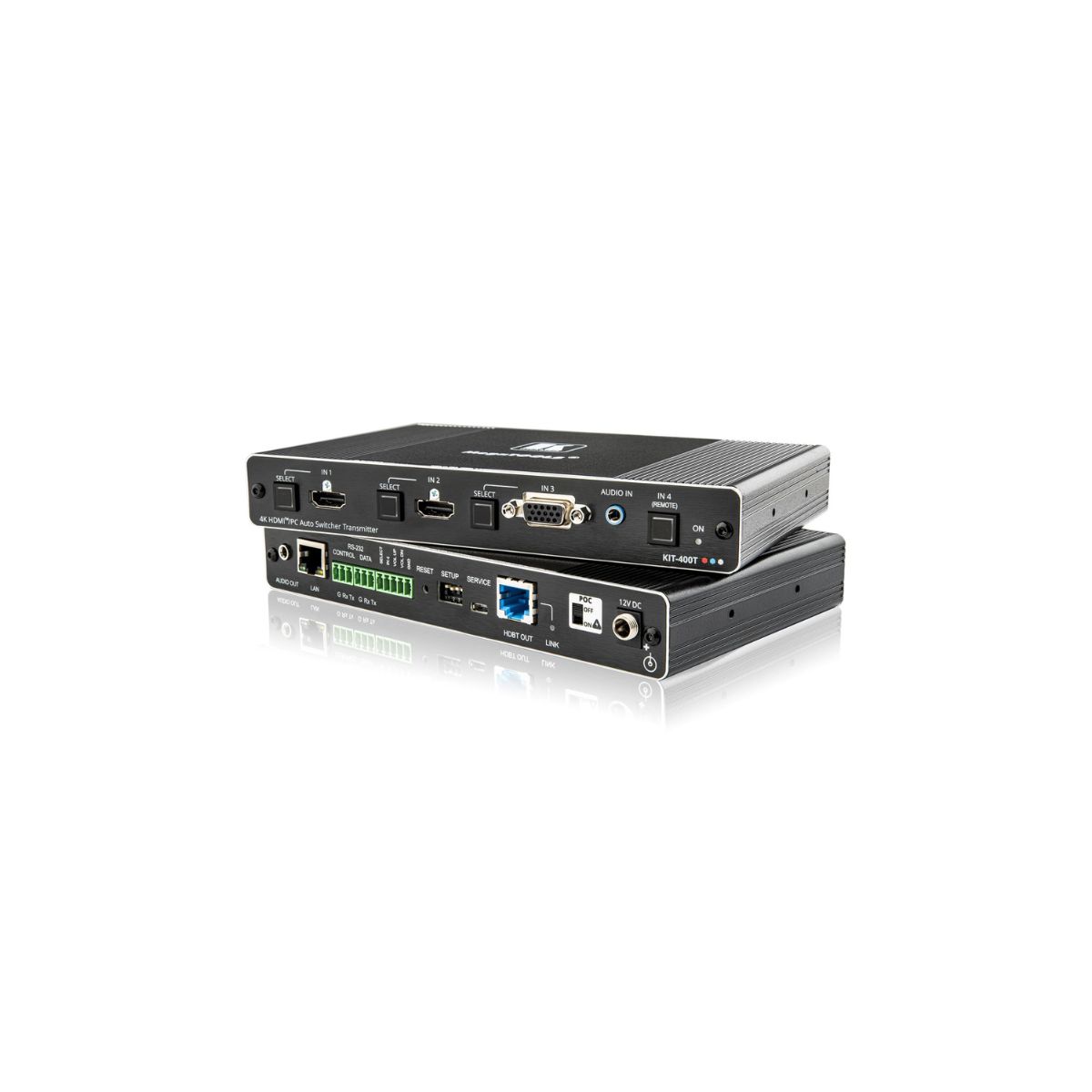

KIT−400 is a high−performance auto−switcher/scaler kit for 4K HDMI™ and VGA over long−reach HDBaseT. The kit includes the KIT−400T transmitter/switcher and the KIT−400R receiver/scaler. The KIT−400T transmitter converts the user−selected input signal into the transmitted HDBaseT signal. The KIT−400R receiver receives the HDBaseT signal, converts it to HDMI and up− or down−scales the picture to match the resolution of the HDMI monitor.

Contact to Seller
  • Resolution support up to 4K@60Hz (Receiver — 4:4:4; Transmitter — 4:2:0)
  • PoC Powered
  • Up to 40m (130ft) at 4K@60Hz (4:2:0)
  • Up to 70m (230ft): at full HD (1080P@60Hz)
  • Simple and Powerful Maestro Room Automation
  • Built–in relay and contact closure connections
  • HDCP 2.2 & 1.4 compliant
Download Product catalog

TRANSMITTER Inputs/Outputs
  • INPUTS
  • 2 HDMI: On a female HDMI connectors
  • 1 VGA: On a 15–pin HD connector
  • 1 Unbalanced Audio: On a 3.5mm mini jack
  • OUTPUTS
  • 1 HDBaseT: On an RJ–45 connector
  • 1 Unbalanced Audio: On a 3.5mm mini jack
  • PORTS
  • 1 Ethernet: On an RJ–45 connector
  • 1 Control RS–232: On a 3–pin terminal block connector
  • 1 Data RS–232: On a 3–pin terminal block connector
  • 1 Remote Contact–Closure: On a 5–pin terminal block connector
  • 1 Service USB: On a mini–USB connector for firmware upgrade

RECEIVER Inputs/Outputs
  • INPUTS
  • 1 HDBaseT: On an RJ–45 connector
  • 1 HDMI: On female HDMI connectors
  • OUTPUTS
  • 1 HDMI: On female HDMI connectors
  • 1 Balanced Audio: On a 5–pin terminal block connector
  • PORTS
  • 1 Control RS–232: On a 3–pin terminal block connector
  • 1 Data RS–232: On a 3–pin terminal block connector
  • 1 Remote Contact–Closure: On a 4 pin terminal block connector
  • 1 Relay: On a 3–pin terminal block connector
  • 1 Program USB: On a USB–A connector for firmware upgrade

Video
  • Max Data Rate (on the HDMI ports): KIT–400R: 18Gbps, KIT–400T: 10.2Gbps
  • Max Resolution (on HDMI ports): KIT–400R: 4K@60Hz (4:4:4), KIT–400T: 4K@60Hz (4:2:0)
  • HDMI Support: 4K60, CEC, xvYCC color
  • Content Protection: HDCP 1.4 and 2.2 (KIT–400R)

Extension Line
  • Up to 40m (130ft): At 4K@60Hz (4:2:0)
  • Up to 70m (230ft): At full HD (1080p@60Hz)

Extended RS-232
  • Baud Rate: 300 to 115200

Power
  • Source: 12V DC
  • Combined Consumption of Both Units: 2A (1 unit connected to 12V DC + 1 unit powered by PoC)
