KIT-500

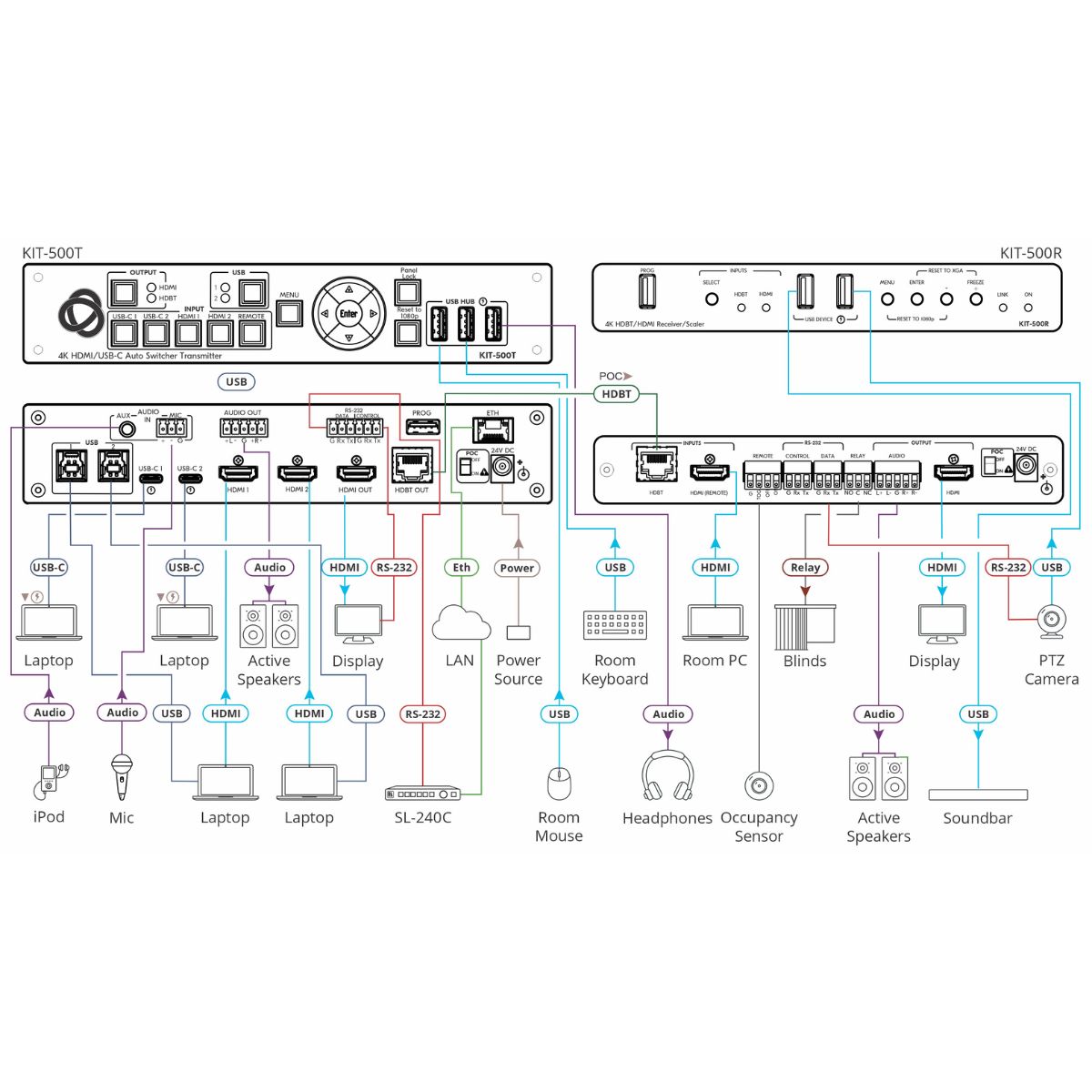

KIT 500 is a high−performance integrated matrix scaler kit, consisting of the KIT 500T matrix transmitter with two USB−C and two HDMI/USB inputs independently routable to HDMI and HDBT outputs, and the KIT 500R auto−switcher scaler receiver with an HDMI input for routing a local signal

Contact to Seller
  • AV and USB 3.0 coupled–signals switching
  • 4K60 4:4:4 scaling resolution
  • Built–in USB–C docking
  • Remote control and management
Download Product catalog

TRANSMITTER
  • INPUTS
  • 2 HDMI: On female HDMI connectors
  • 2 USB–C: On USB–C female connectors
  • 1 Mic/Unbalanced Stereo Audio: On a 3–pin terminal block connector
  • 1 AUX Unbalanced Stereo Audio: On a 3.5mm mini jack
  • OUTPUTS
  • 1 HDMI: On a female HDMI connector
  • 1 HDBaseT: On an RJ–45 connector
  • 1 Balanced Stereo Audio: On a 5–pin terminal block connector
  • PORTS

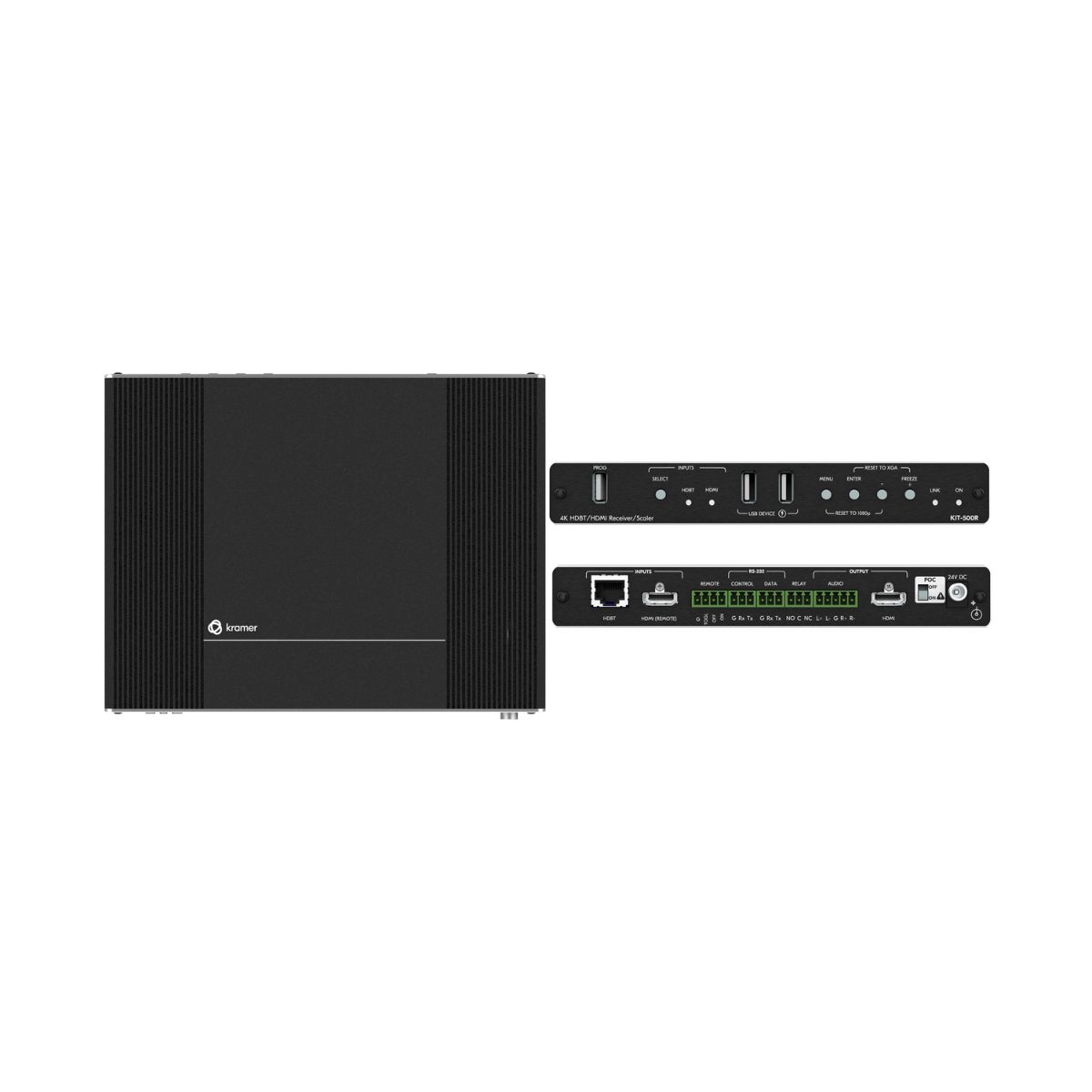

RECEIVER
  • INPUTS
  • 1 HDBaseT: On an RJ–45 connector
  • 1 HDMI: On a female HDMI connector
  • OUTPUTS
  • 1 HDMI: On a female HDMI connector
  • 1 Balanced Stereo Audio: On a 5–pin terminal block connector
  • PORTS
  • 1 Control RS–232: On a 3–pin terminal block connector
  • 1 Data RS–232: On a 3–pin terminal block connector
  • 3 Remote Contact–Closure: On a 4 pin terminal block connector
  • 1 Relay: On a 3–pin terminal block connector
  • 2 USB (DEVICE): On USB 2.0 type A connectors
  • 1 Program USB: On a USB–A connector for firmware upgrade
  • Integrated USB Hubs: 1

USB Features
  • Data Rate: USB 3.0 Ports: 5Gbps
  • Data Rate: USB 2.0 over HDBT: Up to 127Mbps (out of max 480Mbps)

Extension Line
  • Up to 40m (130ft): At 4K@60Hz (4:2:0)
  • Up to 70m (230ft): At full HD (1080p@60Hz)
  • Compliance: HDBaseT 2.0

Extended RS-232
  • Baud Rate: 300 to 115200

Power
  • Source: 24V DC, 5A
  • Combined Consumption of Both Units: 24V DC, 3.7A
