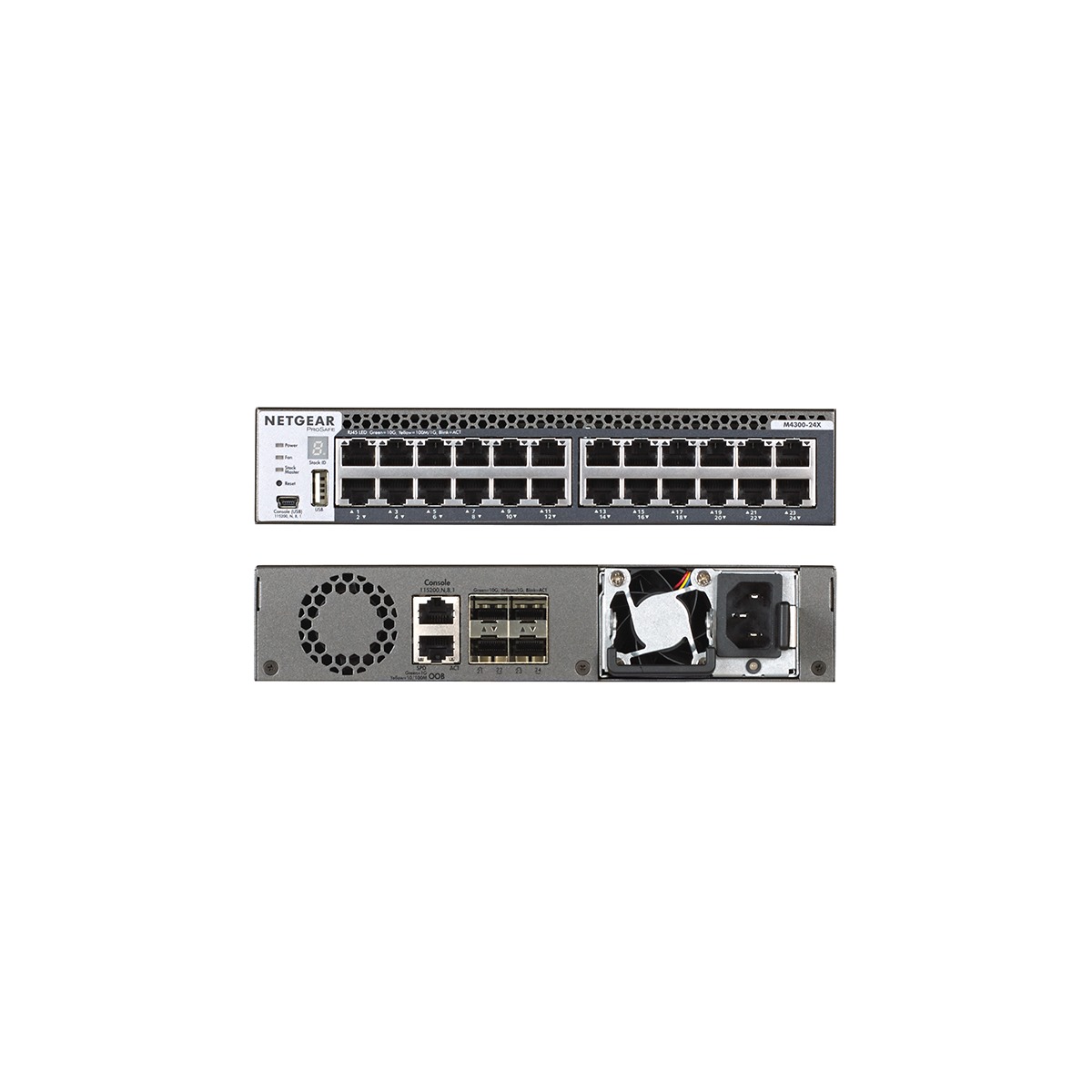

The M4300-24X is a NETGEAR managed backbone switch designed for multi-tier AVoIP deployments. It features 24 10G ports, 4 shared 10G SFP+ ports, and a 250W power supply for reliable, high-speed network connectivity.
-
24 × 10GBASE-T Ports – High-speed 10 Gigabit Ethernet connectivity.
-
10G SFP+ Uplink Ports – Support high-speed optical fiber connectivity.
-
480 Gbps Switching Capacity – Enables high-bandwidth network traffic handling.
-
357 Mpps Throughput – Supports efficient packet forwarding.
-
AVoIP Backbone Support – Designed for multi-tier Audio-Video over IP deployments.
-
Dedicated Management Port – 1 × 1G out-of-band Ethernet port.
-
USB Connectivity – Supports local storage, logs, configuration, and image files.
-
Low Latency – 1.827 µs latency for 10G copper connections.
-
250W Power Supply – Includes an integrated 250W power supply unit.
-
Compact Rack-Mount Design – Half-width, 1U enclosure for space-efficient installation.
| Ports |
24 10GBASE-T: On RJ−45 connectors 2 10GBASE-X SFP+ (shared): On optical connectors 1 Out-of-Band 1G Ethernet: On an RJ–45 connector for unit management 1 Console: On an RJ−45 connector |
| General |
Switching Fabric: 480 Gbps Throughput: 357 Mpps Latency for 10G Copper: 1.827μs Acoustic Noise (ANSI-S10.12) @ 25°C ambient (77°F): 37dB |
| Power | Source: 1 x 250W power supply (included) |
| Enclosure |
Size: ½ 19” (W) x 1U (H) Cooling: Fan |
| Accessories | Included 1−unit rack−mounting kit − one long bracket, one regular (short) bracket, and screws (for front posts). 2-unit rack-mounting kit − one pair of inside and outside middle mounts (for combining two half−width M4300 switches) |
| Product Dimensions | 21.20cm x 34.50cm x 4.40cm (8.35" x 13.58" x 1.73" ) W, D, H |
