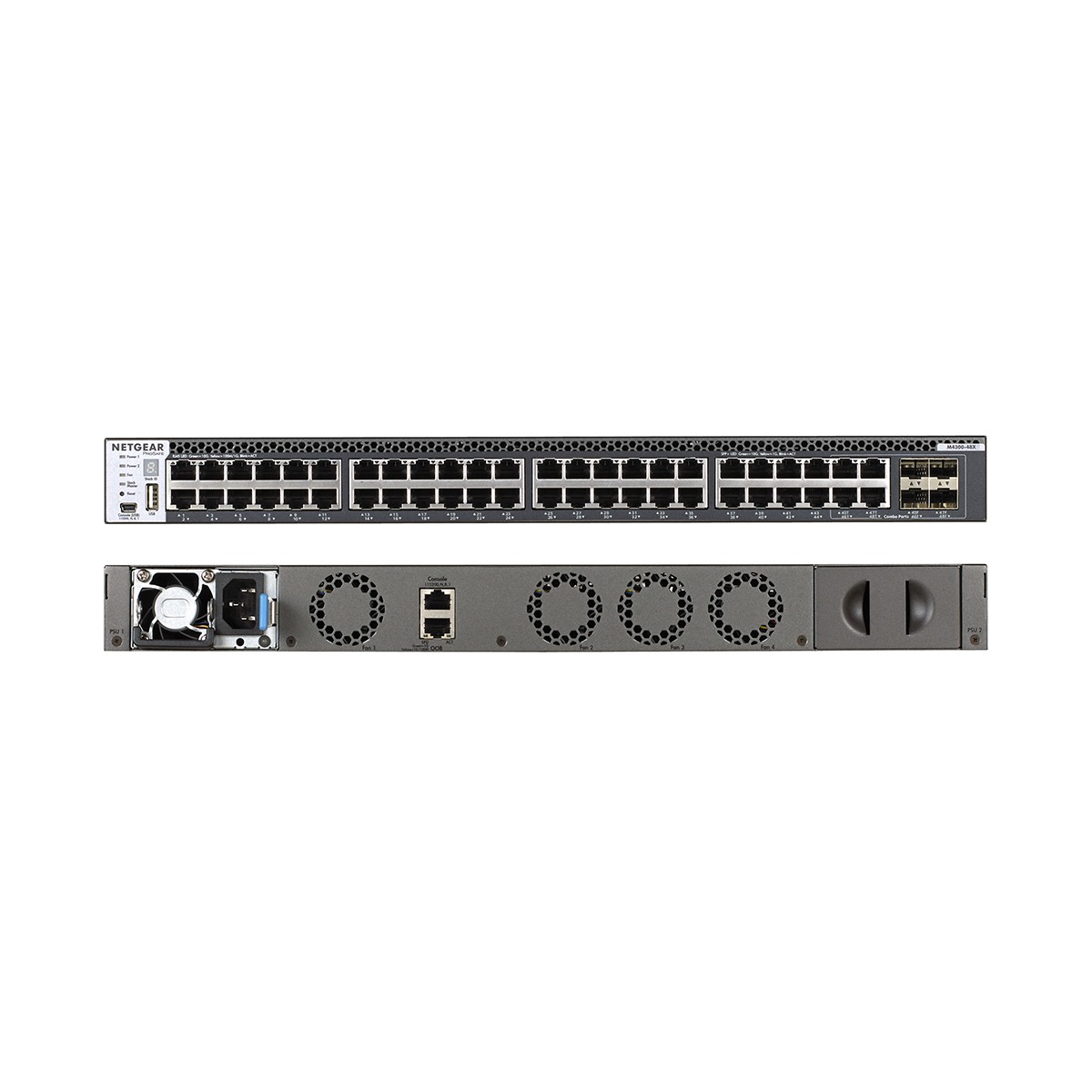

M4300-48X NETGEAR Managed Switch

The NETGEAR M4300-48X is a 48-port managed switch designed for 10G AV over IP deployments. It features 48 10GBASE-T copper RJ-45 ports and 4 shared 10GBASE-X fiber SFP+ ports, providing high-speed network connectivity for professional AV applications. The switch includes a 250W power supply unit.

Contact to Seller

  • 48-port managed switch designed for 10G AV over IP deployments.

  • Features 48 × 10GBASE-T copper RJ-45 ports.

  • Includes 4 shared 10GBASE-X fiber SFP+ ports.

  • Provides high-speed network connectivity for AV over IP systems.

  • Includes a 250W power supply unit.

Download Product catalog
Ports

48 10GBASE-T Ethernet: On RJ–45 connectors

4 10GBASE-X (shared): On SFP+ connectors

1 Out-of-Band 1G Ethernet: On an RJ–45 connector for unit management

1 USB: On a mini USB connector for unit management
General

Switching Fabric: 960Gbps

Throughput: 714 Mpps

Latency for 10G RJ-45: < 2.41 μs

Latency for 10G SFP+: < 1.51 μs

Acoustic Noise (ANSI-S10.12) @ 25°C ambient (77°F): 40.3dB
Power

Source: 250W–PSU included

Consumption: 237.2W max
Enclosure

Size: 19” (W) x 1U (H)

Cooling: Fan
Accessories Included: Two regular (short) brackets and screws for two-post rack mount (for front posts)
