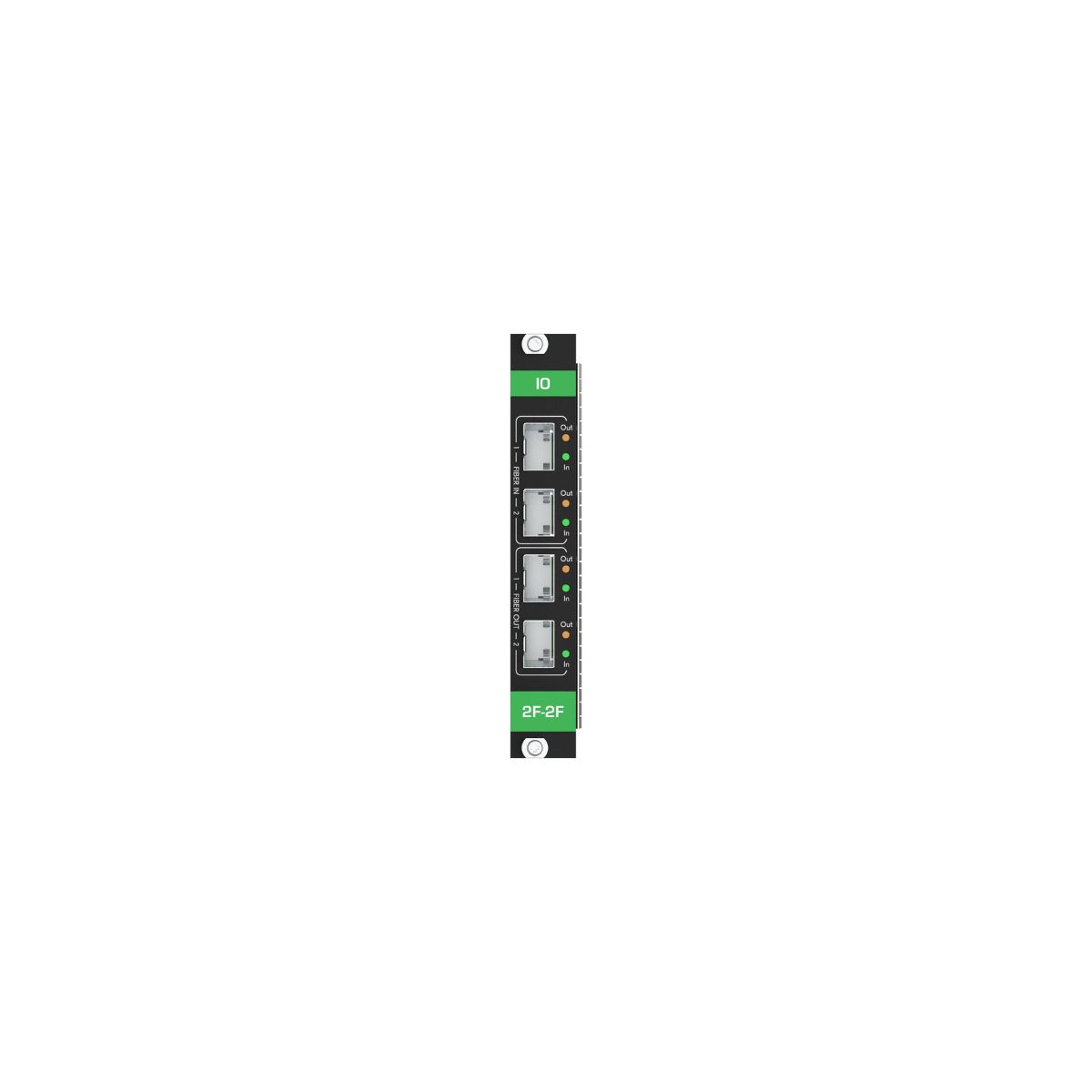

MC3-2F-2F

MC3−2F−2F is a high−performance two−port input and two−port output fiber card which is part of the compatible modular matrices multi−signal cards family. MC3−2F−2F can flexibly occupy any of the matrix card slots. Its input signals are independently switched by the modular matrix to any of the matrix output ports, and any matrix input signals are independently switched to its output ports.

Contact to Seller
  • Multi–mode or Single–mode Fiber
  • Up to 33km ultra–reach extension
  • HDMI & Control extension
  • Up to 4K60 4:4:4 Resolution
Download Product catalog

Inputs
  • 2 Fiber Optic: On LC connectors

Outputs
  • 2 Fiber Optic: On LC connectors

Extension Line
  • Optical Fiber: Multi–mode (MM) or single–mode (SM)
  • Optical Module: Kramer 10Gbps SFP+ IEEE 802.3ae compliant modules (MM is included)

Multi-mode Line
  • Compliance: G.651.1 OFNR fiber
  • Max Reach over OM3 MM Fiber: 3km (1.8 miles)
  • Note: When using Kramer optical modules

Single-mode Line
  • Compliance: G.652D OFNR fiber
  • Max Reach over OS1 SM Fiber: 33km (20.5 miles)
  • Note: When using Kramer optical modules

STANDARDS COMPLIANCE
  • Laser Safety Compliance: Class 1
  • SFP Regulatory Certifications: FDA CDRH 21 CFR 1040 and Laser Notice No. 50, UL and CUL EN60950–2:2007, RoHS6, EMC EN 55022 and EN 55024, IEC 62368–1 and IEC 60825–1 and — 2
