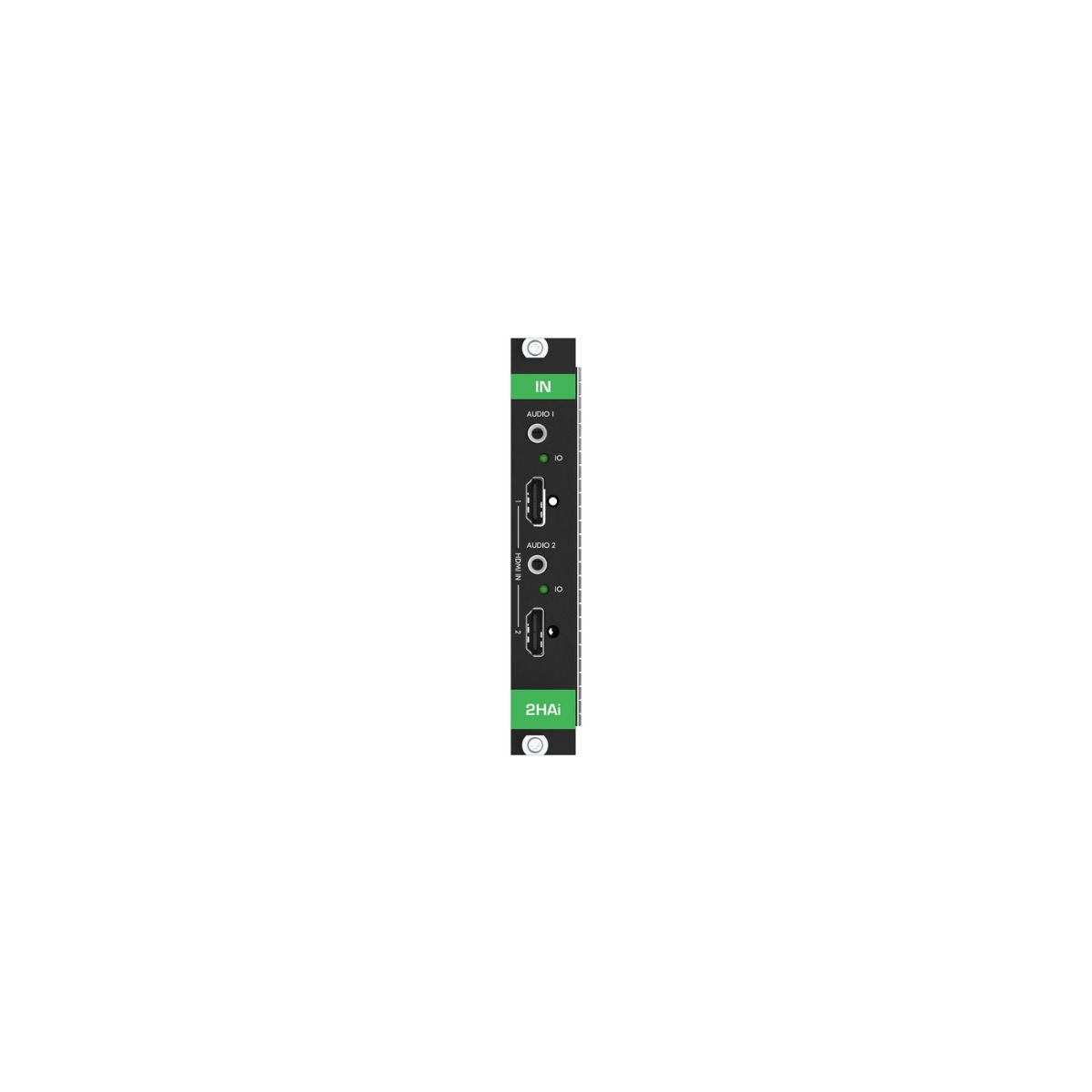

MC3-2HAi

MC3−2HAi is a high−performance two−port HDMI input card which is part of the compatible modular matrices multi−signal cards family. MC3−2HAi can flexibly occupy any of the matrix card slots and its input signals are independently switched by the modular matrix to any of the matrix output ports.

Contact to Seller
  • Max. Resolution — 4K@60Hz (4:4:4)
  • 2 Bi–directional Analog Audio Ports
Download Product catalog

Inputs
  • 2 HDMI: On female HDMI connectors

Ports
  • 2 Unbalanced Analog Audio: On 3.5mm mini jacks

Video
  • Max Data Rate: 18Gbps (6Gbps per graphics channel)
  • Max Resolution: 4K@60Hz (4:4:4)
  • HDMI Support: HDR 10, 3D, Deep Color, x.v.Color™, ARC, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, and 7.1 multi–channel audio
  • Content Protection: HDCP 2.2/1.4 compliant

Power
  • Consumption: 5W

Environmental Conditions
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: –40° to +70°C (–40° to 158°F)
  • Humidity: 10% to 90%, RHL non–condensing

Regulatory Compliance (Standards Compliance)
  • Safety: CE
