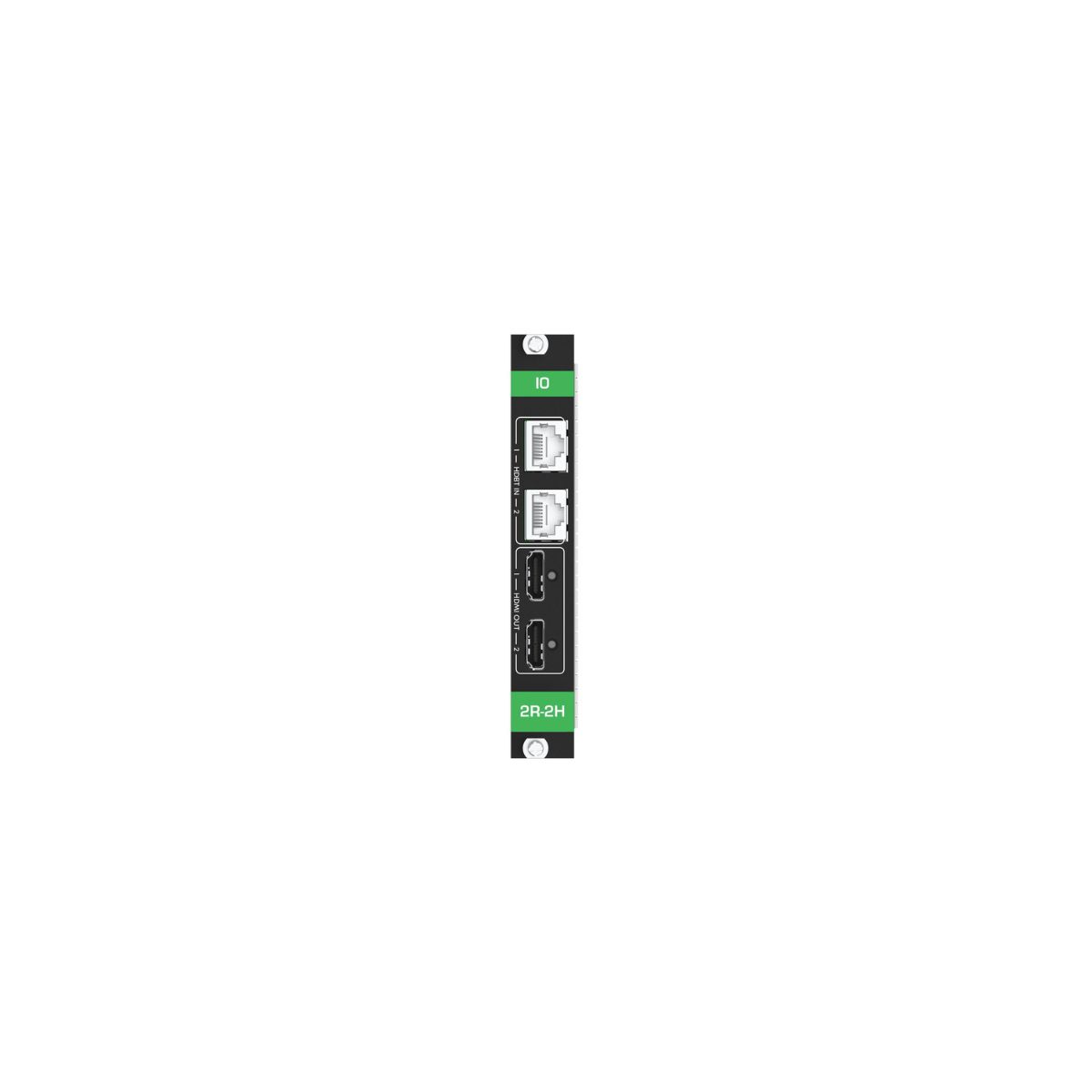

MC3-2R-2H

MC3−2R−2H is a high−performance two−port HDBaseT 3.0 input and two−port HDMI output card which is part of the compatible modular matrices multi−signal cards family. MC3−2R−2H can flexibly occupy any of the matrix card slots. Its input signals are independently switched by the modular matrix to any of the matrix output ports, and any matrix input signals are independently switched to its scaling output ports.

Contact to Seller
  • Dual Scaling HDMI Output Ports
  • Dual HDBT 3.0 100m Input Ports
  • Fast <1sec Outputs Switching
  • Uncompressed 4K@60Hz (4:4:4) HDMI extension
  • 1Gbps Ethernet, USB 2.0, RS–232 & IR Extension
  • PoE-enabled HDBT Ports
Download Product catalog

Inputs
  • 2 HDBaseT: On RJ–45 connectors

Outputs
  • 2 HDMI: On HDMI connectors

Extension Line
  • Reach: Up to 100m (330ft)
  • Reach: Note: when using Kramer HDBaseT cables
  • Standards Compliance: HDBaseT 3.0

Video
  • Max Data Rate: 18Gbps (6G per channel)
  • Max Resolution: 4096x2160@60Hz (4:4:4) 24bpp

Extended USB
  • Data Rate: Up to 480Mbps
  • Throughput: Up to 12Mbps
  • Device Type: HID
  • Standards Compliance: 1.1 and 2.0 USB

Extended Ethernet
  • Max Data Rate: 1 Gbps
