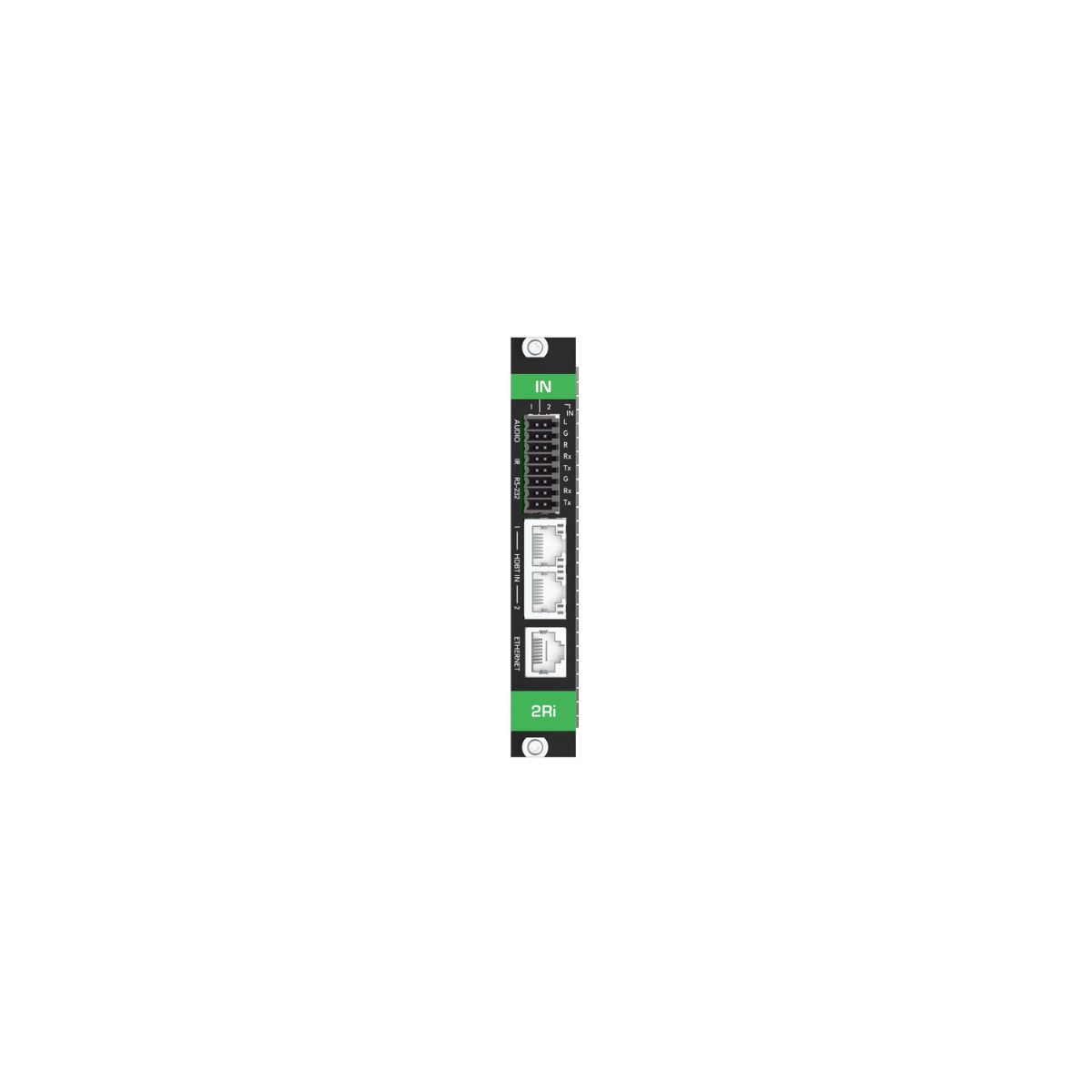

MC3-2Ri

MC3−2Ri is a high−performance two−port HDBaseT card which is part of the compatible modular matrices multi−signal cards family. MC3−2Ri can flexibly occupy any of the matrix card slots, and its input signals are independently switched by the modular matrix to any of the matrix output ports.

Contact to Seller
  • Max. Resolution — 4K@60Hz (4:4:4)
  • 2 Bi–directional Analog Audio Ports
  • Ethernet, RS–232 & IR Extension
  • PoE providing enabled
Download Product catalog

Inputs
  • 2 HDBaseT: On RJ–45 connectors

Ports
  • 2 Unbalanced Audio: On a 6–pin terminal block connector
  • 2 RS-232: On a 6–pin terminal block connector
  • 2 IR: On a 4–pin terminal block
  • 1 Ethernet: On an RJ–45 connector

Video
  • Max Data Rate: Up to 18Gbps (6Gbps per graphic channel), Up to 10Gbps over CAT cable
  • Standard Compression Max Resolution: 4096x2160@60Hz (4:4:4) 24bpp
  • High Compression Max Resolution: 3840x2160@60Hz (4:4:4) 24bpp
  • No-Compression Max Resolution: 4096x2160@60Hz (4:2:0) 24bpp
  • Compliance: HDCP 2.2

Extension Line
  • Standards Compliance: HDBaseT 3.0
  • Compression: CSC
  • Standard Compression: Up to 100m (330ft) at 4K@60Hz (4:4:4), 4K@60Hz (4:2:0) or 4K@30Hz (4:4:4)
  • Up to 180m (590ft) at full HD (1080p @60Hz 24bpp)
  • High Compression: Up to 100m (330ft) at 4K@60Hz (4:4:4), or 4K@60Hz (4:2:0)

Extended Ethernet
  • Bandwidth: Up to 100Mbps

Extended RS-232
  • Baud Rate: 300 to 115200
