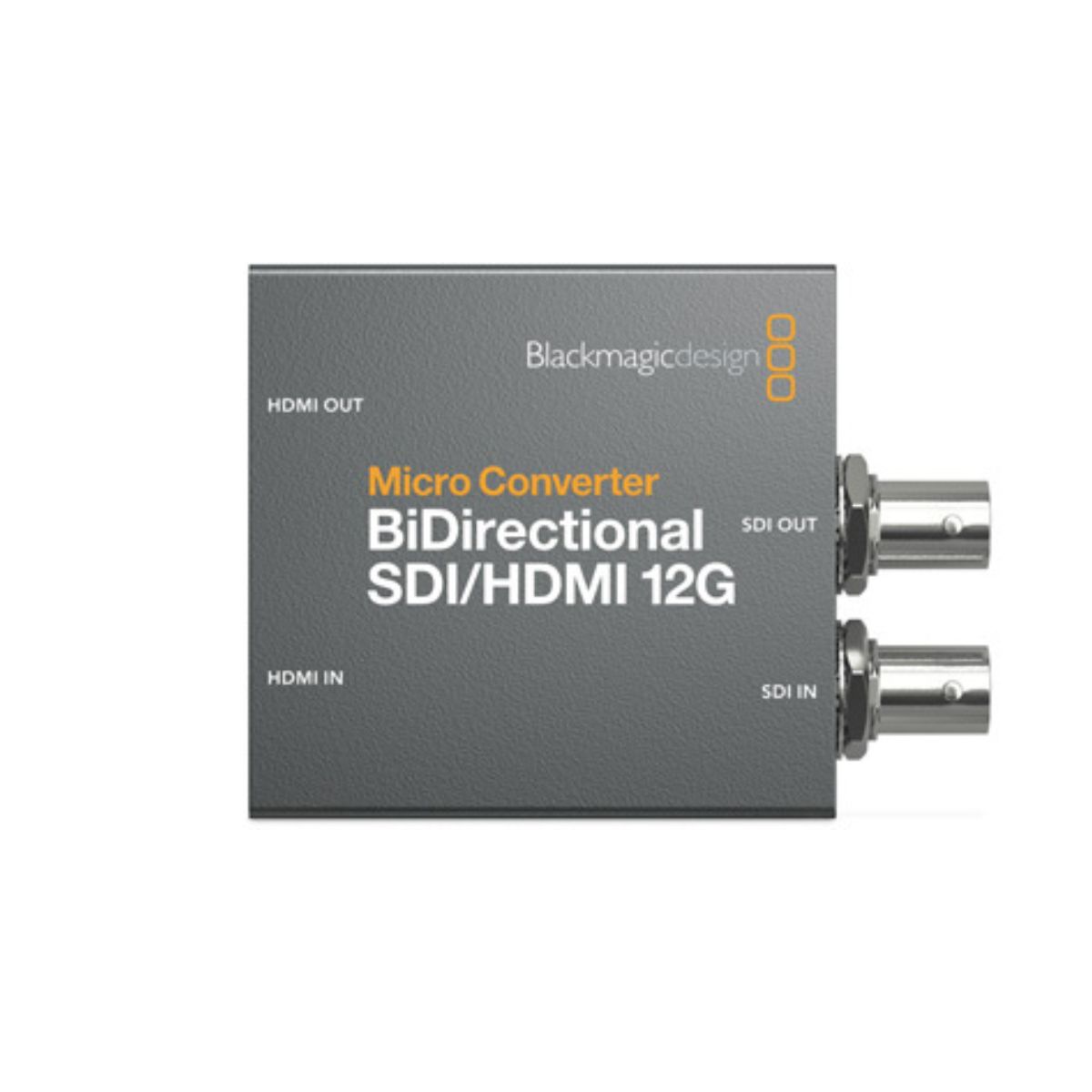

Now you can convert SDI to HDMI and HDMI to SDI in all SD, HD, and Ultra HD formats up to 2160p60! Each conversion direction can be a different SD, HD, or Ultra HD video standard; it’s like getting two converters in one! The all-metal, durable design is perfect for live production and broadcast. Plus, it’s small enough to be hidden and used anywhere. It can be powered from any USB-C socket!

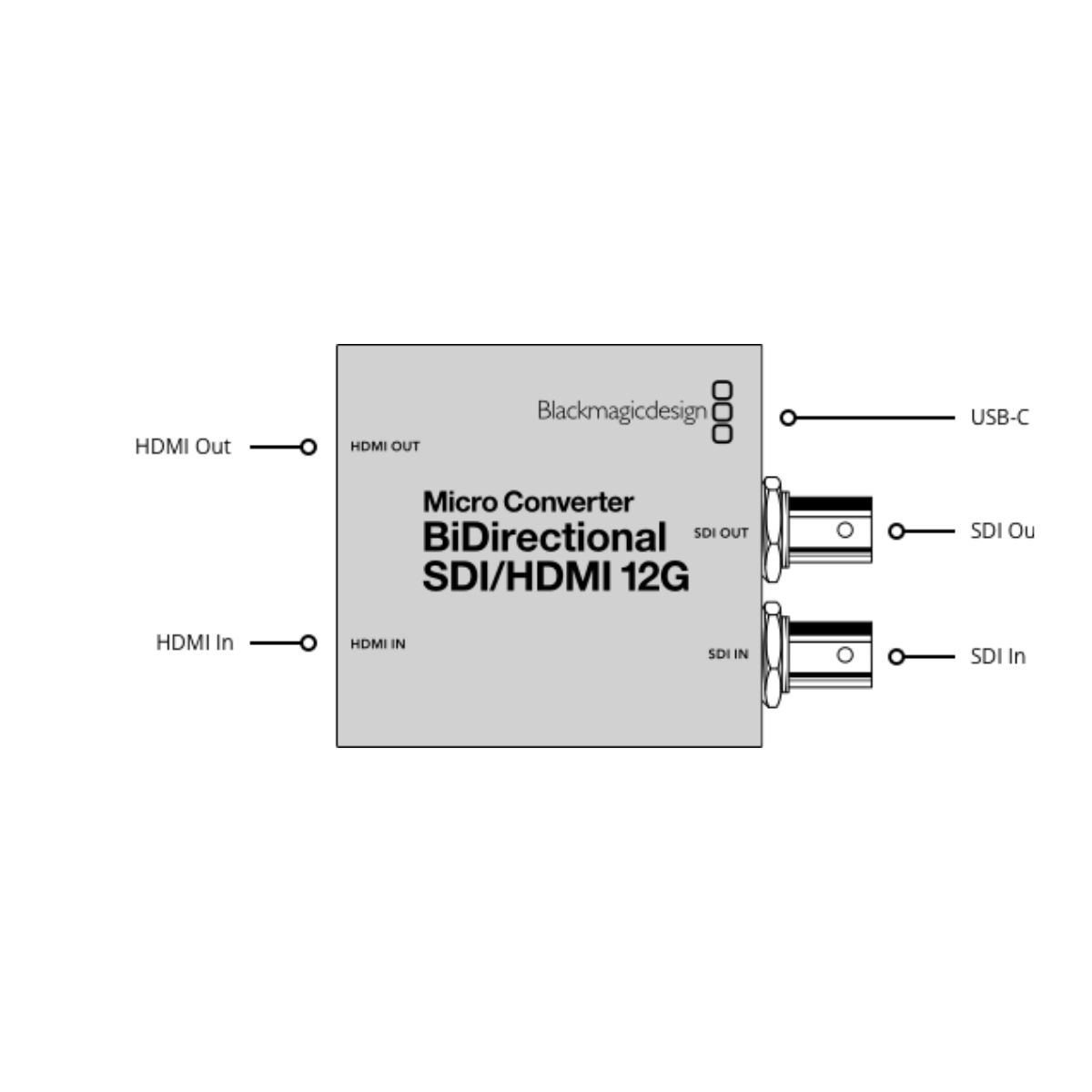

Connections
|
SDI Video Inputs |
1 |
|
SDI Video Outputs |
Automatically matches the HDMI video input. |
|
HDMI 2.0 Video Inputs |
1 x type A. |
|
HDMI 2.0 Video Outputs |
1 x type A. |
|
SDI Rates |
270Mb, 1.5G, 3G, 6G, 12G. |
|
Multi Rate Support |
Auto detection of SD, HD, 2K, Ultra HD, and 4K. |
Standards
|
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
|
SDI Color Precision |
4:2:2. A 33-point LUT can be loaded via the software utility for calibrating or improving monitor color. |
|
SDI Color Space |
YUV |
|
SDI Auto Switching |
Automatically detects SD, HD, 2K DCI, Ultra HD, and 4K DCI. Levels A and B are automatically detected on 3G-SDI input and user selectable on 3G-SDI output. |
