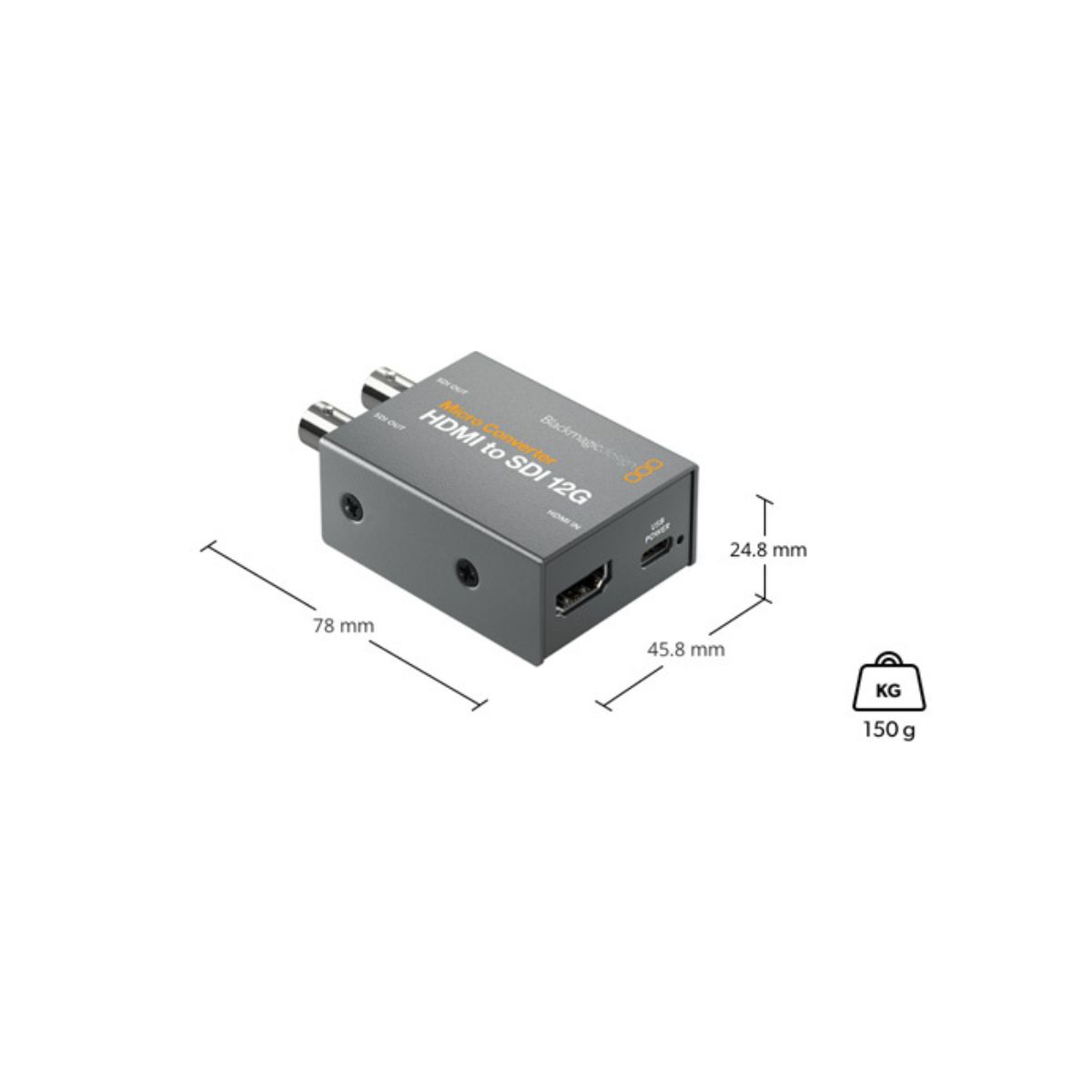

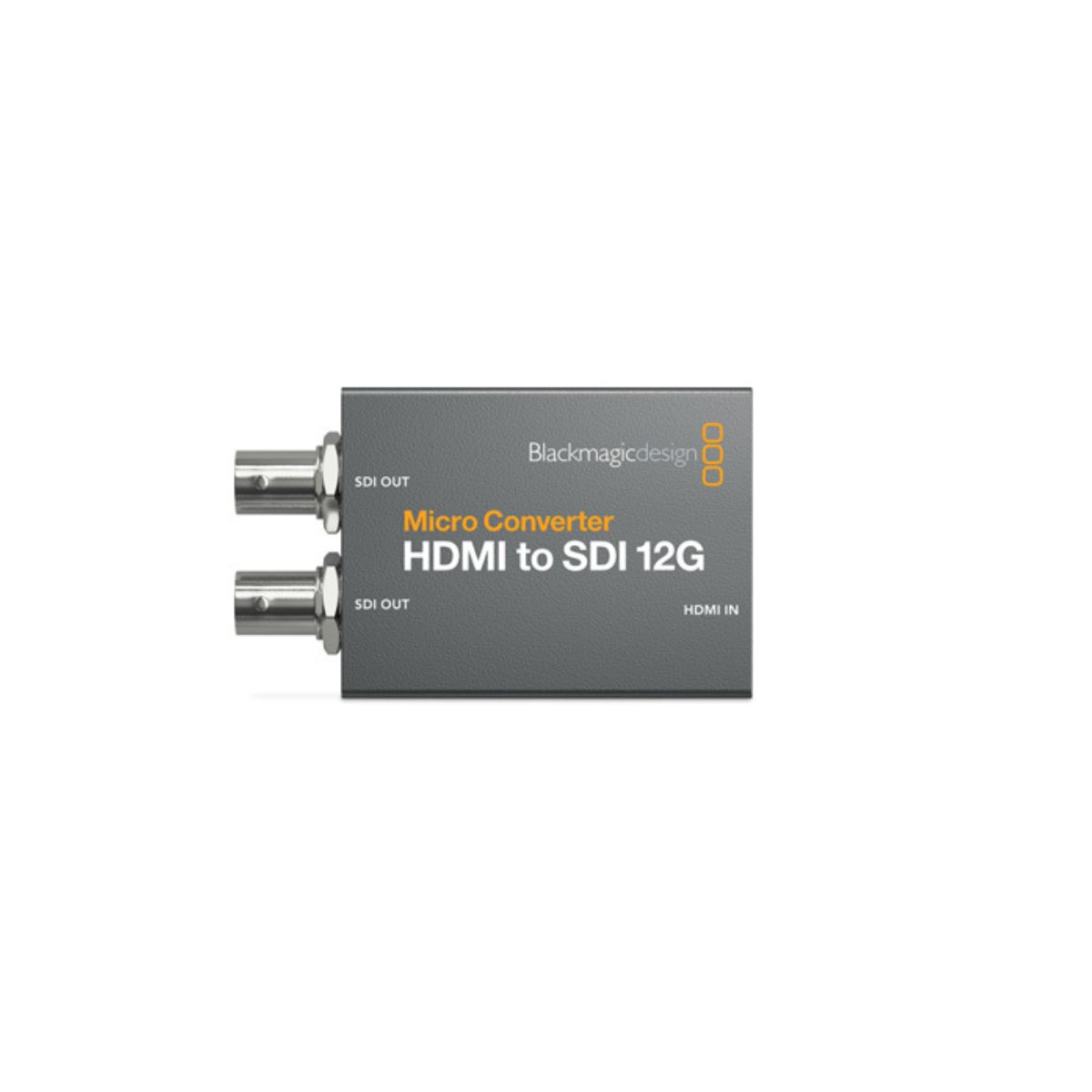

The world’s smallest HDMI to 12G-SDI broadcast quality converter! Blackmagic Micro Converter HDMI to SDI 12G is a miniaturized broadcast-quality video converter that’s perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 12G-SDI outputs, which can be set to level A or B for 3G-SDI signals. Micro Converters feature full-size HDMI and professional 12G-SDI connections for working with all NTSC, PAL, 720p, 1080p, 1080i, 2160p rates, including 4Kp24/ 47.95/48 DCI. You get a universal power supply with international AC plug adapters, or you can power it over USB from a laptop or a mobile phone charger.

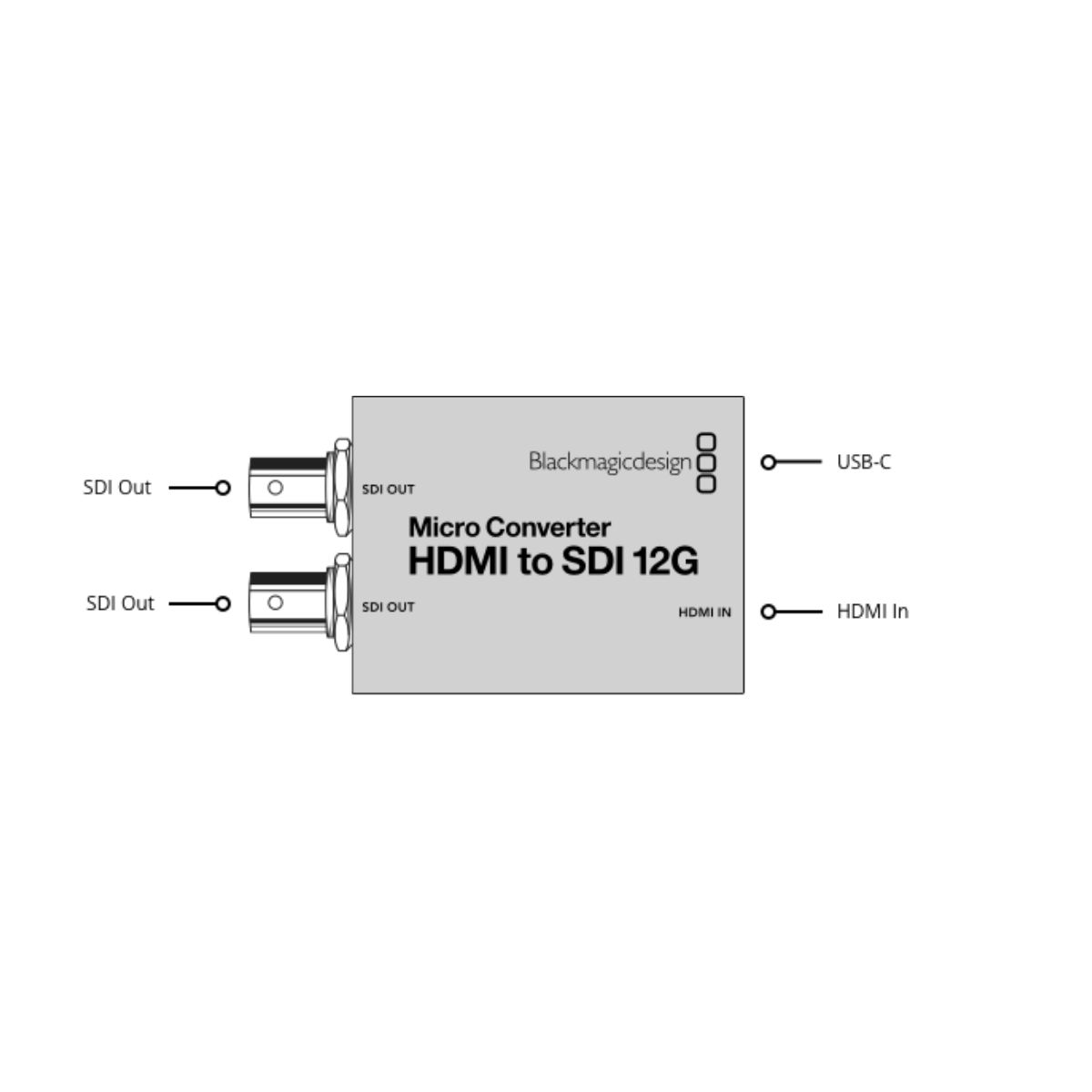

Connections
|
SDI Video Outputs |
2
Automatically matches the HDMI input. |
|
HDMI 2.0 Video Inputs |
1 x type A. |
|
SDI Rates |
270Mb, 1.5G, 3G, 6G, 12G. |
|
Multi Rate Support |
Auto detection of SD, HD, 2K, Ultra HD, and 4K. |
|
Updates, Configurations, and Power |
USB Type‑C. |
|
Reclocking |
Yes |
Standards
|
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
|
SDI Color Precision |
4:2:2. A 33-point LUT can be loaded via the software utility for calibrating or improving monitor color. |
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
|
SDI Auto Switching |
Automatically detects SD, HD, Ultra HD, and 4K DCI. Levels A and B are user-selectable on output for 3G‑SDI. |
|
HDMI Color Precision |
4:2:2. A 33-point LUT can be loaded via the software utility for calibrating or improving monitor color. |
