The world’s smallest 12G-SDI to HDMI broadcast quality converter! Blackmagic Micro Converter SDI to HDMI 12G is a miniaturized broadcast-quality video converter that’s been specifically designed for professional monitoring. It includes a 33-point 3D LUT for color calibrating any monitor, projector or television. Micro Converters feature full-size HDMI and professional 12G-SDI connections for working with all NTSC, PAL, 720p, 1080p, 1080PsF, 1080i, and 2160p rates, including 4K DCI at 24/47.95/48. You can power it over USB from a television or a mobile phone charger!
|

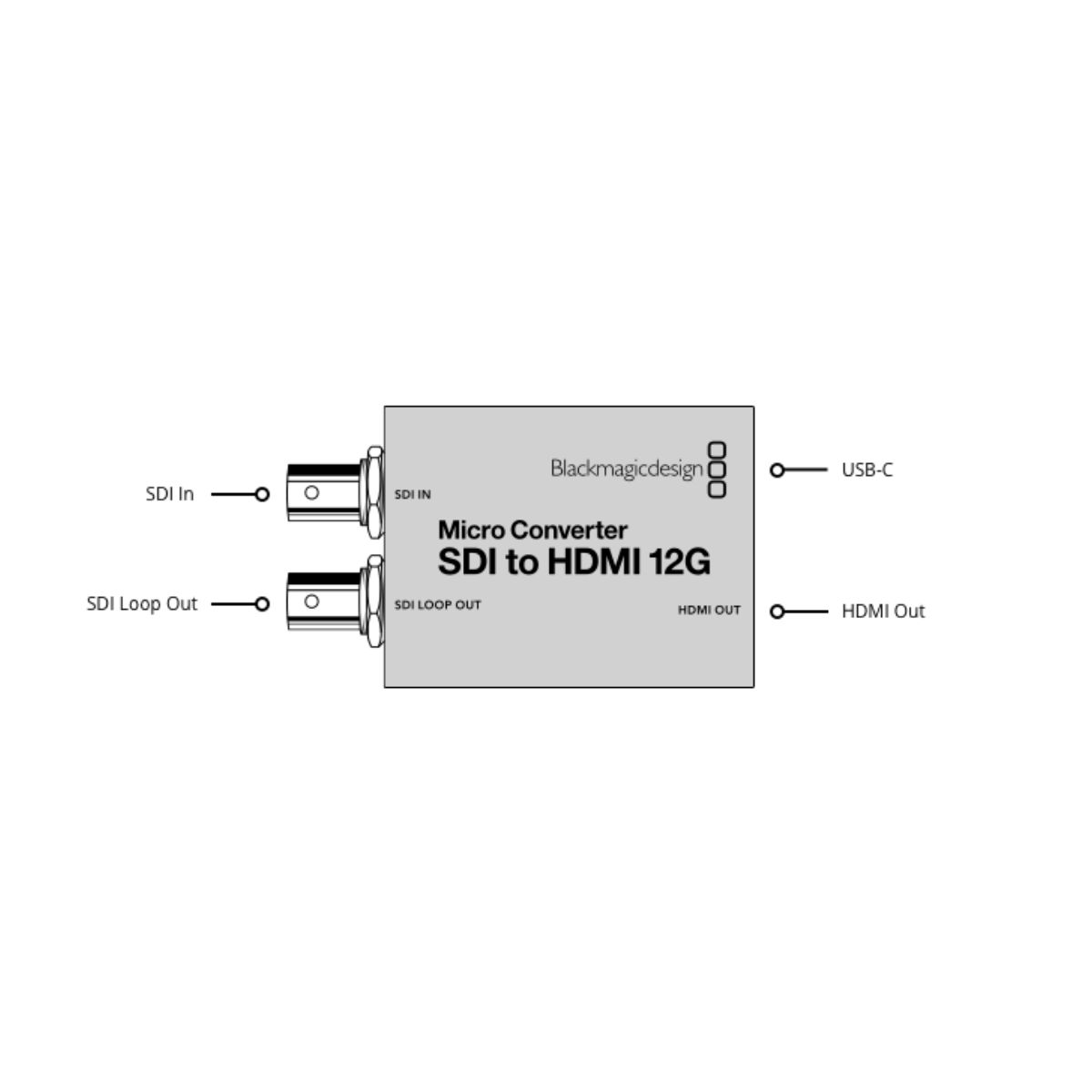

SDI Video Inputs |
1 |
|
SDI Video Outputs |
1 x loop out. |
|
HDMI 2.0 Video Outputs |
1 x type A. |
|
SDI Rates |
270Mb, 1.5G, 3G, 6G, 12G. |
|
Multi Rate Support |
Auto detection of SD, HD, 2K, Ultra HD, and 4K. |
|
Updates, Configurations, and Power |
USB Type‑C. |
|
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
|
SDI Video Rates |
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD, and 4K DCI. |
|
SDI Color Precision |
4:2:2. A 33-point LUT can be loaded via the software utility for calibrating or improving monitor color. |
|
SDI Auto Switching |
Automatically detects SD, HD level A or B for 3G‑SDI, 2K DCI, Ultra HD, and 4K DCI. |
