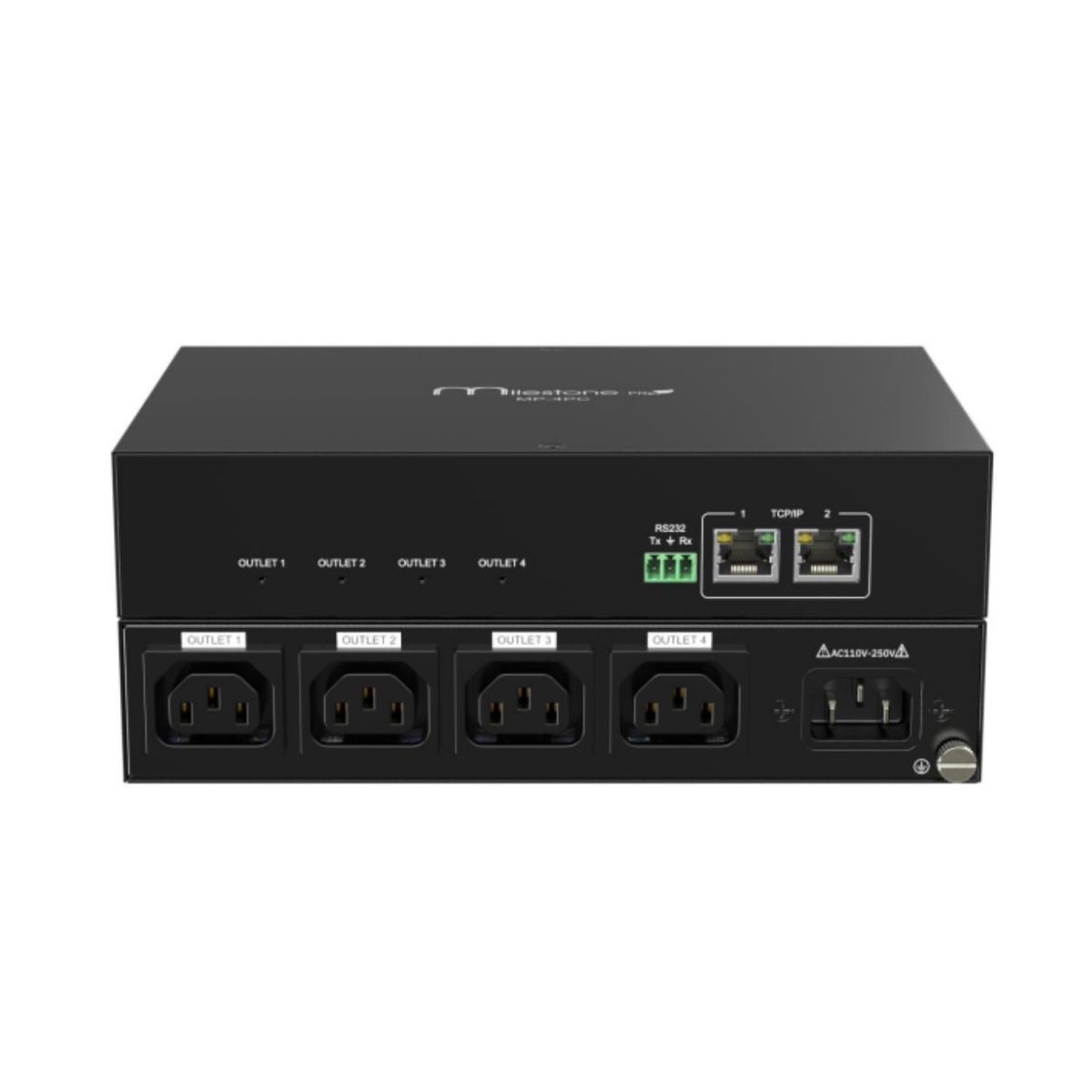

MP-4PC

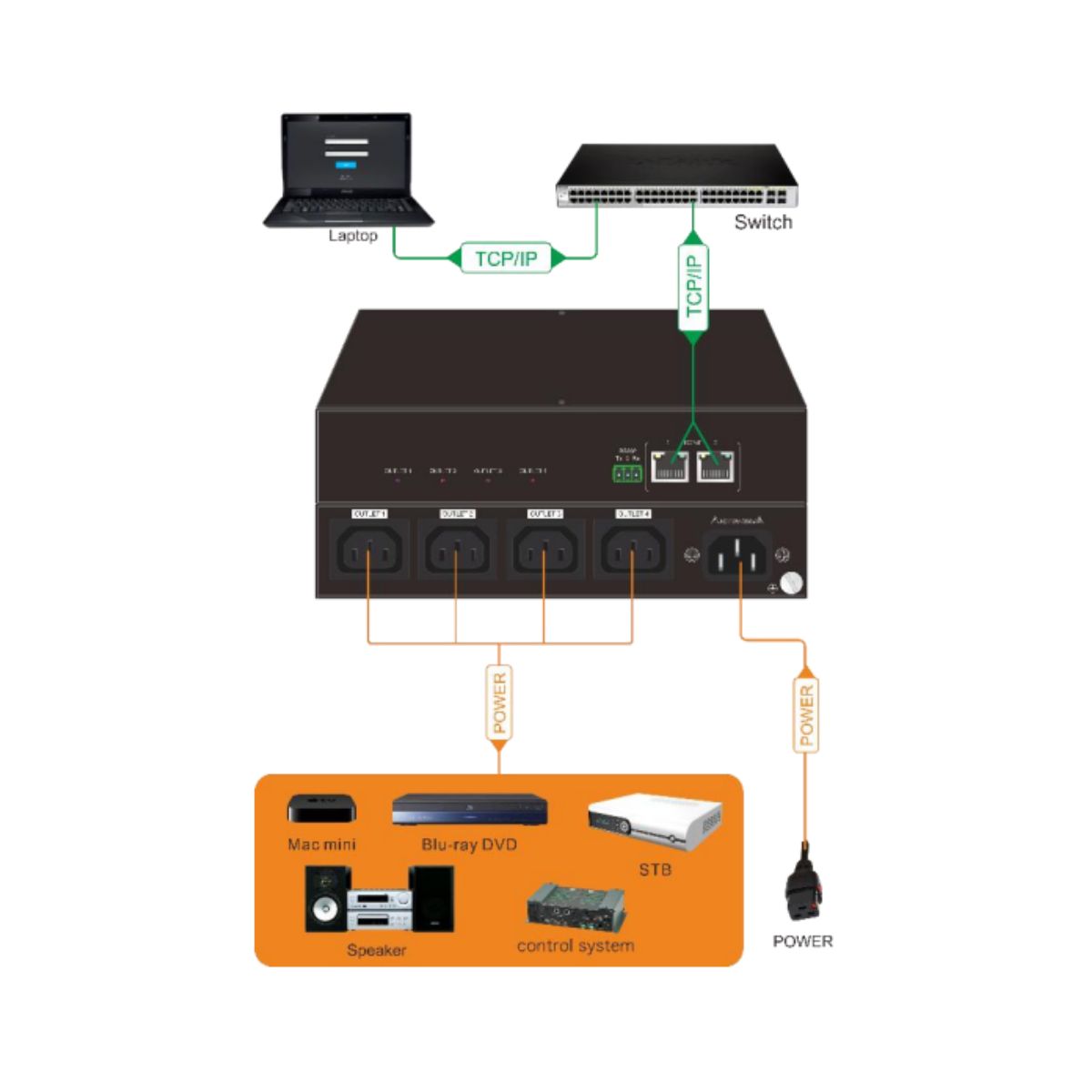

Thanks for choosing the 4 Ports Power Controller with redundant TCP/IPport. The controller is designed for power control and metering. It supports up to AC110V~250V, 10A IEC C14 power input and four 10A IEC C13 outlets. The controller supports power control and metering via TCP/IP, which providemultiplenetwork protocols and IoT protocols
- Switch control, voltage, current, and power consumption metering
- 2x TCP/IP network ports to provide continuous network services
- Overload protection, wiring error protection, and remote login verification.
- Supports multiple network protocols and IoT protocols.
- Controllable via RS-232 and Web-GUI
| Voltage | AC 110-250V |
| Frequency | 50/60Hz |
| Current | Max. 10A |
| Connector | 1x IEC C14 |
| Output | |
| Voltage | AC 110-250V |
| Frequency | 50/60Hz |
| Current | Max. 10A per port |
| Connector | 4x IEC C13 |
| Control | |
| Mode | TCP/IP, RS-232 |
| Connector | 2x RJ45, 1x 3-pin phoenix terminal |
| General | |
| Voltage Range | 110-250V |
| Current Range | 0-10A |
| Frequency Range | 45-65Hz |
| Power Factor | 0-1 |
| Operation Temperature | 5℃ ~ +55℃ |
| Storage Temperature | -20℃ ~ +70℃ |
| Standby Power Consumption | 1.53W |
| Dimension (W*H*D) | 218mm x 42.5mm x 153mm |
| Net Weight | 970g |
