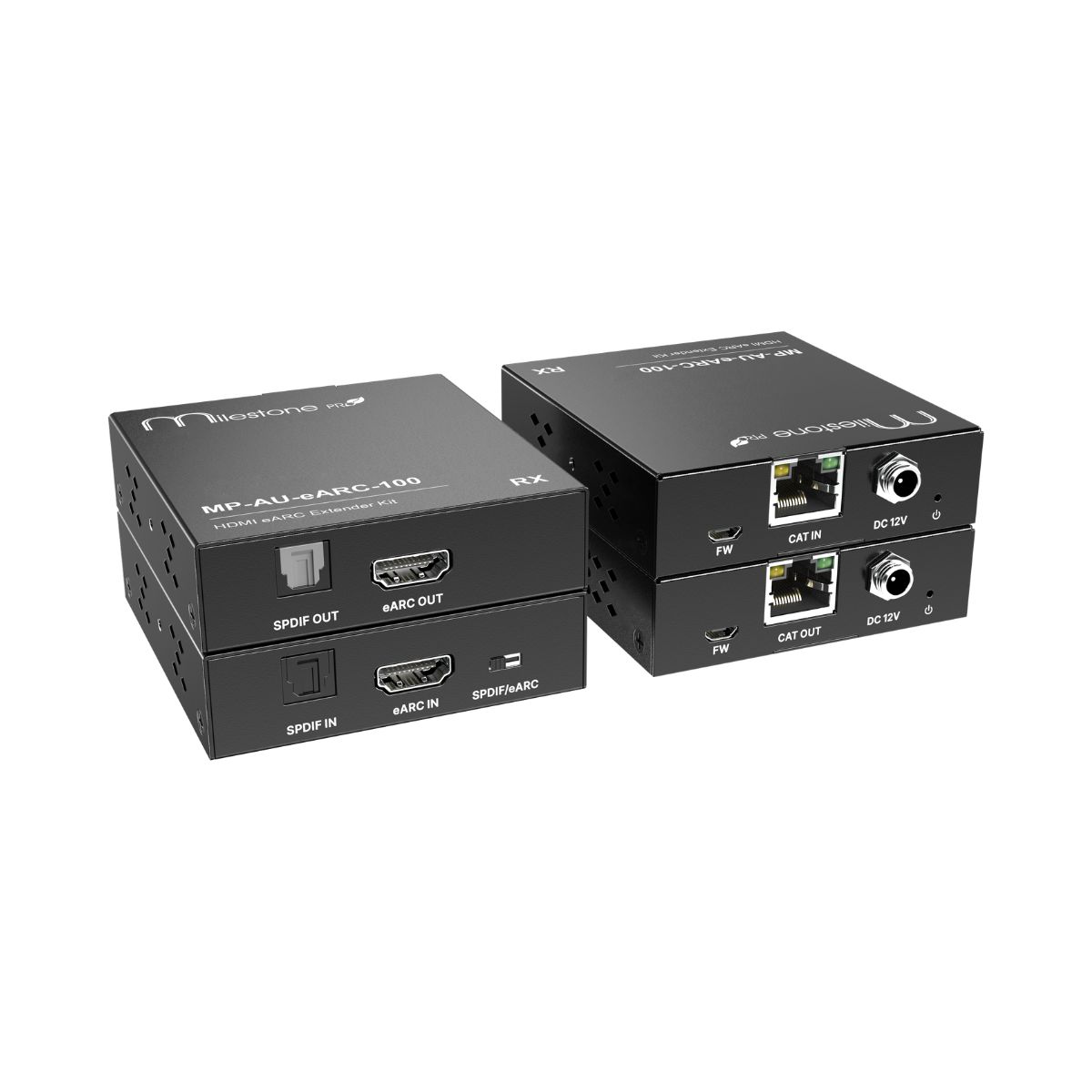

MP-AU-eARC-100

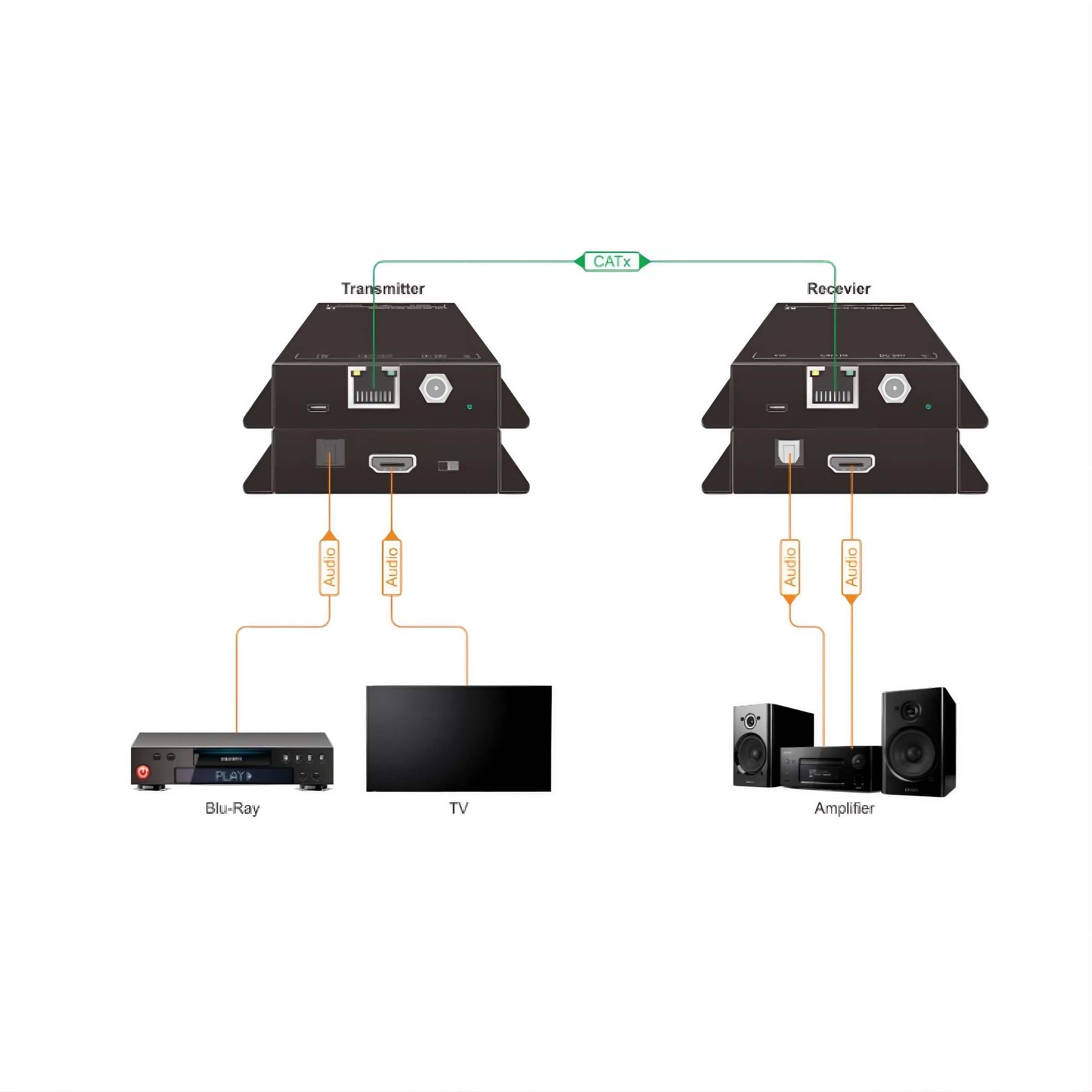

The HDMI audio extender set that includes a Transmitter and a Receiver, to transmit HDMI eARC / ARC and optical digital audio signals up to a distance of 200m (eARC/ARC signals up to 100m) via CATx cable. It also supports CEC pass-through when selecting HDMI eARC/ARC audio.

Contact to Seller
  • Extend either eARC/ARC or optical digital audio signals over a CAT cable.
  • Supports eARC/ARC distribution distances up to 100m.
  • Supports optical audio distribution distances up to 200m.
  • Supports CEC pass-through when HDMI eARC/ARC mode is selected.
  • Bi-directional PoC (Power over Cable)
  • Selection between HDMI eARC/ARC or Optical digital audio via dipswitch on the TX

Transmitter

Input (1) SPDIF, (1) eARC IN
Input Connector (1) Toslink, (1) HDMI
Output (1) CATx OUT
Output Connector (1) RJ45
Control (1) FIRMWARE
Control Connector (1) Micro USB

Receiver

Input (1) CATx IN
Input Connector (1) RJ45
Output (1) SPDIF, (1) eARC OUT
Output Connector (1) Toslink, (1) HDMI
Contro (1) FIRMWARE
Control Connector (1) Micro USB
