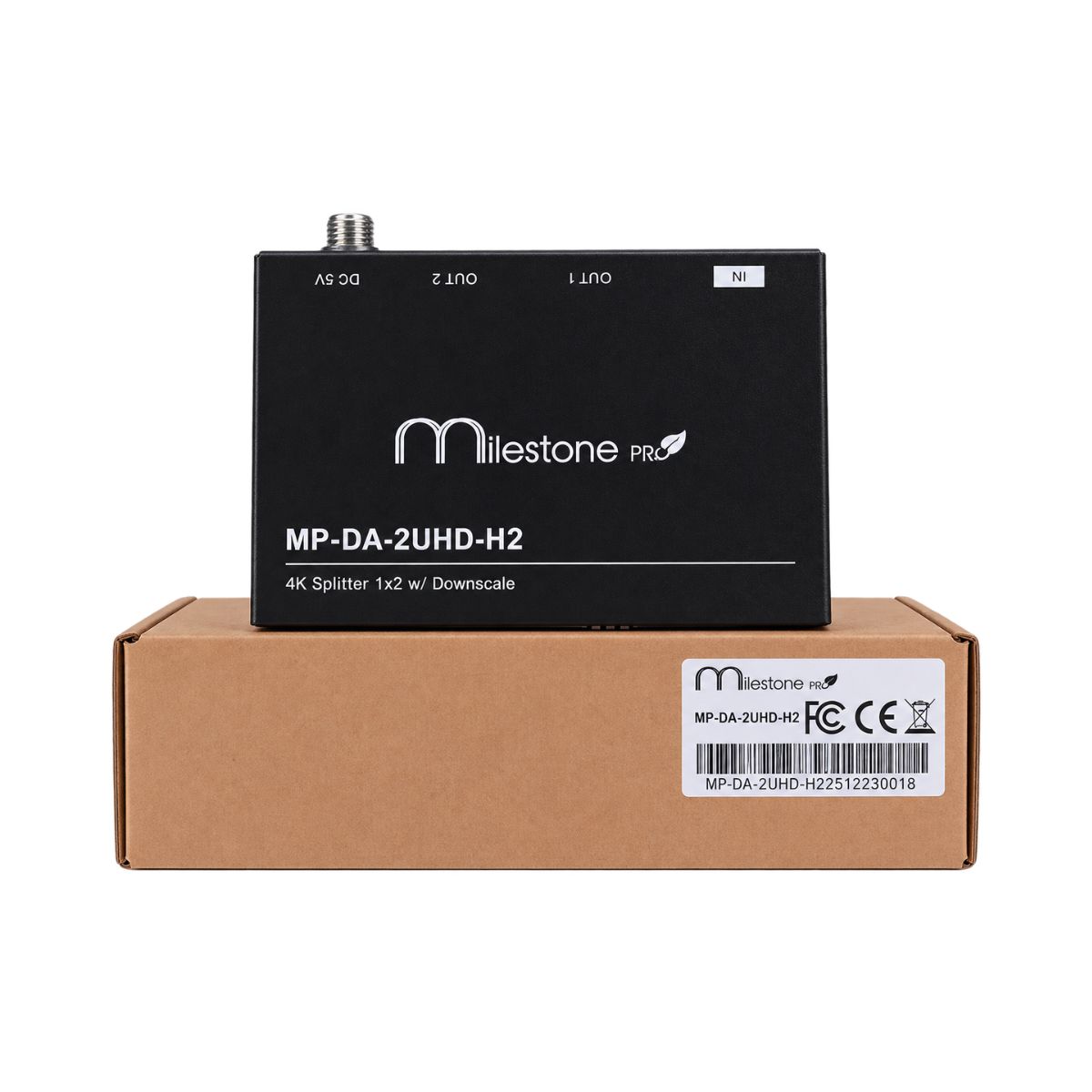

MP-DA-2UHD-H2
The HDMI 2.0 1x2 Splitter distributes a single HDMI input signal to two simultaneous HDMI outputs. It supports video resolutions up to 4K@60Hz 4:4:4, 1080P 3D, and multiple multichannel audio formats. The splitter features EDID management, including display EDID pass-through and multiple built-in EDID settings selectable via a 4-pin DIP switch on the front panel. It also supports convenient firmware upgrades through the Micro-USB port.
- Supports HDMI 2.0 and video resolution up to 4K@60Hz 4:4:4.
- HDMI input supports HDCP 2.2, and the outputs support HDCP Active or HDCP Passive mode

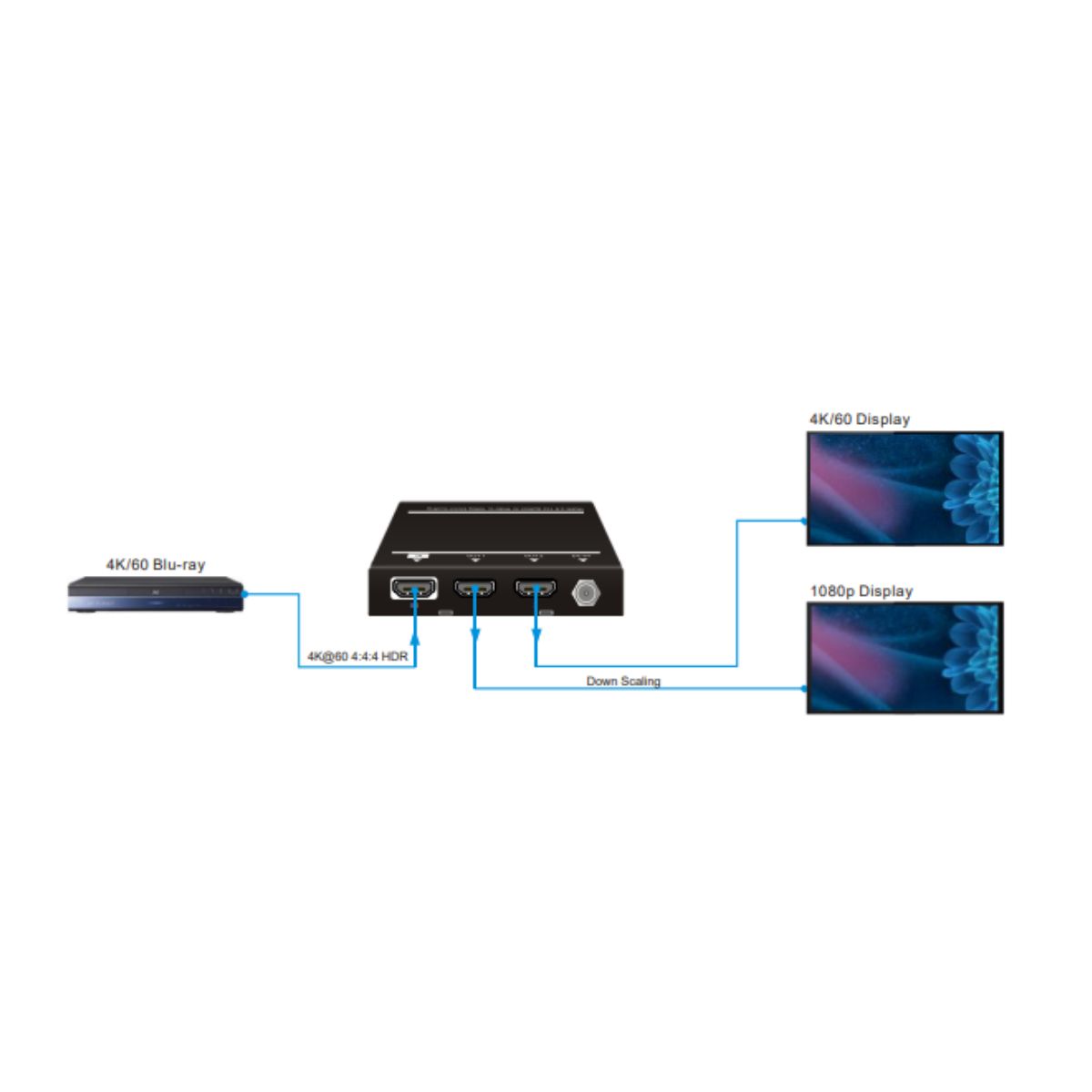

- Supports video resolution down-scaling; the 4K input can be automatically degraded to 1080P output for compatibility with a 1080p display.
- 18Gbps high bandwidth
- Advanced EDID management: multiple built-in EDID settings can be selected.
- Built-in equalizer for signal enhancement to avoid signal attenuation in transmission
- Supports CEC pass-through.
- Provides LEDs to indicate the current operating status.
| Video Input | |
| Input | (1) HDMI |
| Input Connector | (1) Type-A female HDMI |
| HDMI Input Resolution | Up to 4Kx2K@60Hz 4:4:4 8bit |
| HDMI Standard | 2.0 |
| HDCP Version | 2.2, 1.4 compliant |
| CEC | Supported |
| Video Output | |
| Output | (2) HDMI |
| Output Connector | (2) Type-A female HDMI |
| HDMI Output Resolution | Up to 4Kx2K@60Hz 4:4:4 8bit |
| HDMI Standard | 2.0 |
| HDCP Version | 2.2, 1.4 compliant |
| CEC | Supported |
| Control | |
| Control Part | (1) EDID 4-pin DIP switch, (1) Micro-USB port |
| General | |
| Bandwidth | 18Gbps |
| HDMI 2.0 Cable Length | 4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 15m, 1080P ≤ 20m |
| Operation Temperature | -10℃ ~ +55℃ |
| Storage Temperature | -25℃ ~ +70℃ |
| Relative Humility | 10%-90% |
| Power Supply | Input:100V~240V AC; Output: 5V DC 1A |
| Power Consumption | 1.5W (Max) |
| Dimension (W*H*D) | 96.0mm x 17.6mm x 70.4mm |
