MP-DA16UHD-4K

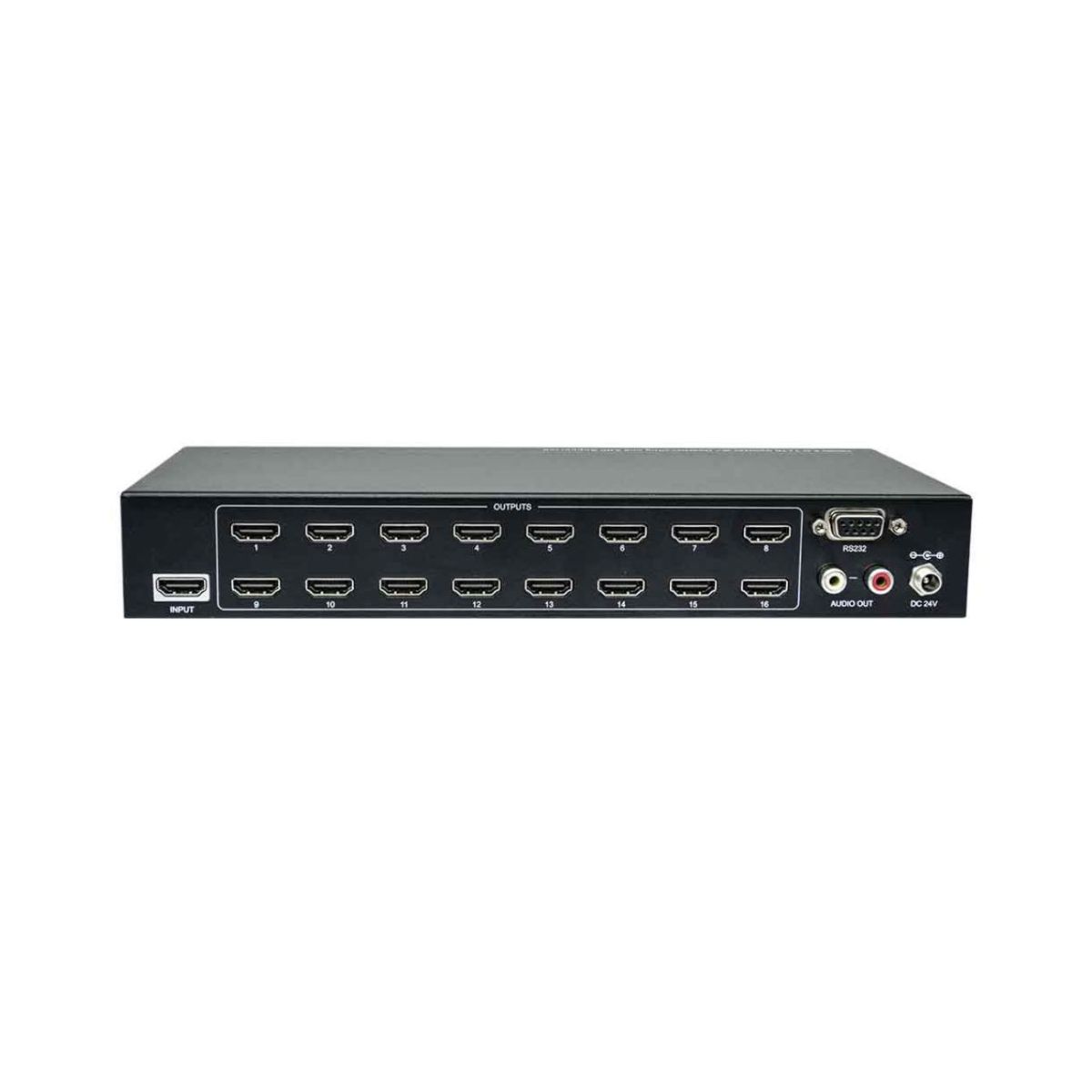

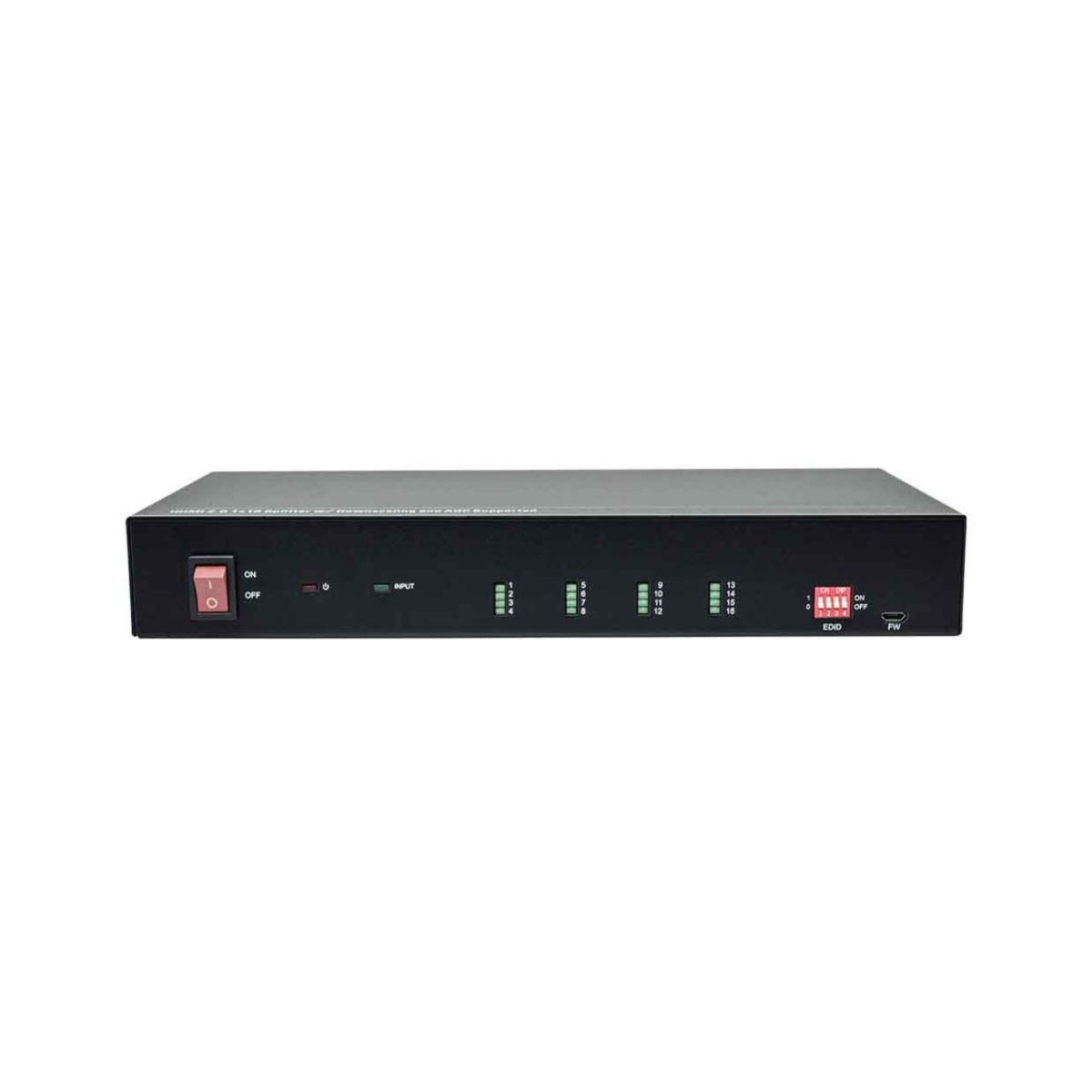

The MP-DA16UHD-4K HDMI 2.0 1x16 Splitter distributes a single HDMI input signal to sixteen HDMI outputs simultaneously. It supports video resolutions up to 4K@60Hz 4:4:4, HDR10, and Dolby Vision. The splitter features advanced EDID management through a 4-pin DIP switch on the front panel and supports automatic downscaling, allowing a 4K input signal to be converted to 1080p for displays with lower resolution support. A stereo analog L/R audio output is provided for audio de-embedding from the HDMI input. Additional features include CEC and RS-232 control.
- HDMI V2.0, 4K@60Hz 4:4:4 8bit, HDR10, Dolby Vision.
- HDCP 2.2 compliant.
- Compatible with HDMI AOC cable; provides up to 5V100mA power on each output.
- Auto 4K to 1080p downscaling.
- Stereo analog L/R audio output for audio de-embedding from HDMI input.
- Smart EDID management and HDCP management.
- CEC and RS232 control.
| Video | |
| Input | (1) HDMI |
| Input Connector | (1) Type-A female HDMI |
| Input Video Resolution | Up to 4K@60Hz 4:4:4 8bit, HDR10, Dolby Vision |
| Output | (16) HDMI |
| Output Connector | (16) Type-A female HDMI |
| Output Video Resolution | Up to 4K@60Hz 4:4:4 8bit, HDR10, Dolby Vision, supports 4K to 1080p down-scaling. |
| HDMI Output | Supports up to 5V 100mA power for AOC cable. |
| HDMI Standard | V2.0 |
| HDCP Version | 2.2 |
| HDMI Audio Signal | LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through. |
| Analog Audio Output | |
| Output | (1) AUDIO |
| Output Connector | (1) RCA (L+R) |
| Frequency Response | 20Hz~20kHz, ±1dB |
| Max output level | 2.0Vrms ± 0.5dB. 2 V = 16 dB headroom above-10dBV (316mV) nominal consumer line level signal |
| THD+N | < 0.05%, 20Hz~20kHz bandwidth, 1kHz sine at 0dBFS level (or max level) |
| SNR | > 80dB, 20 Hz- 20 kHz bandwidth |
| Crosstalk isolation | < -80dB, 10kHz sine at 0dBFS level (or max level before clipping) |
| L-R level deviation | < 0.05dB, 1kHz sine at 0dBFS level (or max level before clipping) |
| Output load capability | 1Kohm and higher (supports 10x paralleled 10Kohm loads) |
| Noise Level | - 80dB |
