MP-DA24-KIT
The 2x4 HDMI Splitter Kit over CATx cable distributes two HDMI input sources to one HDMI output and four CATx outputs. It supports video resolutions up to 4K@60Hz 4:4:4, 8-bit, along with all HDMI audio formats.
- Supports HDMI V2.0, video resolutions up to 4K@60Hz 4:4:4
- Distributes one of two UHD/4K HDMI inputs to four CATx outputs and one HDMI loop output.

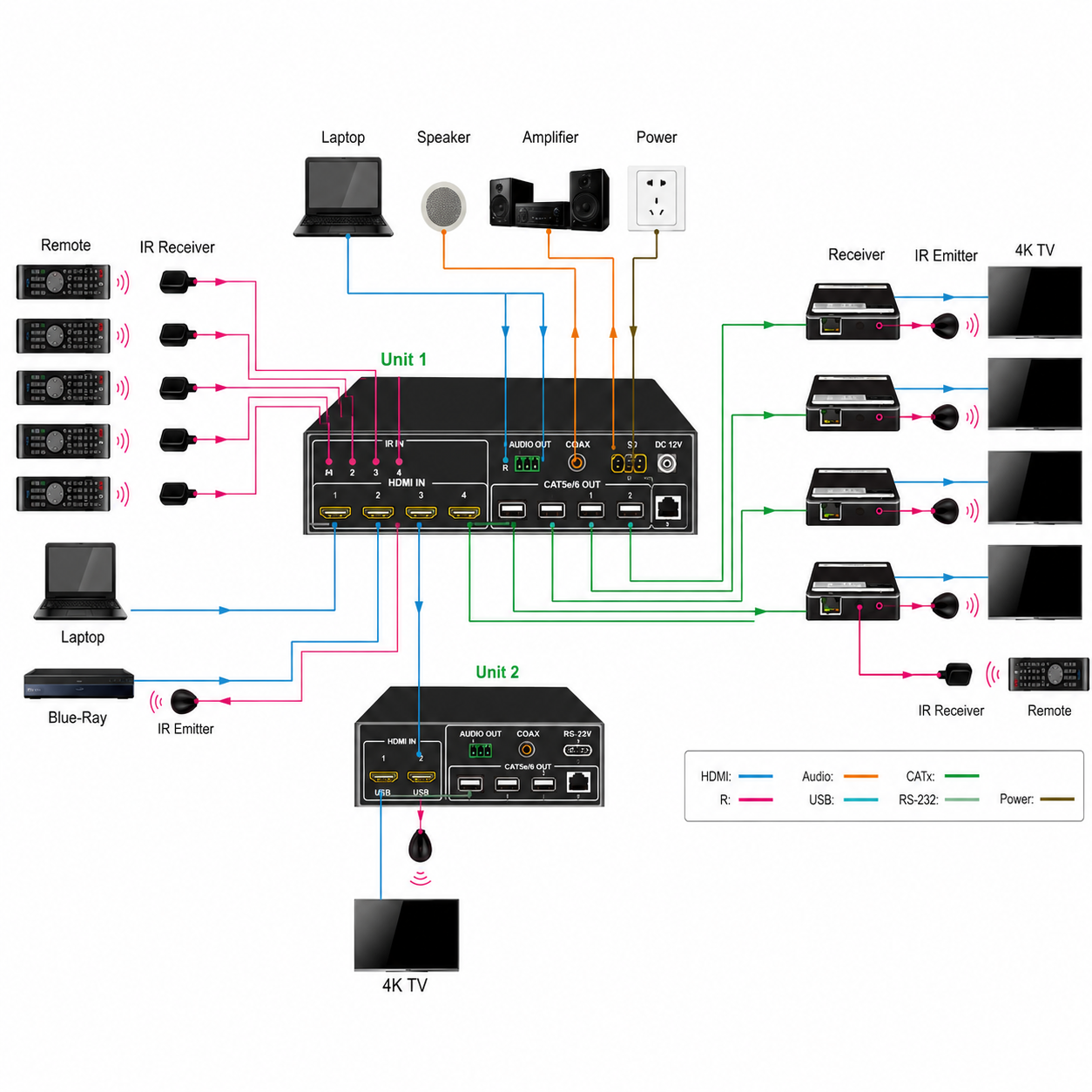

- Supports cascade connection; distributes video signal to multiple video displays
- Maximum transmission distance is up to 70m for 4K and 80mfor 1080p
- Comprehensive EDID management; lowest/highest/default resolution can be chosen on the front panel for various applications.
- Supports video resolution down-scaling; the 4K input can be automatically degraded to 1080p output on the receiver for compatibility with legacy 1080p display devices
- Video auto-switching based on 5V or TMDS detection.
- SPDIF and L/R audio outputs for audio de-embedding.
| Video Input | |
| Input | (1) HDMI |
| Input Connector | (1) Female Type-A HDMI |
| HDMI Input Resolution | Up to 4K@60Hz 4:4:4 8bit |
| Video Output | |
| Output | (1) HDMI, (4) CAT |
| Output Connector | (1) Female Type-A HDMI; (4) RJ45 |
| HDMI Output Resolution | Up to 4K@60Hz 4:4:4 |
| CAT Output Resolution | Up to 4K@60Hz 4:4:4 (Signal has been compressed.) |
| SPDIF Audio Output | |
| Audio Output | (1) SPDIF |
| Audio Output Connector | (1) Toslink |
| Audio Format | Audio Format |
| Output Level | ±0.05dBFS |
| Frequency Response | 20Hz ~20kHz, ±1dB |
| THD+N | < 0.05%, 20Hz ~20kHz bandwidth, 1kHz sine at 0dBFSlevel (or maxlevel) |
| SNR | > 90dB, 20Hz ~20kHz bandwidth |
