MP-DA28UHD

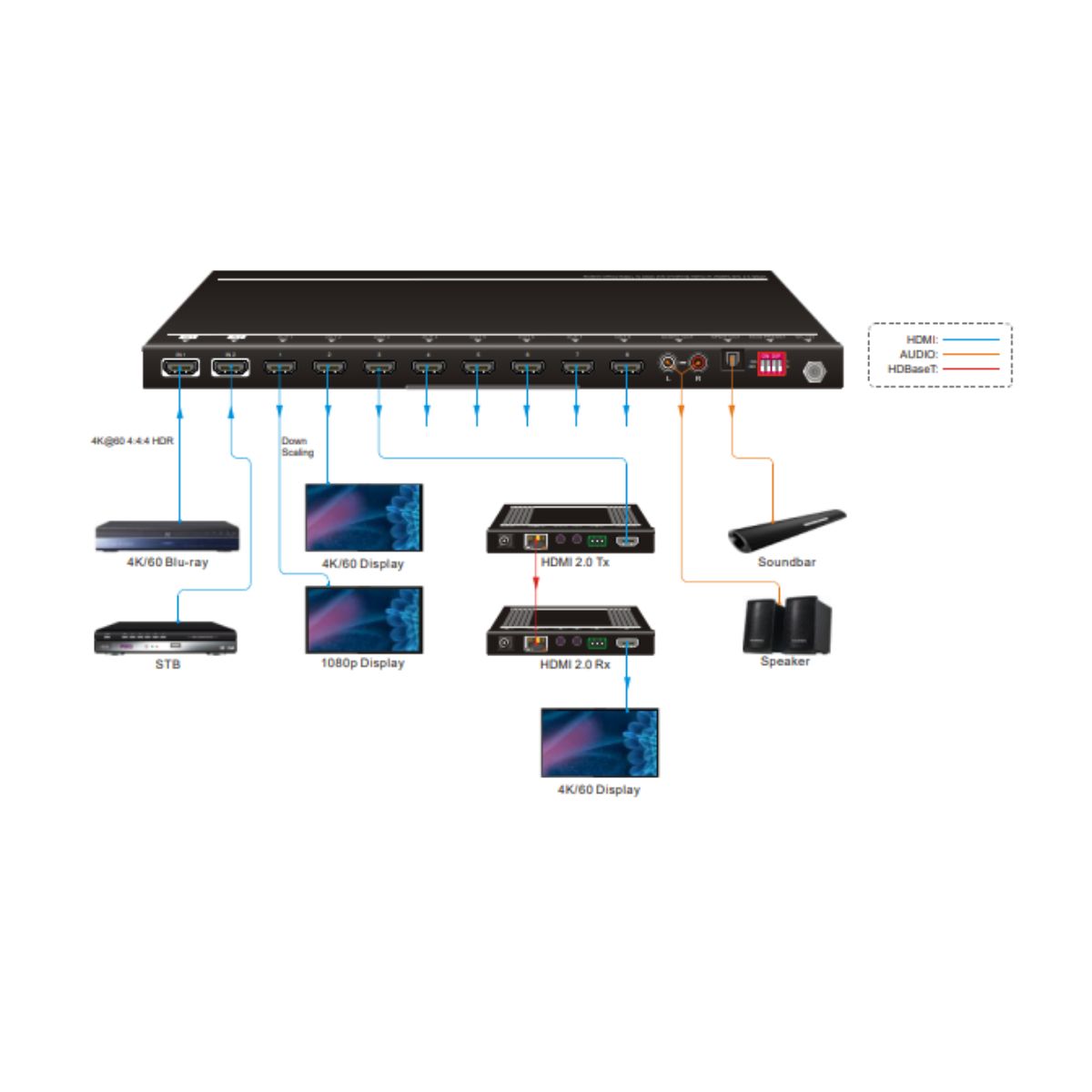

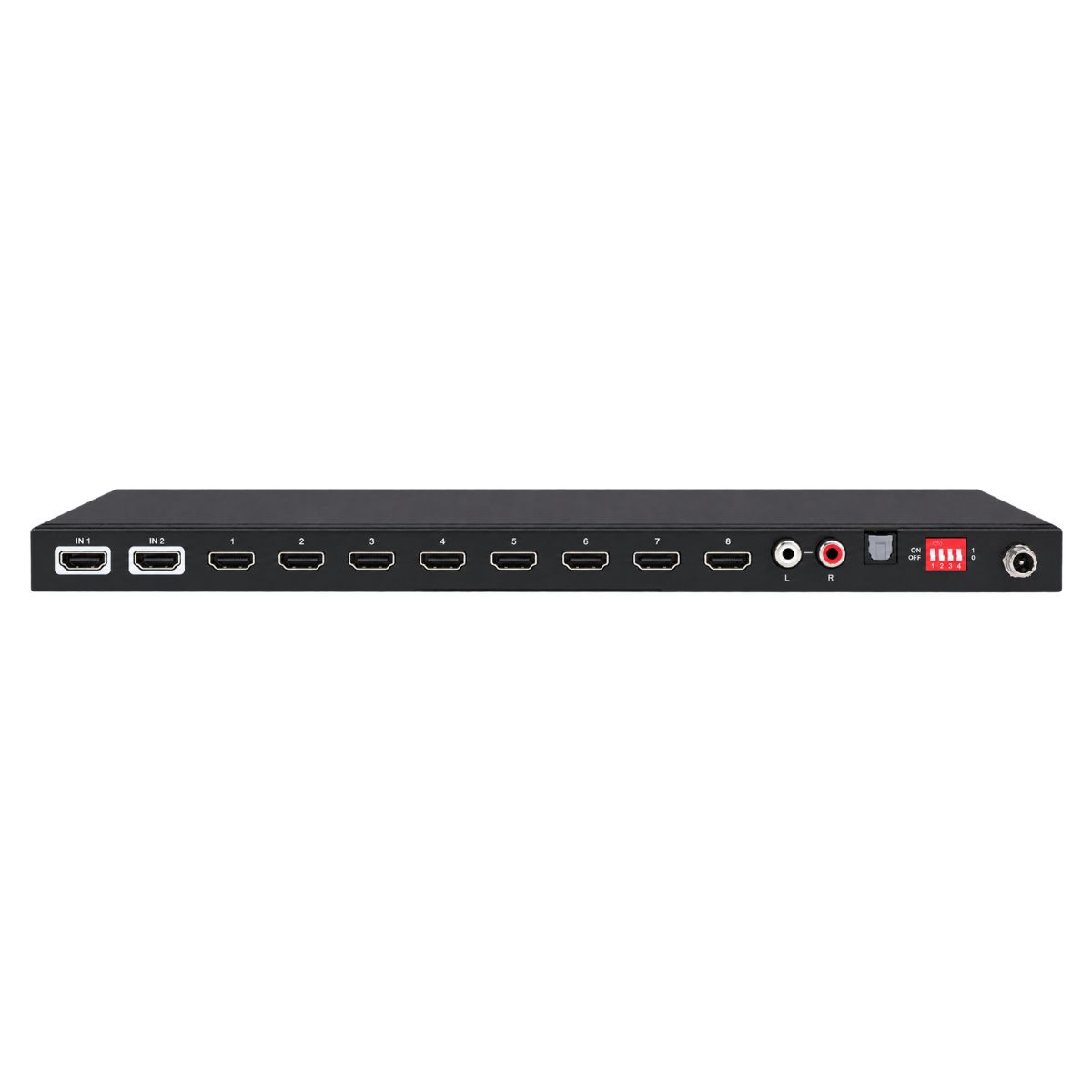

The HDMI 2.0 2x8 Splitter distributes either of two HDMI input sources to up to eight HDMI displays. It supports video resolutions up to 4K@60Hz 4:4:4, 1080p 3D, and a wide range of multichannel audio formats. In addition to passing EDID information from connected displays, the splitter features multiple built-in EDID settings selectable via a 4-pin DIP switch on the rear panel. It also supports HDMI audio de-embedding, extracting digital audio to stereo analog L/R and Toslink SPDIF outputs, making it easy to integrate with existing audio systems.
- Supports HDMI 2.0 and video resolution up to 4K@60Hz 4:4:4.
- HDMI inputs support HDCP 2.2, and the outputs support HDCP1.4.
- Supports video resolution down-scaling; the 4K input can be automatically degraded to 1080P output for compatibility with a 1080p display
- 18Gbps high bandwidth
- Features RCA (L/R) jack and Toslink connector for audio de-embedding.
- Advanced EDID management: multiple presets and user-defined allowed.
- Built-in equalizer for signal enhancement to avoid signal attenuation in transmission
- Supports CEC control to turn on/off displays and adjust their volume.
- Provides LEDs to indicate the current operating status and to assist with troubleshooting and installation
- Firmware upgrade via the Micro-USB port.
| Video Input | |
| Video Input | (2) HDMI |
| Input Connector | (2) Female Type-A HDMI |
| HDMI Input Resolution | Up to 4Kx2K@60Hz 4:4:4 8bit |
| HDMI Standard | 2.0 |
| HDCP Version | 2.2 |
| CEC | Supported |
| Video Output | |
| Output | (8) HDMI |
| Output Connector | (8) Female Type-A HDMI |
| HDMI Output Resolution | Up to 4Kx2K@60Hz 4:4:4 8bit |
| HDMI Standard | 2.0 |
| CEC | Supported |
