MP-DA8UHD-4K

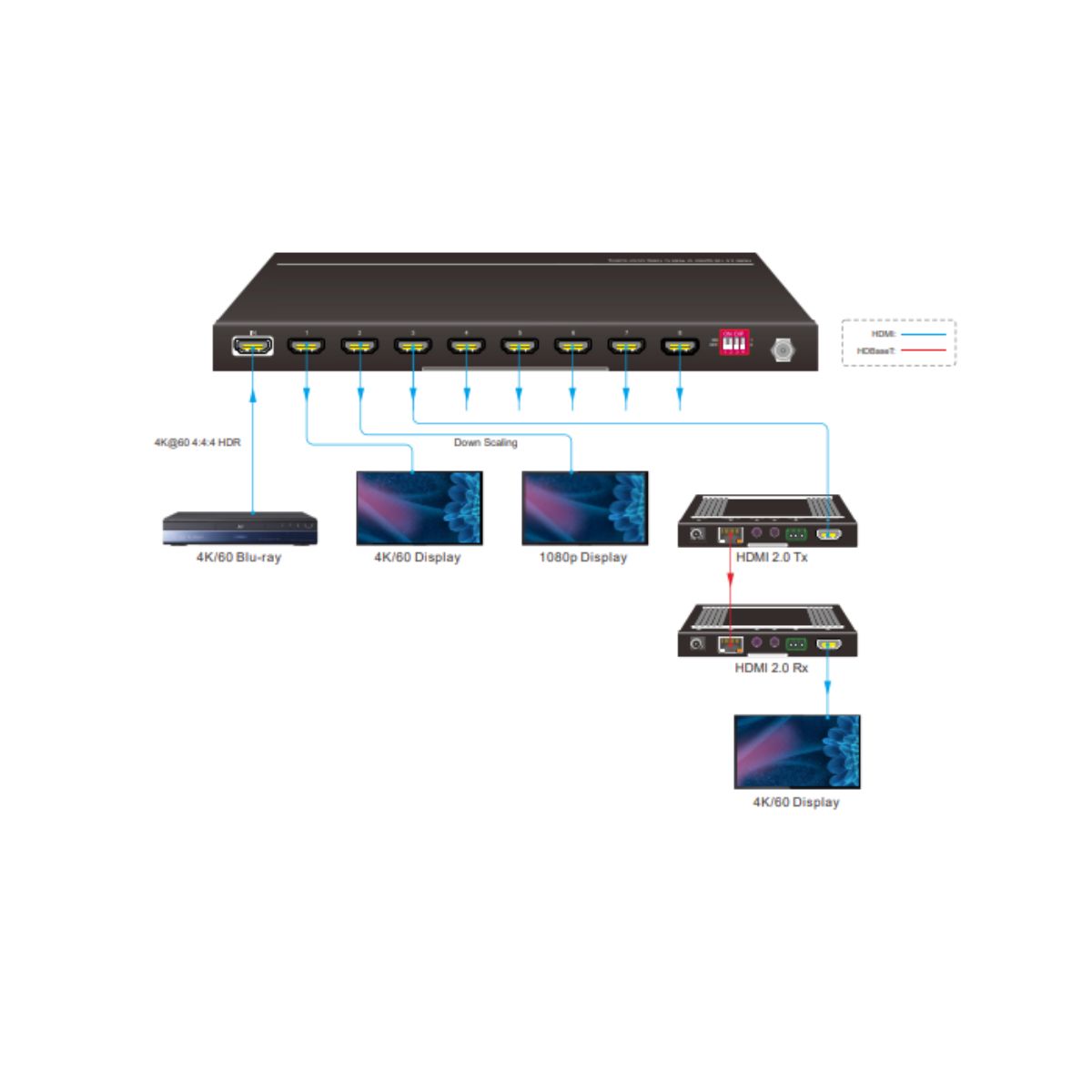

The HDMI 2.0 1x8 Splitter distributes a single HDMI input signal to eight HDMI outputs simultaneously. It supports video resolutions up to 4K@60Hz 4:4:4, 1080p 3D, and multiple multichannel audio formats. In addition to passing EDID information from the connected display, the splitter offers multiple built-in EDID settings, selectable through a 4-pin DIP switch on the rear panel.

Contact to Seller
  • Supports HDMI V2.0 and video resolution up to 4K@60Hz 4:4:4.
  • HDMI input supports HDCP 2.2 and the outputs support HDCP1.4.
  • Compatible with HDMI AOC cable; provides up to 5V 200mA power on each output.
  • Supports video resolution down-scaling; the 4K input can be automatically degraded to 1080p output for compatibility with a 1080p display
  • 18Gbps high bandwidth
  • Advanced EDID management: multiple presets and user-defined allowed
  • Built-in equalizer for signal enhancement to avoid signal attenuation in transmission.
  • Supports CEC control to turn on/off displays and adjust their volume.

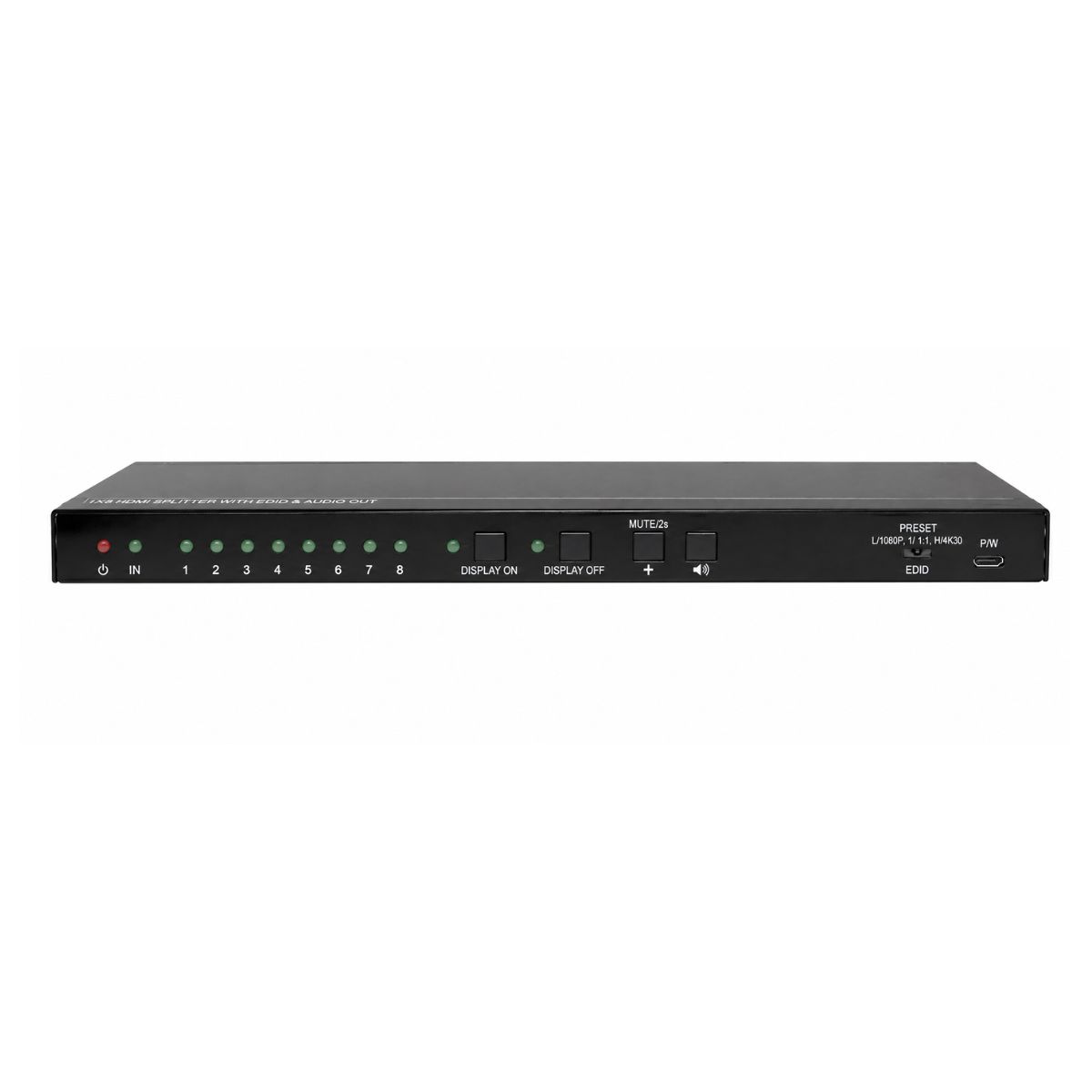

  • Provides LEDs to indicate the current operating status and to assist troubleshooting and installation.
  • Firmware upgrade via the Micro-USB port.
Download Product catalog
Video Input
Input (1) HDMI
Input Connector (1) Female Type-A HDMI
HDMI Input Resolution Up to 4K@60Hz 4:4:4 8bit
HDMI Output Supports up to 5V 200mA power for AOCcable.
HDMI Standard 2.0
HDCP Version 2.2
CEC Supported
Video Output
Output (8) HDMI
Output Connector (8) Female Type-A HDMI
HDMI Output Resolution Up to 4K@60Hz 4:4:4 8bit
HDMI Standard 2.0
CEC Supported
Control
Control Part

(4) Control buttons; (1) EDID 3-pin DIP switch;

(1) EDID 4-pin DIP switch; (1) Micro-USBport
General
Bandwidth 18Gbps
Operation Temperature -5 to +55℃ (+23° to +131°F)
Storage Temperature -25 to +70℃ (-13° to +158°F)
Relative Humidity 10% to 90%, Non-condensing
Power Supply Input:100V~240V AC; Output: 12V DC1A
Power Consumption 7W(Max)
Dimension (W*H*D) 260mm x 20mm x 70mm
