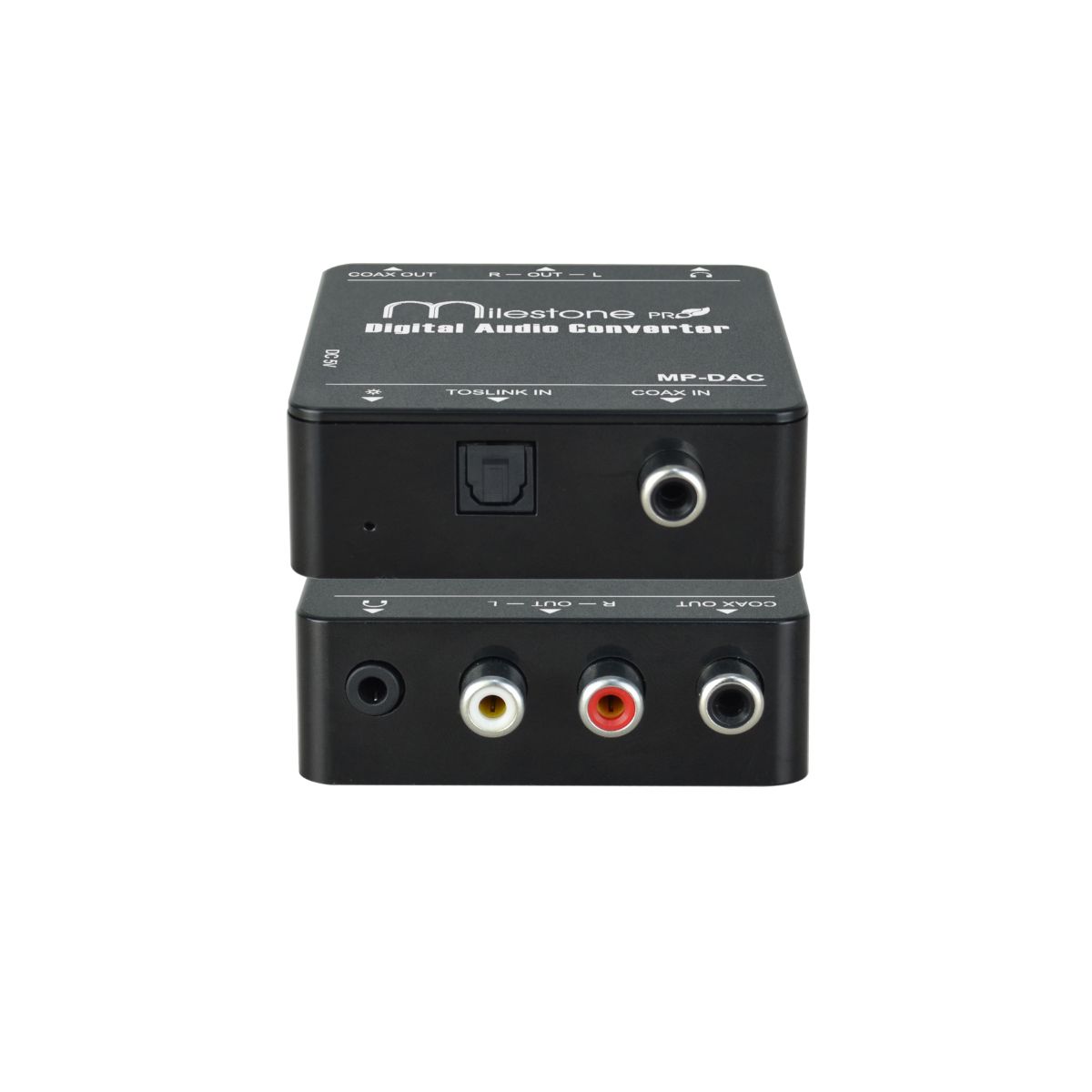

MP-DAC
The MP-DAC Digital Audio Converter is designed to convert coaxial or Toslink digital audio input into analog L/R and 3.5mm audio outputs. Simultaneously, it provides a COAX SPDIF output for convenient digital audio extension.
- Supports audio distribution, splitting one audio source into three audio outputs.
- Converts coaxial or Toslink digital audio input toanalogL/Rand 3.5mm audio output.
- COAX SPDIF output for digital audio extension.
- Supports up to 24-bit/192 kHz input (PCM, DolbyDigital orDTS formats for digital audio extension only)
- Provides a Micro-USB port for power cable connection.
- Easy to install and simple to operate.

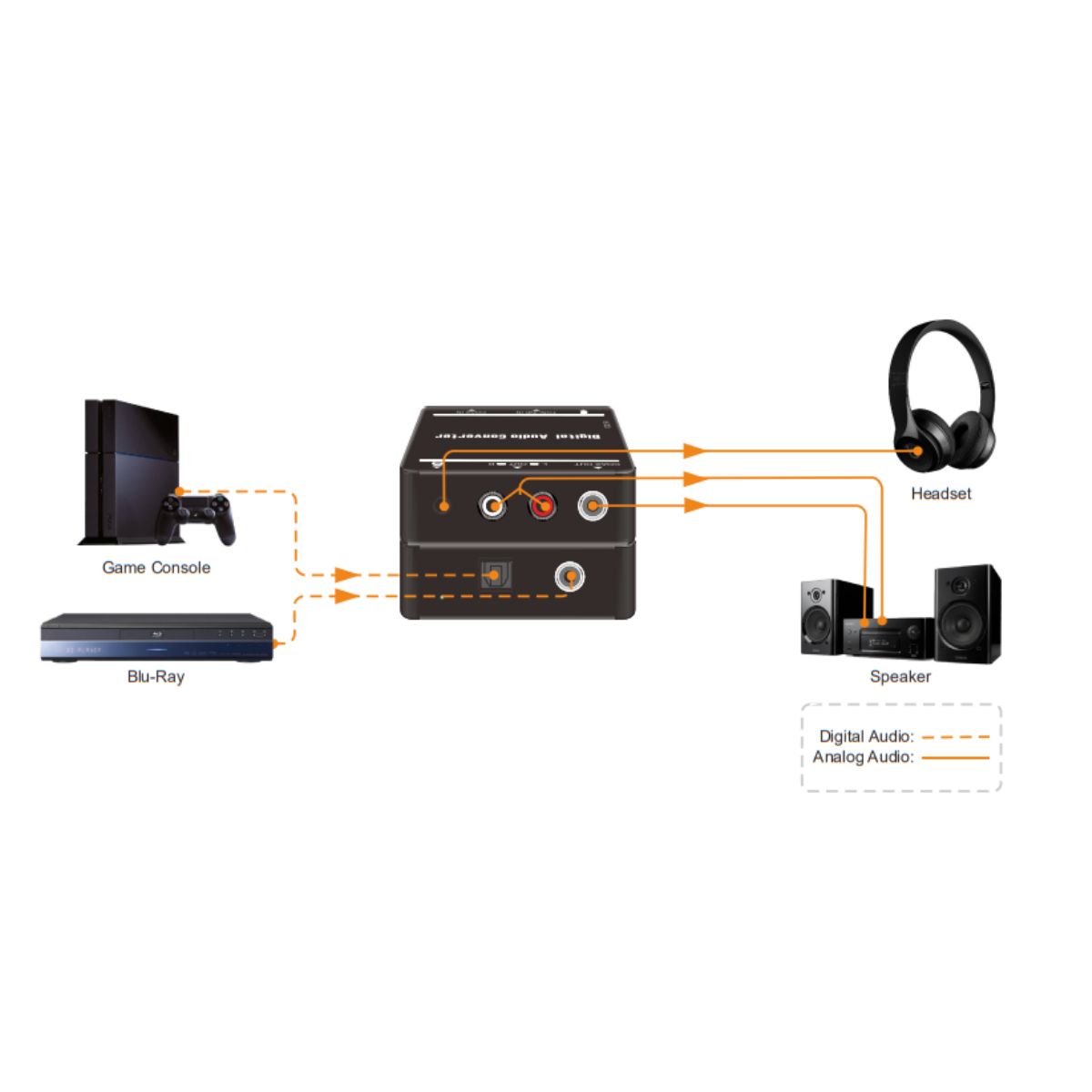

- Compatible with coaxial or Toslink interface digital audio devices: CD/DVD, PS3, Xbox 360, Blu-ray player, Computer, A/V receiver, etc.
- Ideal for interfacing between modern digital audio/videodevices with analog amplifiers or self-poweredspeakers.
| Audio Input | |

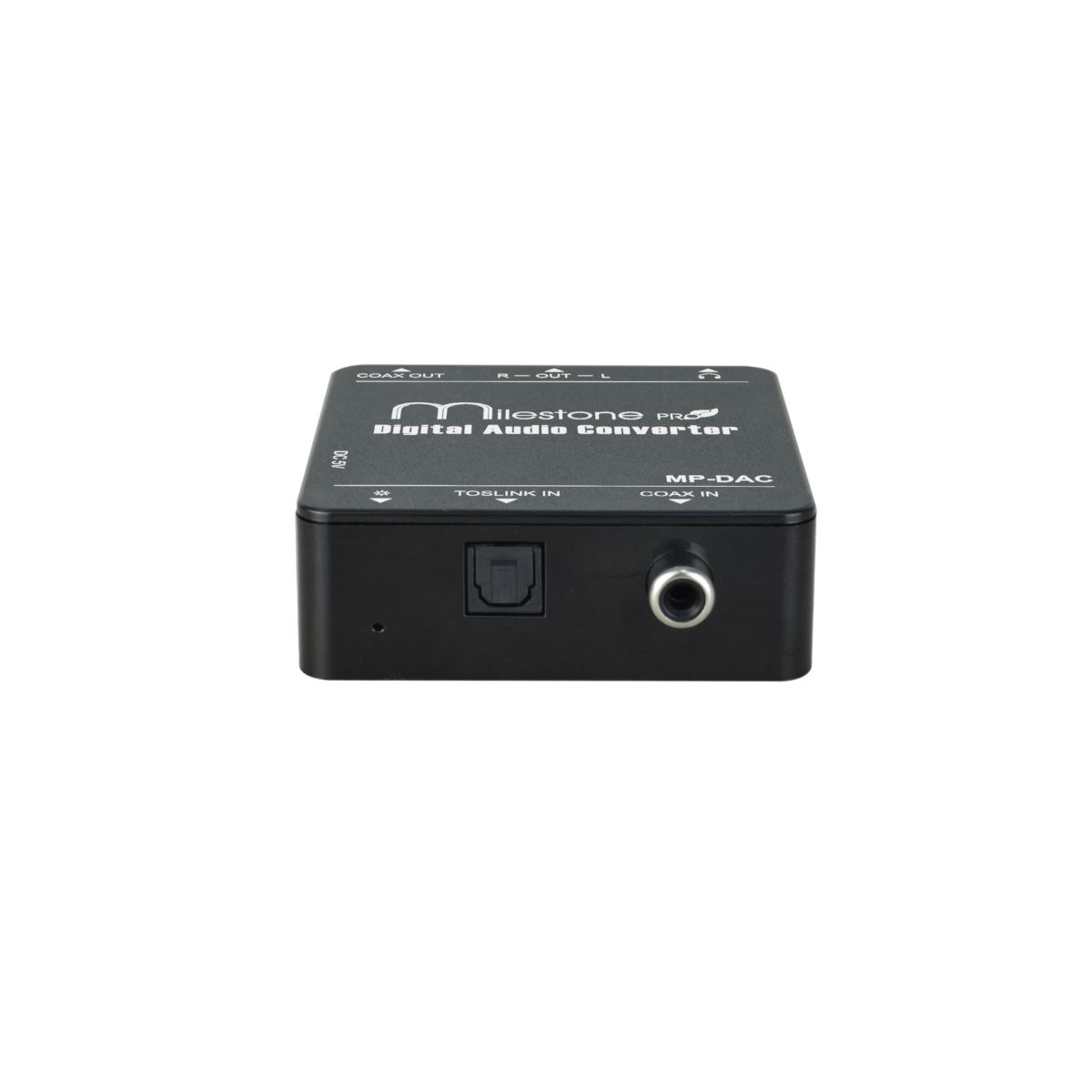

| Audio Input | (1) TOSLINK IN, (1) COAXIAL |
| Audio Format | LPCM 2CH, Dolby Digital 2/5.1CH, DTS2/5.1CH (Only PCMsupports format conversion) |
| Sample Rate | 32, 44.1, 48, 96, 192KHz, upto24bit |
| Analog Audio Output | |

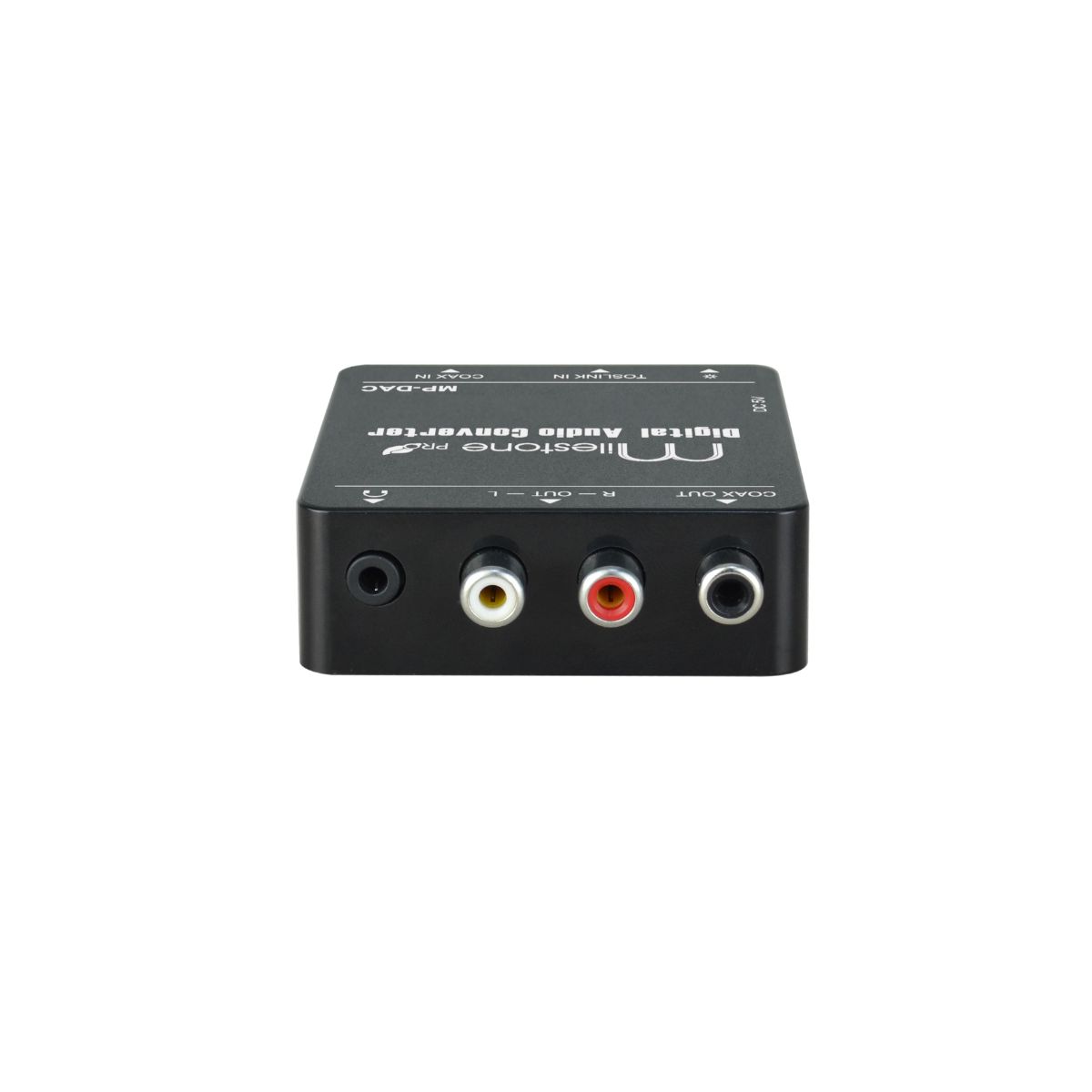

| Audio Output | (1) 3.5mm stereo audio, (1) L-OUT-R(RCA) |
| Audio Format | PCM |
| Frequency Response | 20Hz – 20KHz, ±3dB |
| Max Output Level | 2.0Vrms ± 0.5dB. 2V = 16dBheadroomabove -10dBV (316mV) nominal consumerline level signal |
| THD+N | < 0.05% (-80dB), 20Hz – 20KHzbandwidth |
| SNR | > 80dB, 20Hz-20 kHz bandwidth |
| Crosstalk Isolation | < -80dB, 10KHz sine at 0dBFSlevel (ormaxlevel before clipping) |
| L-R Level Deviation | < 0.3dB, 1KHz sine at 0dBFSlevel (ormaxlevel before clipping) |
| Noise Level | < -90dB |
| General | |
| Operation Temperature | -5~ +55℃ |
| Storage Temperature | -25 ~ +70℃ |
| Relative Humidity | 10%-90% |
| Power Supply | Input:100V~240V AC; Output: 5VDC1A |
