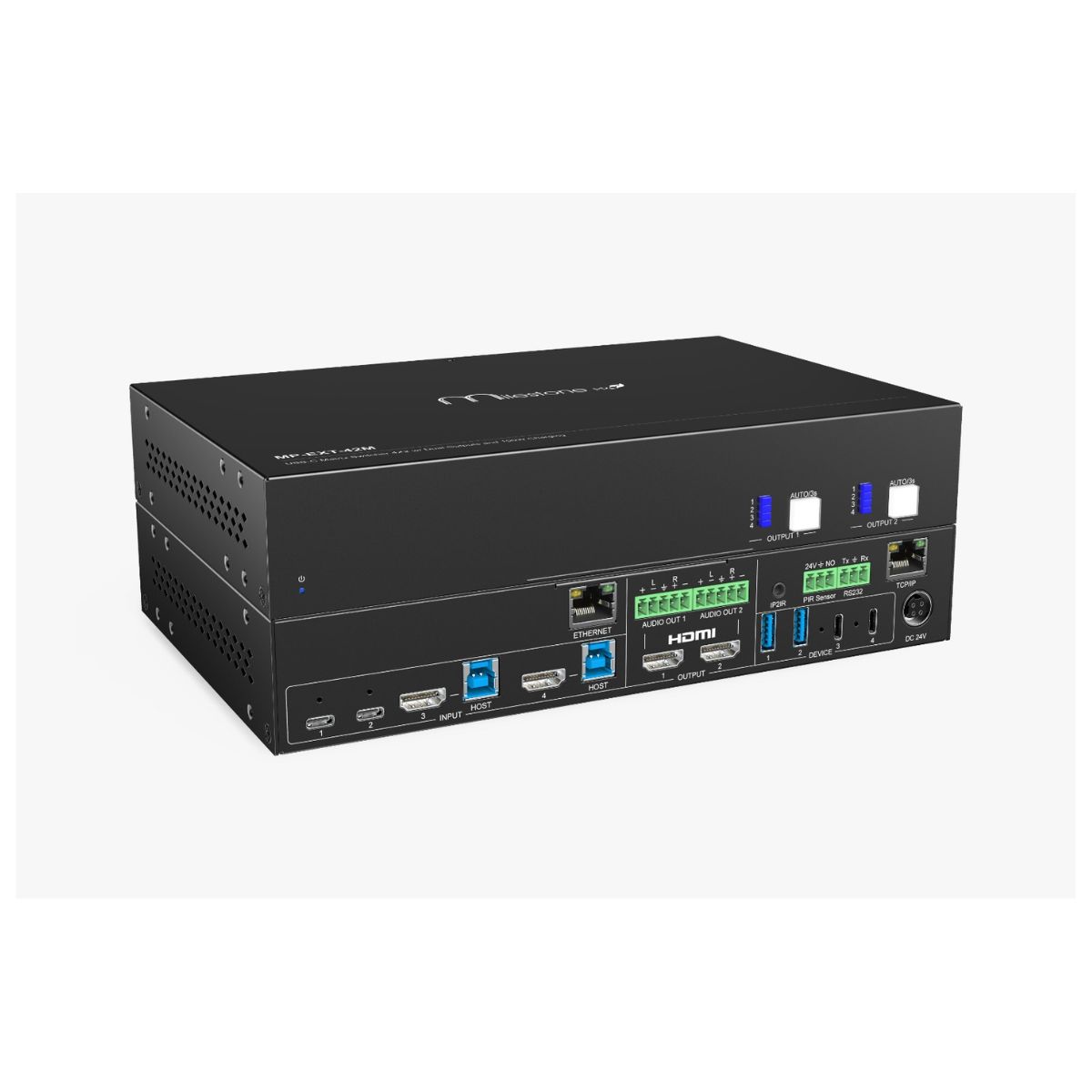

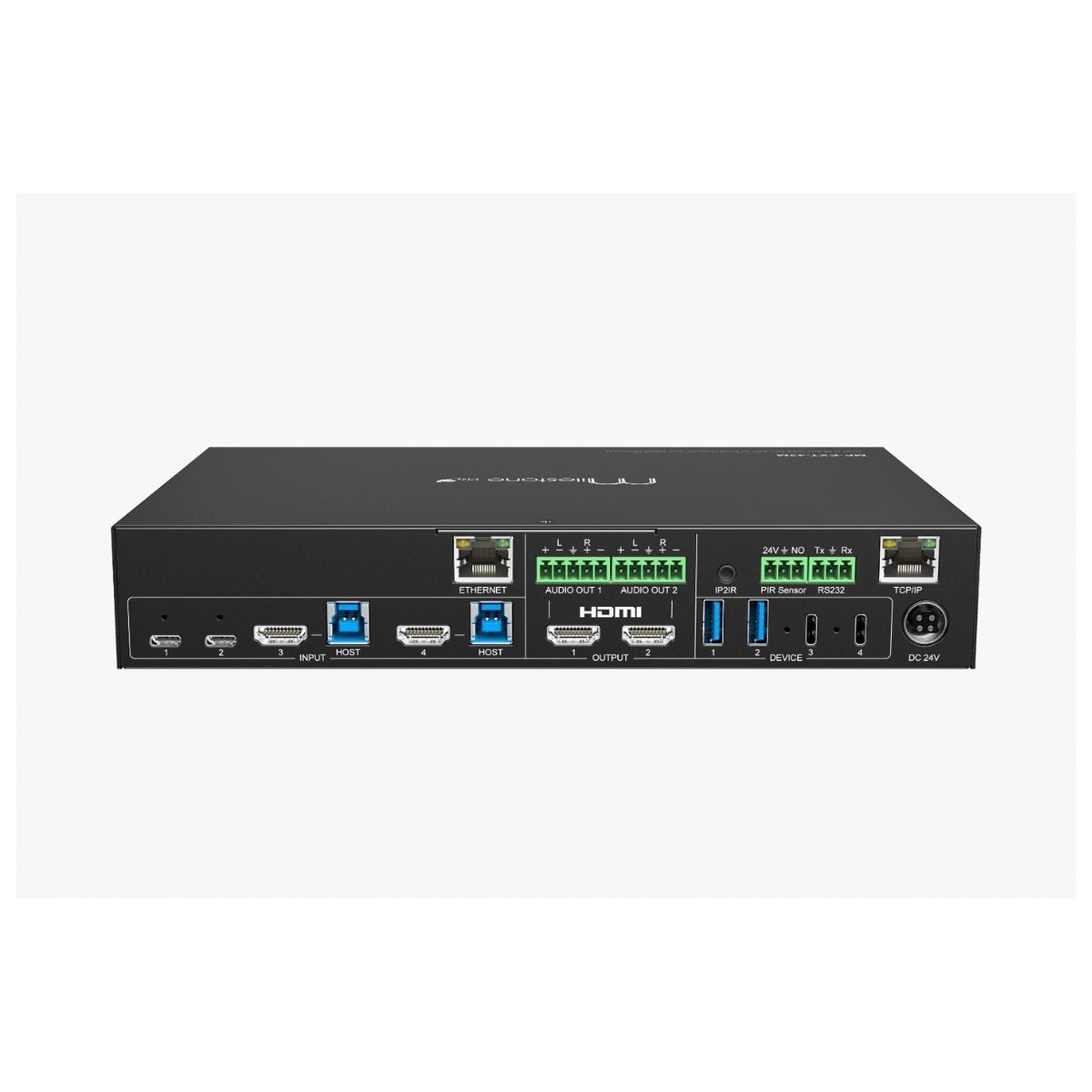

MP-EXT-42M

MP-EXT-42M is a 4×2 USB-C Matrix Switcher supporting up to 4K60Hz 4:4:4. It features dual HDMI outputs, USB-A/USB-C connectivity, analog audio de-embedding, USB-C charging, PIR sensor support, and serial control—ideal for flexible AV and KVM applications.

Contact to Seller
  • 4x2USB-Cmatrix switcher, supports max 4K60Hz 4:4:4.
  • Supports max 100W charging for USB-C input.
  • Ethernet available for USB-C inputs.
  • 4USB3.2Gen1(5Gbps) device ports sharing 3Acurrent and power management.
  • RS232Control, WEB Control available, 5V IR control Display.
  • Supports auto-switching and audio de-embedding.
  • PIR sensor for system control.
Download Product catalog
InputConnector (2)USB-C;(2)HDMI2.0;
InputResolution Upto4K60Hz4:4:4
USBHOST (2)USB-Cand(2)USB-TypeBforHDMI Inputcontroland Devicesswitching
HostBandwidth 5Gbps
Output (2)HDMI2.0
OutputConnector (1) Female Type-A HDMI
HDMIOutputResolution Upto4K60Hz4:4:4(18Gbps)
HDMIStandard 2.0b
HDCPVersion 2.2/1.4compliant
Connector (2)USB-A,(2)USB-C
USBStandard Sharing3Apower
USBbandwidth 5Gbps
