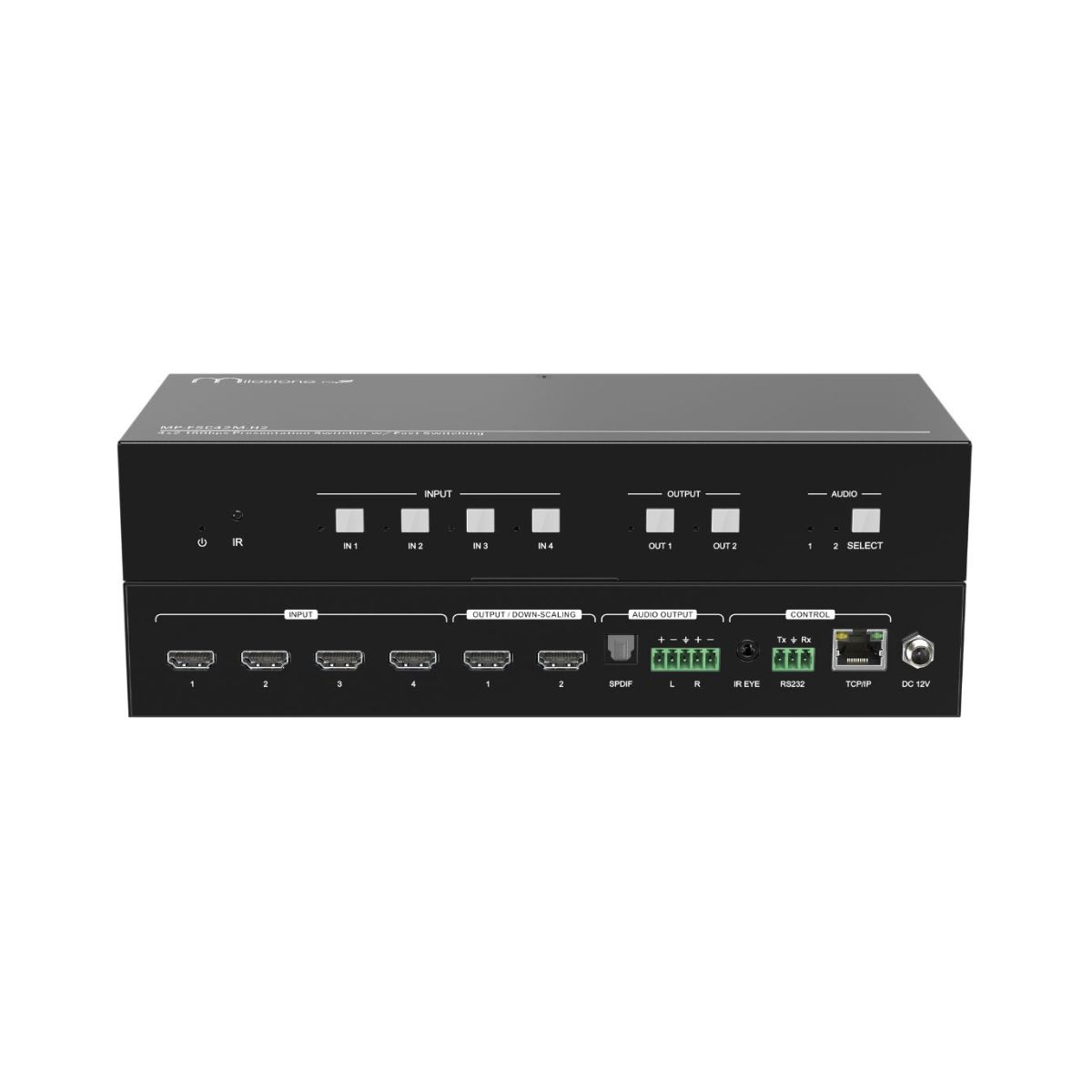

MP-FSC42M-H2
The MP-FSC42M-H2 is a high-performance 4x2 HDMI 2.0 Fast SwitchingMatrixSwitcher, featuring 4 HDMI inputs and 2 HDMI outputs, supporting up to18Gbps4K@60Hz 4:4:4 with HDR, and digital/analog audio de-embedding fromoneoutput.Fast switching in just 2-4 seconds makes it stand out from the ordinary matrix switcher. It offers flexible control via RS-232, IR, and Web-GUI, ensuring seamless operation across diverse scenarios.
- 4x2 HDMI 2.0 Matrix Switcher with 4 HDMI inputs and 2 HDMI outputs
- Supports 18Gbps bandwidth for 4K@60Hz 4:4:4 HDR
- Supports analog and digital audio de-embedding output.
- Supports 4K downscaling to 1080p.
- Controlled via front panel buttons, RS-232, IR, and GUI.
Video
| Video Input | 4x HDMI 2.0, up to 3840x2160@60Hz 4:4:4 |
| Video Output | 2x HDMI 2.0, up to 3840x2160@60Hz 4:4:4 |
| Audio Input | 4x HDMI |
| Audio Output | 1x SPDIF, for digital audio output 1x 5-pin L/R, for analog audio output |
Analog Audio
| Audio Output | 1x 5-pin terminal connector, for balancedstereoL/R audio. |
| Frequency Response | 20 Hz to 20 kHz, ±1dB |
| Max output level | 2 ± 0.1Vrms |
| THD+N | < 0.05%, 20Hz - 20kHz |
| Signal-to-Noise Ratio (SNR) | > 80dB |
