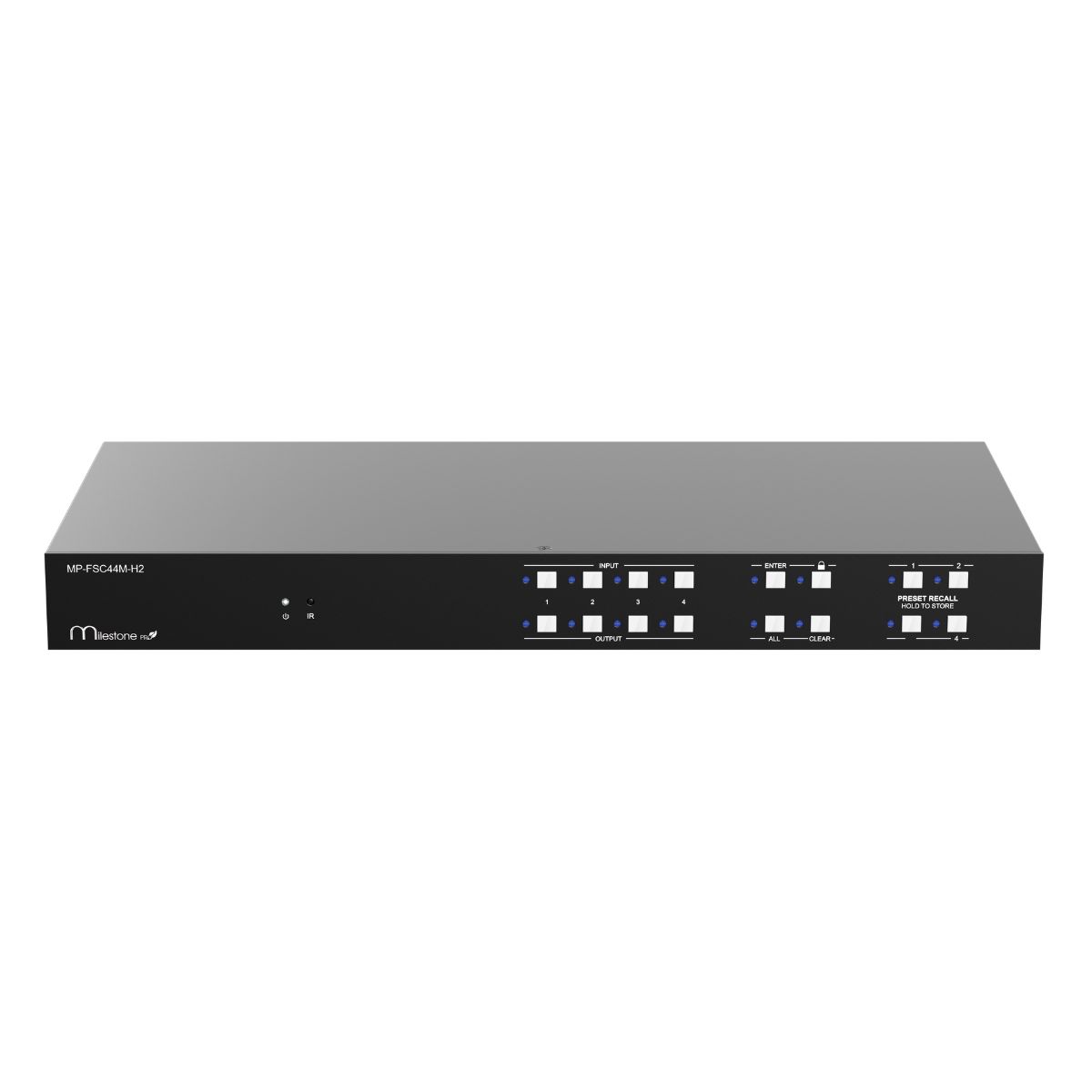

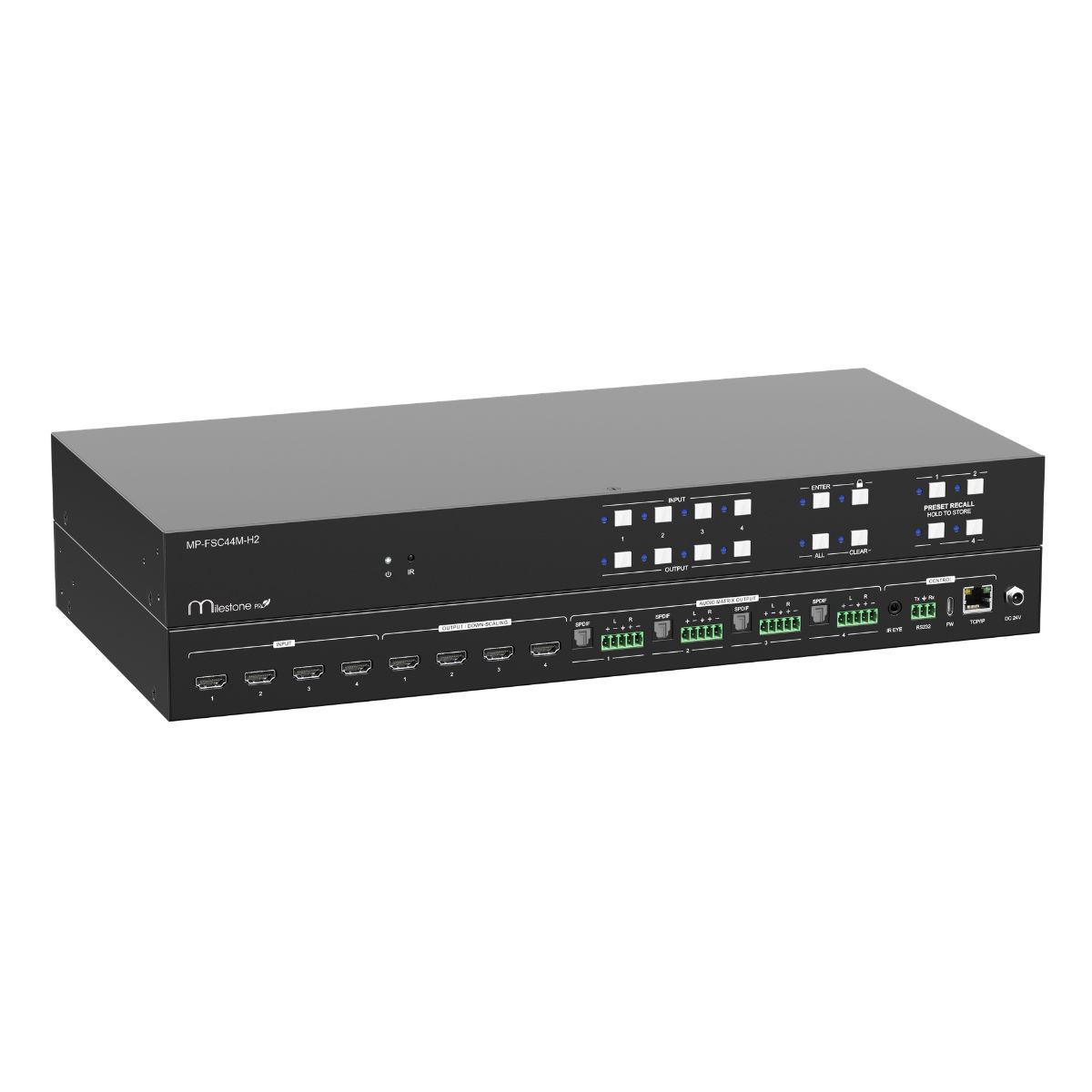

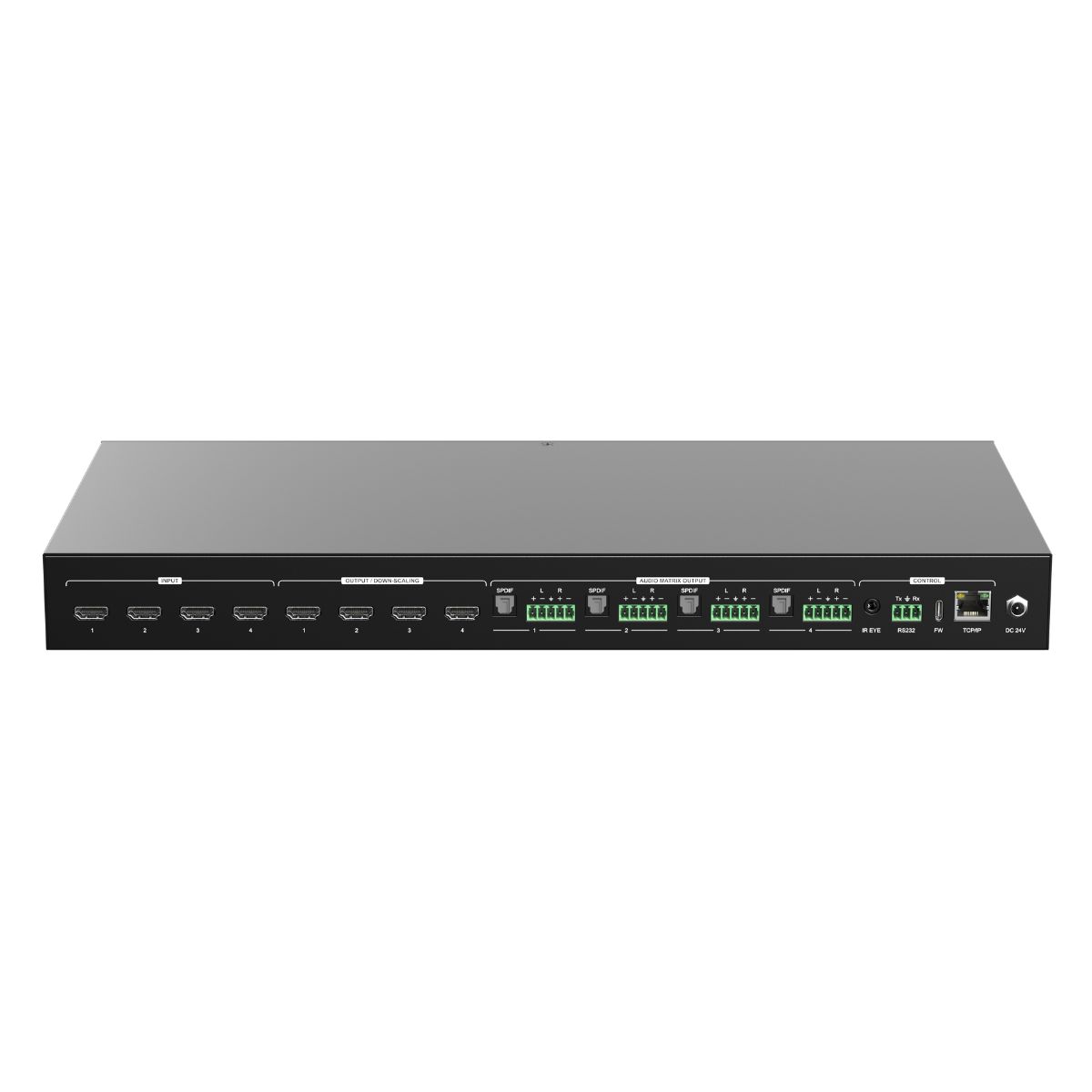

MP-FSC44M-H2
The MP-FSC44M-H2 is a 4x4 HDMI matrix switcher that supports signalsupto4K@60Hz in 4:4:4 resolution. It features audio de-embedding, separating audio from the HDMI signal for independent audio and video outputs
- 4x4 fast matrix switching up to 2-4 seconds.
- Video up to 18Gbps 4K@60 4:4:4.
- Supports audio de-embedded for all outputs.
- Output 1/2 supports automatic downscaling.
- Supports CEC control for source & sink.
- Built-in EDID, EDID learning, and custom EDID.
- Control via front panel buttons, IR, RS-232, or TCP/IP
Video Input
| Connector | 4x HDMI Type A |
| Version | HDMI 2.0 |
| Resolution | Up to 4K@60Hz 4:4:4 |
| Audio | LPCM 7.1 audio, Dolby Atmos®, Dolby®TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD®MasterAudio™ |
| HDCP | HDCP 2.2 and backward compatibility |
