MP-HD-44A-E KIT

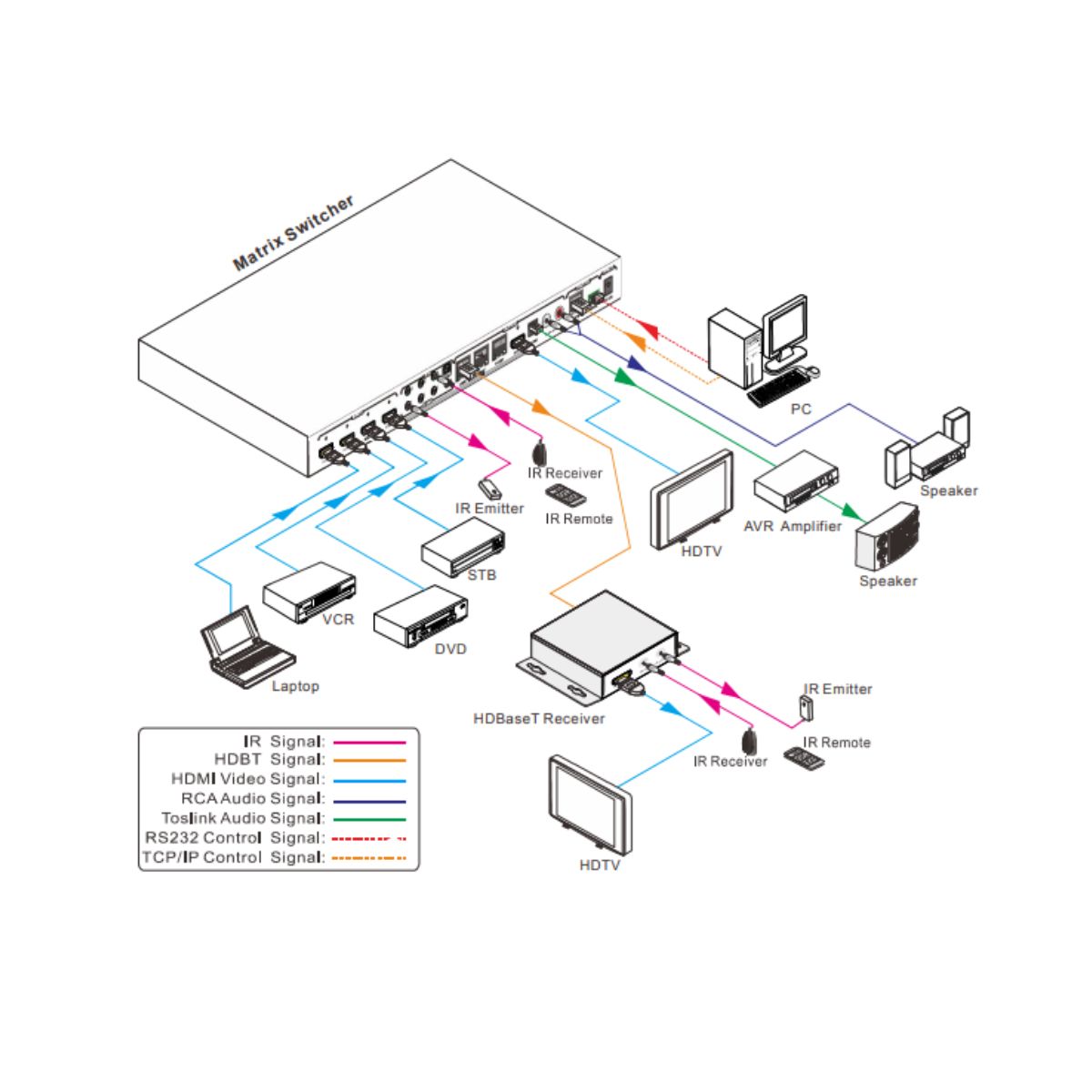

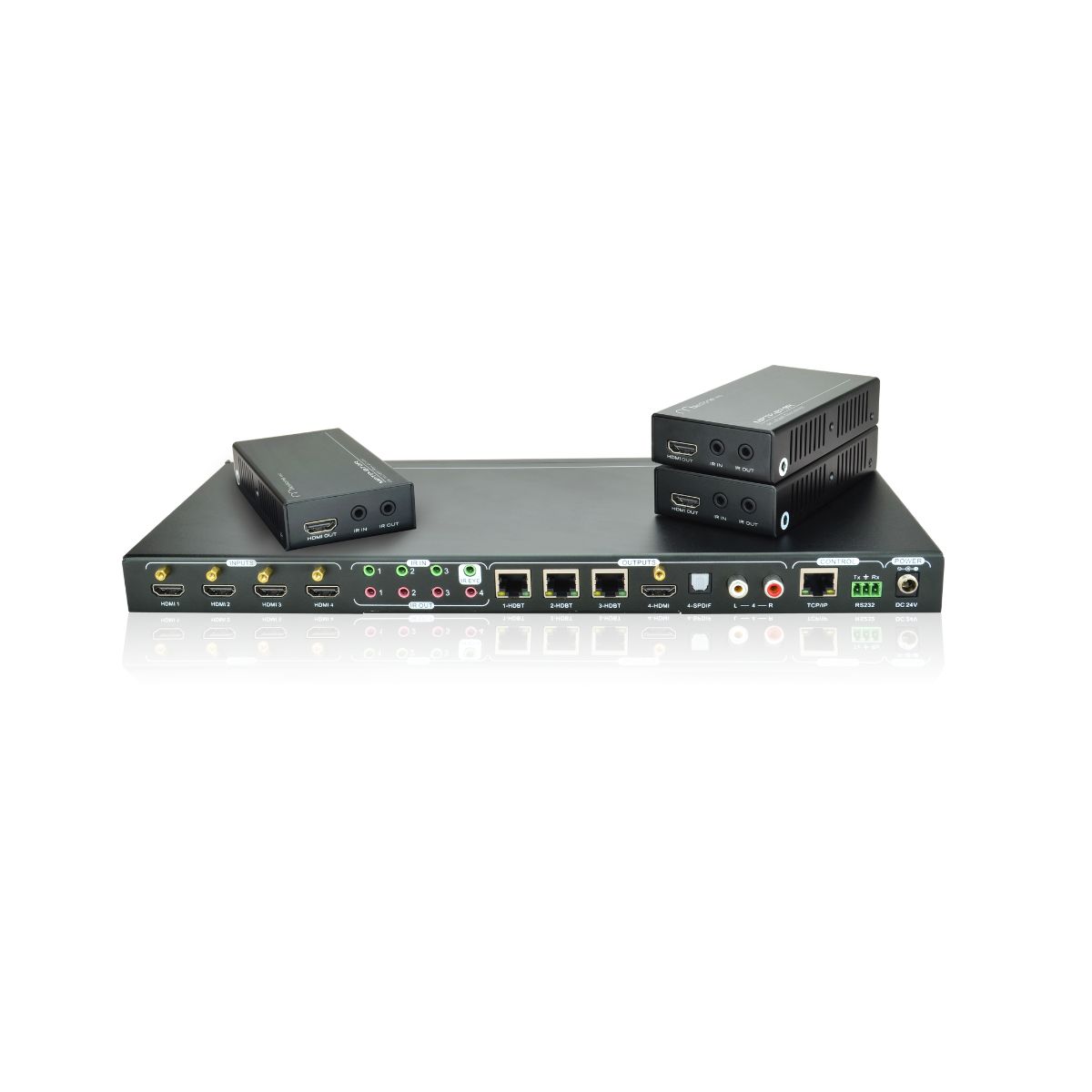

MP-HD-44A-E Kit is a professional 4K HDBaseT Home Distribution Hub Kit, which Consists of a 4K HDBaseT Matrix Switcher, 3 HDBaseT Receivers, and accessories. The 4K HDBaseT Matrix Switcher is a professional 4x4 HDBaseT Matrix Switcher that consists of the following inputs and outputs: 4 HDMI IN (4kx2K@60Hz signal at max), 3 IR IN, 1 IR EYE, 4 IR OUT, 3 HDBaseT OUT, 1 HDMI OUT, 1 SPDIF OUT, 1 L&R RCA OUT, and TCP/IP, RS232 control port via Phoenix connector.
- SupportHDMI1.4 & HDCP2.2, and compliant with lower standards, capable of transmitting 4Kx2K@60Hz 4:2:0 & 1080p 3D
- Support manual HDCP management and auto-detecting
- Transmit 4Kx2K signal for 8m via HDMI port, 40m via HDBT port
- Audio source selectable via RS232 command
- 3 HDBaseT outputs, distances up to 70m at 1080p and 40m at 4Kx2K on a single CAT5e/6 cable can be achieved.
- The HDBaseT Receivers are powered by the matrix switcher 12VDC by PoC technology
- LED indicators show real-time switching status.
- Controllable via front panel, RS232, IR and TCP/IP
- Support bi-directional IR& RS232 control
- Built-in GUI for TCP/IP control
- Powerful EDID management
Video Input
| Input | 4HDMI |
| Input Connector | Female HDMI |
| Input Level | T.M.D.S. 2.9V~3.3V |
| Input Impedance | 100Ω (Differential) |
| HDMI Standard | Support HDMI1.4&HDCP2.2 and is backward compatible with all previous standards. |
Video Output
| Output | 1 HDMI – 3 HDbaseT |
| Output Connector | Female HDMI Female RJ45(with LED indicators) |
| Output Level | T.M.D.S. 2.9V~3.3V |
| Output Impedance | 100Ω (DifferentiSupport HDMI1.4&HDCP1.4 and is backward compatible with all previous standards.al) |
| HDMI Standard | Support HDMI1.4&HDCP1.4 and is backward compatible with all previous standards. |
