MP-HD-88A-E KIT

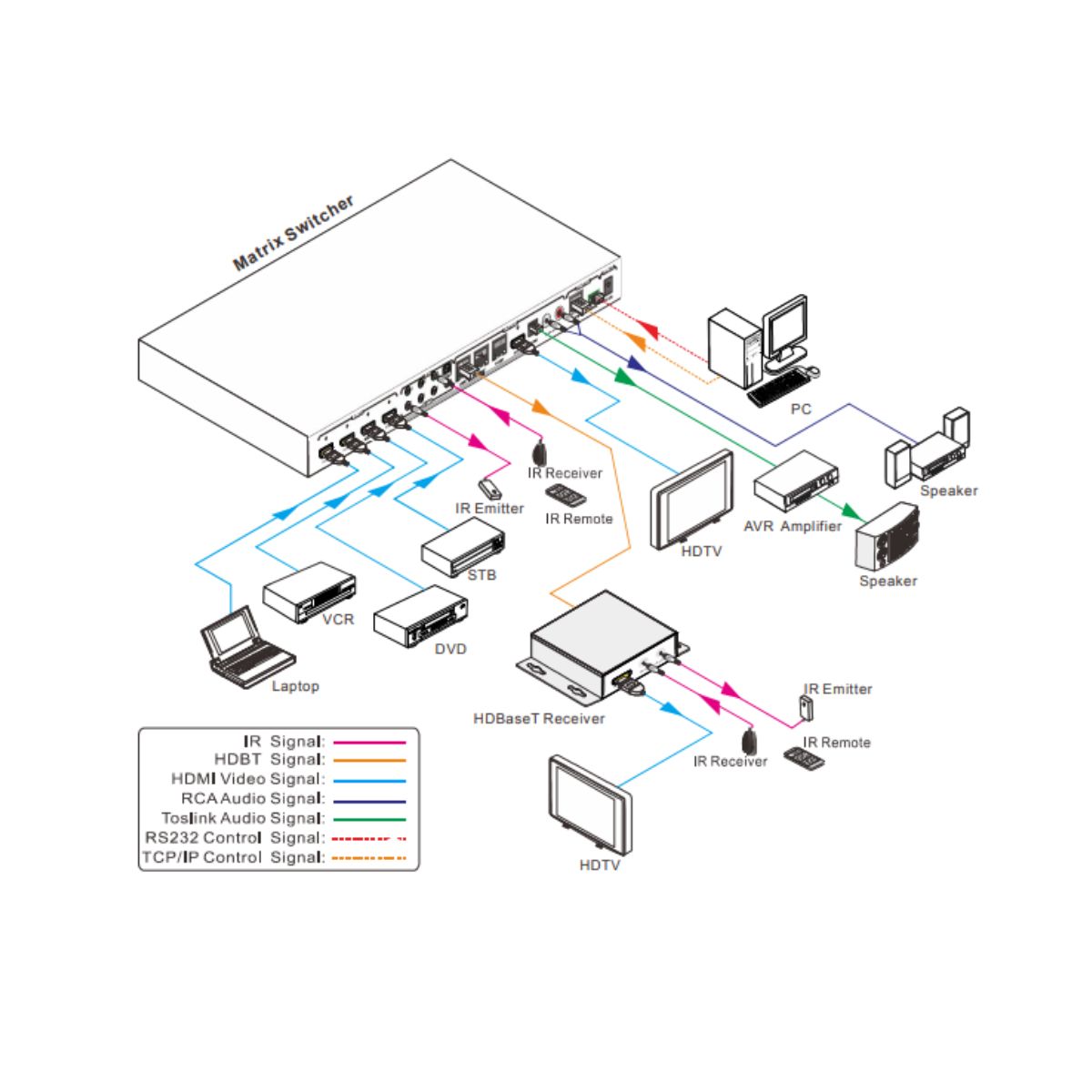

This Kit is a professional 4K HDBaseT Home Distribution Hub Kit, which consists of a 4K HDBaseT Matrix Switcher, 7 HDBaseT Receivers and accessories. The 4K HDBaseT Matrix Switcher is a professional 8x8 HDBaseT Matrix Switcher that consists of the following inputs and outputs, 8 HDMI IN (4kx2K@60Hz signal at max), 7 IR IN, 1 IR EYE, 8 IR OUT, 1 IR ALL, 7 HDBaseT OUT, 1 HDMI OUT, 1 SPDIF OUT, 1 L&R RCA OUT, and TCP/IP, RS232 control port via phoenix connector. The receiver is an HDBaseT Receiver that consists of the following inputs and outputs, 1 HDBaseT IN, 1 IR IN, 1 IR OUT, and HDMI OUT. The receiver is powered directly by the Matrix Switcher.

Contact to Seller
  • HDBaseT Matrix Switcher that features 7 HDBaseT outputs and 1 HDMI output
  • Supports HDCP 2.2, and is backwards compatible with previous versions of HDCP and HDMI
  • Transmits 4Kx2K @ 60Hz 4:2:0 up to 26 ft. (8m) via HDMI port and 131 ft. (40m) via HDBaseT port
  • 7 HDBaseT outputs with distances up to 230 ft. (70m) at 1080p and 131 ft. (40m) at 4Kx2K on a single Cat5e/6 cable
  • HDBaseT Receivers are powered by the matrix using PoC technology
  • LED indicators show real-time switching status
  • Controllable via front panel, RS232, IR and TCP/IP
  • Built-in GUI for TCP/IP control and setup
  • Powerful EDID management
  • Support CEC to control far-end display devices via RS232 commands
Download Product catalog

Video Input

Input 8 HDMI
Input Connector Female HDMI
Input Level T.M.D.S. 2.9V~3.3V
Input Impedance 100Ω (Differential)
HDMI Standard Support 4K@60 4:2:0 & HDCP2.2 and is backward compatible with all previous standards.

Video Output

Output 1 HDMI
Output Connector Female HDMI Female RJ45(with LED indicators)
Output Level T.M.D.S. 2.9V~3.3V
Output Impedance 100Ω (Differential)
HDMI Standard Support 4K@60 4:2:0 & HDCP1.4 and is backward compatible with all previous standards.
