MP-HD-GEN

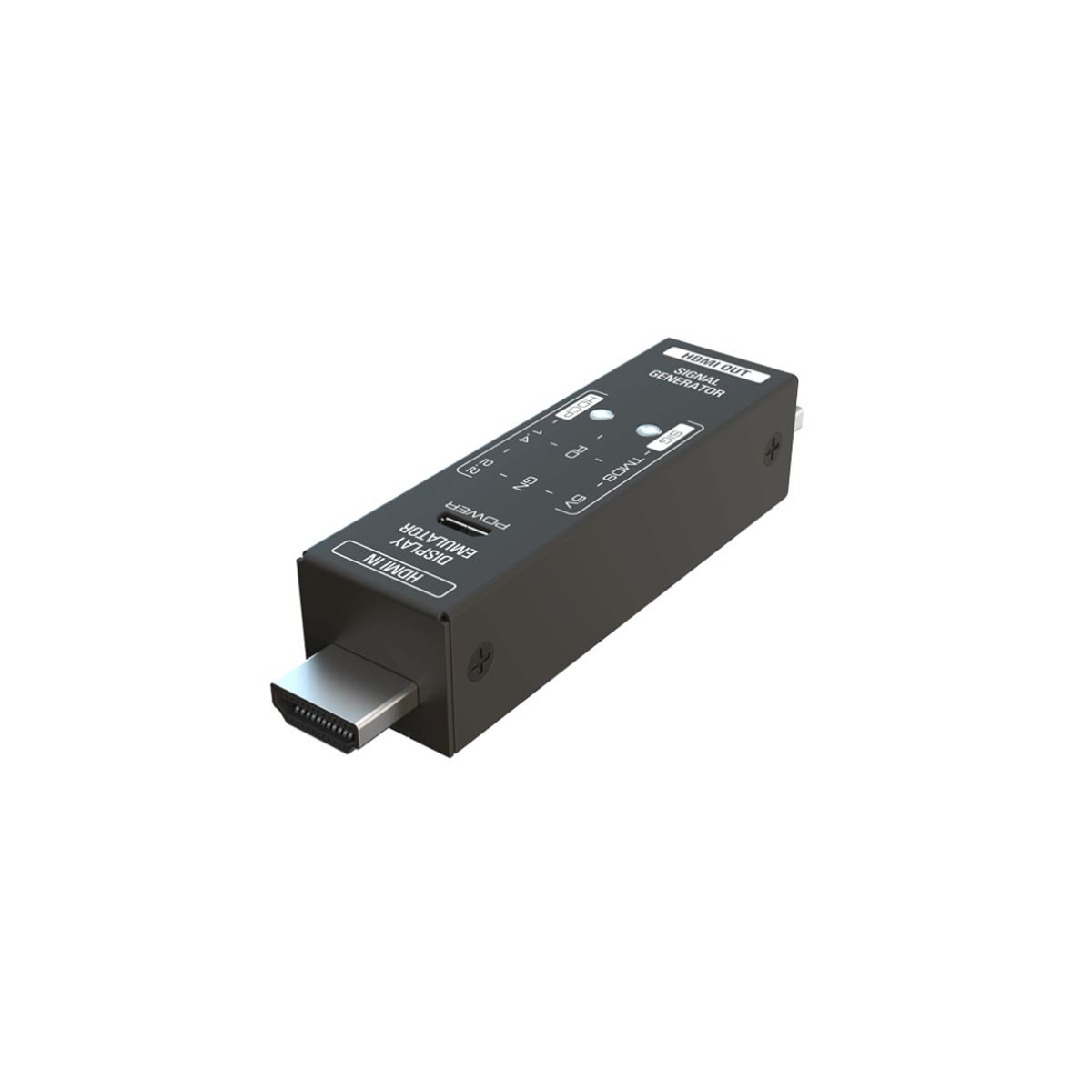

The MP-HD-GEN is a portable mini HDMI signal generator and display emulator (signal analyzer), combining two functions into a compact chassis. This is very useful for AV installers or testers. When working as a signal generator, it can generate 4 signals, max resolution up to 4K@60Hz, 4:4:4, and can analyze the HDCP content; there is a 4-pin DIP switcher to control this; when working as a display emulator, it can also analyze the HDCP content and signal status (5V, TMDS). The LEDs will show the signal or HDCP status

Contact to Seller

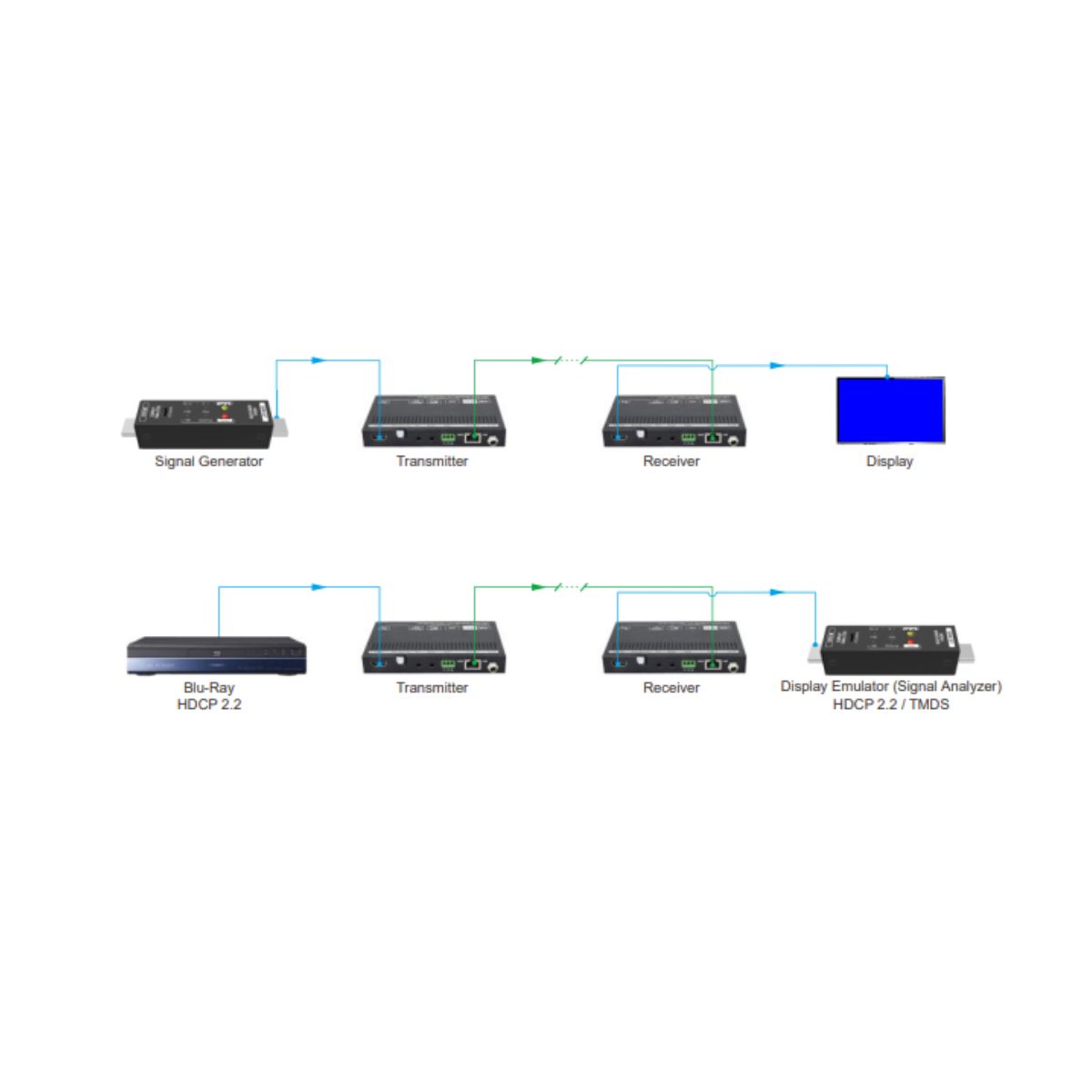

  • Used as an HDMI signal generator or display emulator (signal analyzer)

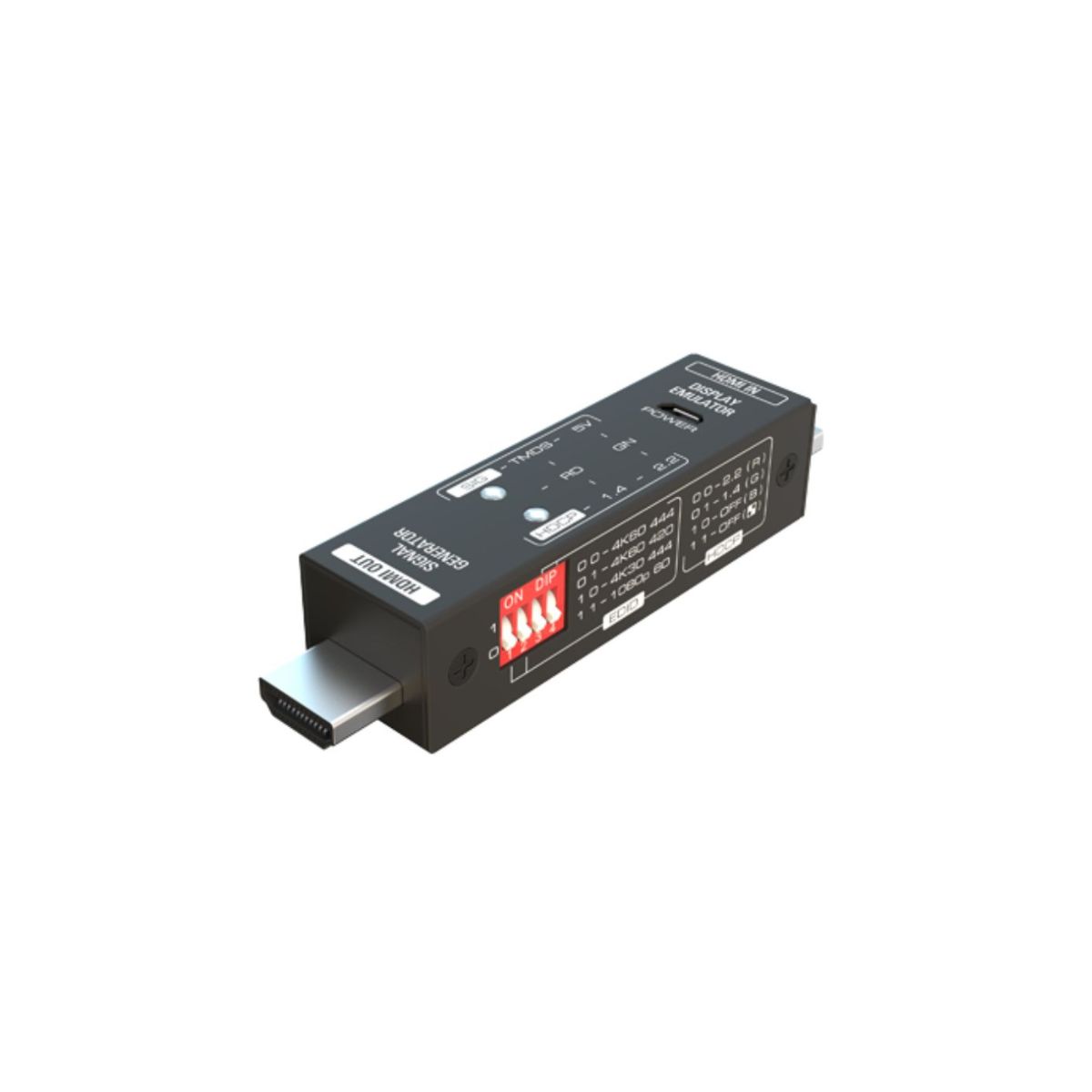

  • Provides a 4-pin DIP switch for setting video resolution and HDCP content
  • Supports 4K@60Hz 4:4:4, 4K@60Hz 4:2:0, 4K@30Hz 4:4:4, or 1080p@60Hz video signal output
  • Supports HDCP OFF, HDCP 1.4, or HDCP 2.2 output
  • Supports four different test patterns for HDCP version
  • LEDs show signal and HDCP status
Download Product catalog
Input (1) HDMI IN
Input Connector (1) 19-pin type-A male HDMI
Output (1) HDMI OUT
Output Connector (1) 19-pin type-A male HDMI
Control (1) 4-pin DIP switch
General
Input Video Resolution Up to 4K@60Hz 4:4:4 8bit
Output Video Resolution Supports 4K@60Hz 4:4:4, 4K@60Hz 4:2:0, 4K@30Hz 4:4:4, and 1080p@60Hz to be selected.
HDMI Input Audio Format Supports LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTSHD® Master Audio™ pass-through.
HDMI Output Audio Format PCM 2CH
HDMI Version 2.0
HDCP Content HDCP Content
Power Supply 5VDC 1A (USB power cord)
Power Consumption 2W (Max)
Operation Temperature -5 to +55℃ (+23° to +131°F)
Storage Temperature -25 to +70℃ (-13° to +158°F)
Relative Humidity 10% to 90%, Non-condensing
