MP-IP200E&D

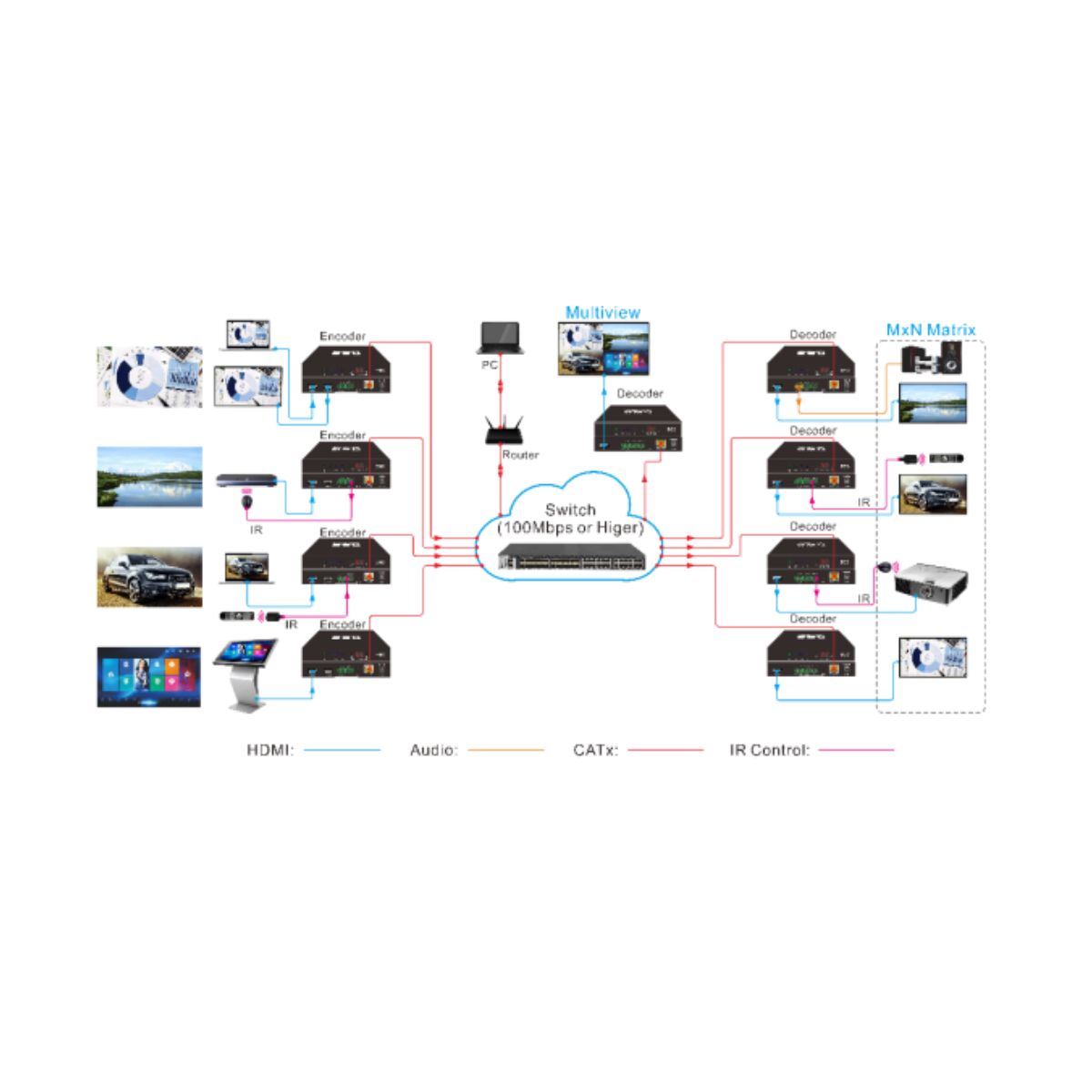

The MP-IP200 is an advanced IP Streaming Encoder/Decoder that uses H.264 or H.265 compression technology to extend HDMI video, IR, and RS232 control signals over an IP network. It works with a control PC (Wake-on-LAN) and a network switch with a transmission rate of 100Mbps or higher to provide flexible system control. The MP-IP200 supports 1080p HDMI video switching, live video preview, audio de-embedding, IR and RS232 transmission, and PoE. The integrated DVSTool control software combines all functions into a single platform, enabling convenient and centralized management of the IP streaming system.

Contact to Seller
  • Supports H.264 and H.265 encoding and decoding.
  • Adopts advanced universal coding technology
  • High-definition picture quality transmission over an IP network.
  • Supports unicast and multicast switching
  • Large-scale application under a 100M network.
  • Support various audio and video scheduling controls
  • Rich interfaces, including RS232, IO, IR, network, etc.
  • Dual power supply mode, standard DC interface, and IEEE802.3at PoE
Download Product catalog

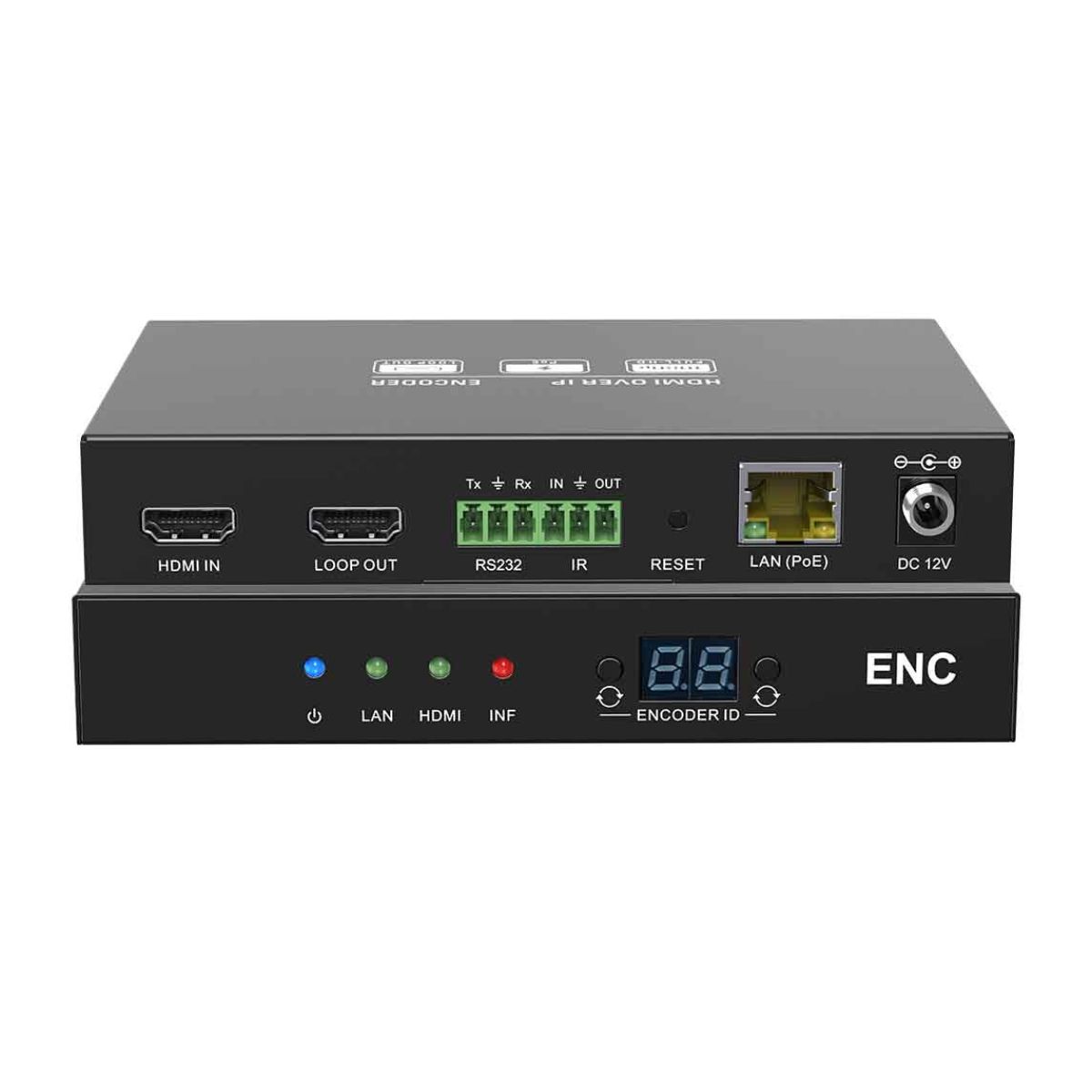

MP-IP200E
Video Input (1) HDMI In
Video Input Connector (1) Type-A female HDMI
HDMI Input Resolution Up to 4K@60Hz 4:4:4
Video Output (1) HDMI Out
Video Output Connector (1) Type-A female HDMI
HDMI Output Resolution Up to 4K@60Hz 4:4:4
Contro (1) RS232, (1) IR, (1) LAN (PoE)
Control Connector (1) 3-pin terminal block, (1) 3-pin terminal block, (1) RJ45
MP-IP200D
Video Output (1) HDMI Out
Video Output Connector (1) Type-A female HDMI
HDMI Output Resolution Up to 1080p@60Hz 444
Audio Output (1) Audio Out (L+R)
Audio Output Connector (1) 3-pin terminal block
Control (1) RS232, (1) IR, (1) LAN (PoE
Control Connector (1) 3-pin terminal block, (1) 3-pin terminal block, (1) RJ45
General
Video Encoding Standard H.265
CAT-5E Cable Length Up to 180 meters
External Power Supply 12V DC 1A; PoE supported.
Power Consumption Encoder:5W (Max); Decoder:2W (Max)
Operation Temperature -5℃ ~ +55℃
Storage Temperature -25℃ ~ +70℃
Relative Humidity 10%-90%
Dimension (W*H*D) 150.0mm x 25.0mm x 100.0mm
Net Weight Encoder:355g, Decoder: 355g
